Summary of Contents for Masser EXCALIPER HC

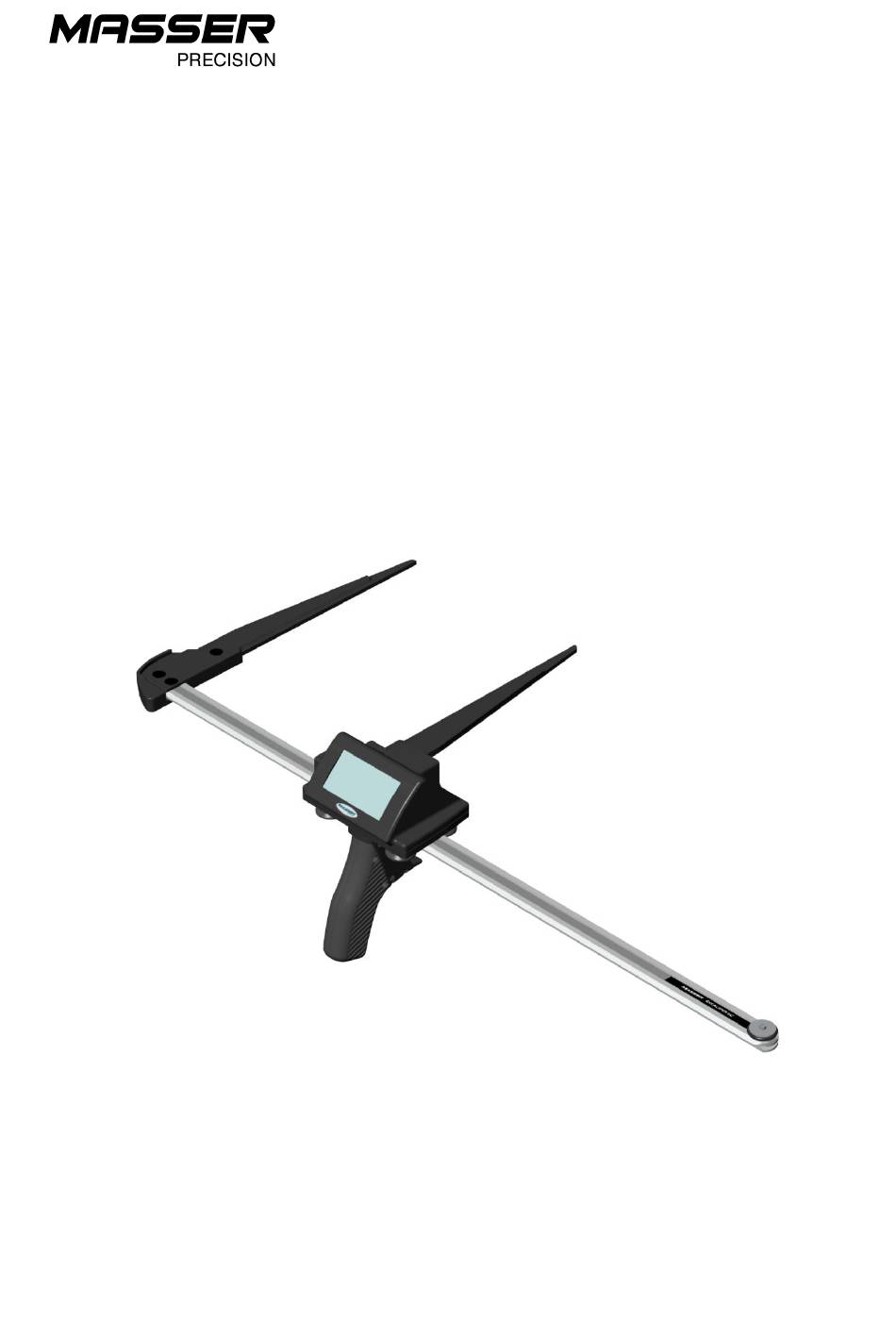

- Page 1 MASSER EXCALIPER HC USER MANUAL V1.0 Masser Oy Tel. +358 400 904 500 BID No 0665142-9 Norvatie 4 masser@masser.fi VAT No. FI06651429 FI-96910 Rovaniemi, Finland www.masser.fi Domicile Rovaniemi...
-
Page 2: Table Of Contents
Table of contents 1. INTRODUCTION ....................3 2. DEVICE ........................3 2.1 USE OF THE DEVICE ..................4 2.2 MEASURING OF DIAMETER ................4 2.3 CALIBRATING THE CALIPER ................4 2.4 CONNECTIONS ....................5 2.5 DOCKING STATION .................... 6 3. MAINTENANCE ..................... 7 3.1 MAIN BATTERIES .................... -
Page 3: Introduction

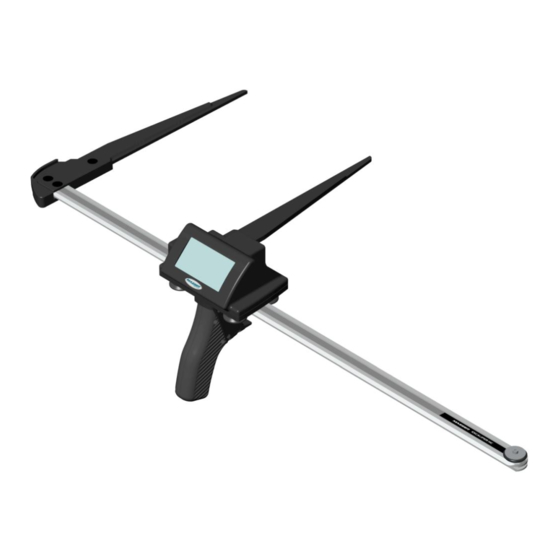

1. INTRODUCTION This document is a User’s Manual for the Masser Excaliper HC computer caliper to be used with a tailored software package. (separate software manual) 2. DEVICE 1 movable arm 2 fixed arm 3 TOGGLE switch 4 display 5 communication port, docking station... -
Page 4: Use Of The Device
2.1 USE OF THE DEVICE Excaliper is switched on by pressing the ENTER – switch. Menus are scrolled by moving the slide and the selection is done with ENTER. Numbers and selections from the list can be entered by TOGGLE switch and accepted by ENTER. -
Page 5: Connections
If the caliper finds a negative diameter reading, an error notification is shown on the display: "Calibrating Error" (the measuring jaws were not together when switching on) 1. Switch the caliper off. 2. Bring the measuring arms together. 3. Switch the caliper on. 4. -
Page 6: Docking Station
2.5 DOCKING STATION Connect the caliper to docking station according to following picture. 1. Insert the caliper slide to upper holder. 2. Install the caliper to docking station by pressing the caliper gently. 3. Remove the caliper from docking station by pressing the button in docking station... -
Page 7: Maintenance
3. MAINTENANCE 3.1 MAIN BATTERIES Masser Excaliper is operated by rechargeable NiCd battery which has capacity for a full day work. If the capacity of the battery wears down by the age, contact service and you can order a replacement battery pack (spare part number: 14737) The caliper charges automatically when placed in the docking station and the harvester is switched on (a separate AC charger is also available for the caliper). -
Page 8: Seals
3.3 SEALS Masser calipers are designed to withstand moisture and water. All devices are tested pressurized under the water before delivery. To maintain the waterproofness user should check periodically that the seals are not damaged in use. ENTER – button has a rubber boot which can be changed by the user. (Spare part no: 13798 Rubber Boot, including a special key for removing the old boot and fixing the new). -
Page 9: Reset
or magnetized tools…) Also sharp knocks directly to the magnetic scale or bending the scale can destroy it. 3.7 RESET In case you do not know the state of the caliper and it does not switch off, open the cap of the data transfer port and connect pins 1 and 5 together with a piece of metal (straightened paper clip). -
Page 10: Warranty
Hardware Limited Warranty MASSER products and accessories are warranted for a period of (1) one year starting from the date of delivery. Masser Oy warrants that this hardware product will perform substantially in accordance with published specifications and be substantially free of defects in material and workmanship. -
Page 11: Contact Information
6. CONTACT INFORMATION MASSER OY Norvatie 4 FI-96910 ROVANIEMI FINLAND Tel + 358 400 904 500 Fax + 358 16 282 554 e-mail: masser@masser.fi www.masser.fi...
