KT84 TORTUGA
RUDDER KIT
Please read this user manual carefully, it contains instructions for the correct assembly of this SAB Tortuga upgrade.
Please refer to the website www.sabavio.com for updates and other important informations. Thank You.
This upgrade need 2 micro servos with height 8-10mm. We suggest: MKS DS75K-N or KST X08Hv5.0.
Use the rudder channel for Connect the 2 servos.
Preparation for the servos

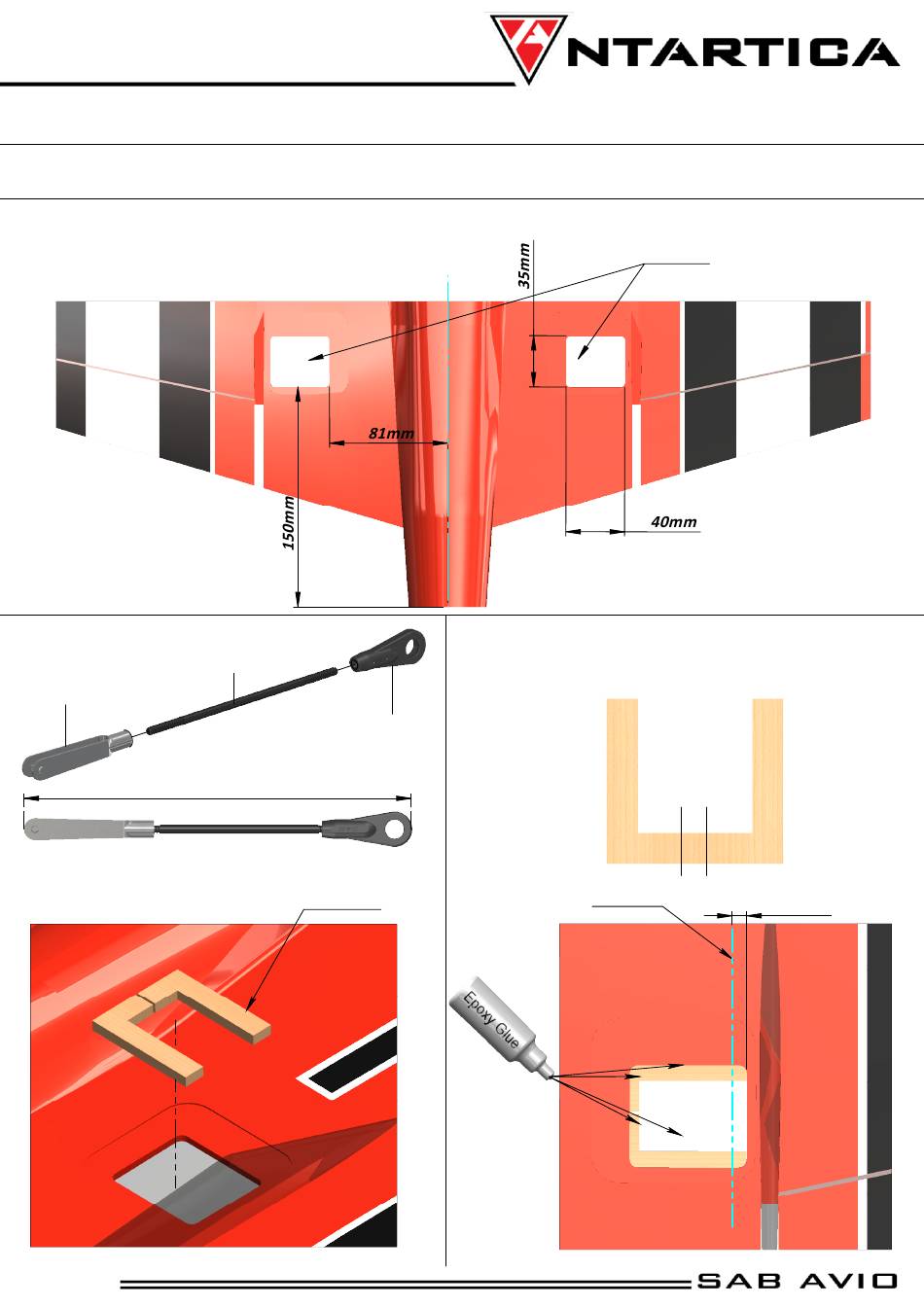

Use a Dremmel drill for cut the fuselage slot 35x40mm.
Follow the dimension in the picture
Servo Linkage Assembly
(S0039-S)
Linkage Rod M2x56mm
Clevis
Approx 90mm
Rudder Servo Mount Assembly
Page 1
...x2
Plastic Ball Linkage
...x2
Servo Mount
S0040_rev01
Note:
To adapt the different servos on the market, it is necessary
to cut the wood support optimizing your servo dimension
Use epoxy to glue in the servo mount.
Linkage line
Cut Zone
5mm
