Summary of Contents for A-Neuvideo ANI-8WP

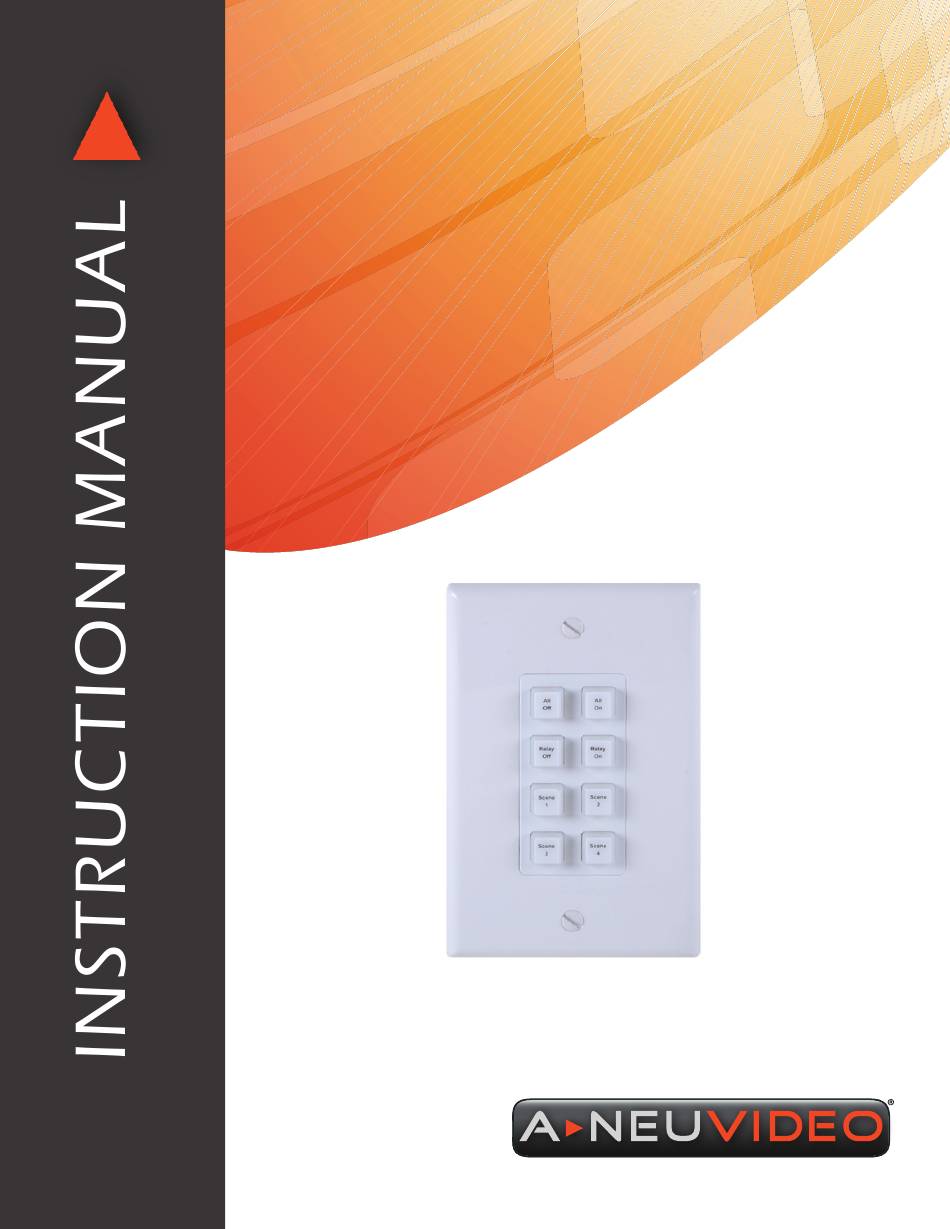

- Page 1 ANI-8WP (8) Button Wall Plate Control Keypad A-NeuVideo.com Frisco, Texas 75034 (469) 277-7606 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
CONNECTION DIAGRAM ............15 DISCLAIMERS INTRODUCTION The ANI-8WP Wall-Plate Control System is a fantastic and useful The information in this manual has been carefully checked and design for system installers and smart home users. With (8) direct is believed to be accurate. We assume no responsibility for any... -
Page 4: Features & Specifications
NEUVIDEO FEATURES & SPECIFICATIONS FEATURES • (8) Macro buttons + (8) extra Macro programmable commands via WebGUI for up to 128 commands • (1) Relay Output for additional device control • Scheduling control for date/time specific events • Supports Key Pad, Telnet and WebGUI control •... -
Page 5: Front Panel
NEUVIDEO FRONT / Rear & SIDE PANEL FRONT PANEL 1~8 MACRO BUTTONS: Each buttons has (2) colors of LEDs with adjustable brightness (0~100%) and can accommodate up to (16) commands. 28 Preprinted Button Labels Included Rear / SIDE Panel RELAY OUT: Connect with a device that supports DC 0~24V/8A power or signal that supports a relay function. -
Page 6: Telnet Commands
NEUVIDEO Telnet Commands Telnet Commands COMMAND DESCRIPTION PARAMETER IPCONFIG Displays the current IP configure NONE SIPADDR XXX.XXX.XXX.XXX Sets ethernet IP address XXX=0~255 SNETMASK XXX.XXX.XXX.XXX Sets ethernet net mask XXX=0~255 SGATEWAY XXX.XXX.XXX.XXX Sets ethernet gateway XXX=0~255 SIPMODE N Sets ethernet IP mode N=STATIC/DHCP Shows unit firmware version NONE... -
Page 7: Programming
Click on “Find Devices” on the Network and a list of the devices connected to the “Control System” will show up. Note: The default IP setting is 192.168.1.50 and set the Static IP or DHCP via the IP mode of ANI-8WP-GUI_v2000. Click “Save” then “Reboot”... -
Page 8: Telnet Control
NEUVIDEO Programming Telnet Control Before attempting to use the Telnet control, please ensure that both the Matrix (via the ‘LAN /CONTROL’ port) and the PC/Laptop are connected to the same active networks. To access the Telnet control in Windows 7, click on the ‘Start’ menu and type “cmd” in the Search field then press ENTER. -
Page 9: Webgui Control
NEUVIDEO Programming WebGUI Control On a PC/Laptop that is connected to an active network system, open a web browser and type device’s IP address on the web address entry bar. A security page will appear prompting for a “Username” and “Password”, please key in “admin” for both to enter. Note: The Default IP setting is on Static with address at 192.168.1.50. - Page 10 NEUVIDEO Programming Click on Insert button/Add to insert commands. Commands can be set to control the Wall-Plate Control Box/SysCMD, other devices connected within the same Telnet system/Internet area and Relay devices connected through the Relay outputs of Wall-Plate Control Box with delay time.
-
Page 11: Extension Macro
NEUVIDEO Programming Commands set to control the Relay devices require to set the Port number. Click on “Save Change” to confirm the setting. Extension Macro Click on ‘Extension Macro’ to execute/edit up to (8) more Macro actions. A macro can have (16) commands, and if you need to save more than (16) commands to a macro, you can save some commands to an extension Macro and keep a command in Macro for “MACRO RUN X”... -
Page 12: Command Settings
NEUVIDEO Programming Command Settings Click on ‘Command Settings’ to insert new commands or delete commands. Commands under (128) characters including spaces can be built up to (128) commands, commands over (128) characters and under (512) characters including spaces can be built up to (32) commands in addition to (96) commands of (128) characters and under. Click on “Save Change”... -
Page 13: Key Settings
NEUVIDEO Programming KEY SETTINGS The Toggle function is when you press a button to execute one series of functions and then press it a second time to execute another series of functions. It is a new function and may not be in the manual. Below are the steps to enable this function. Turn the LED ON and OFF on the 3rd button for instance. -
Page 14: Schedule
NEUVIDEO Programming Schedule Click on ‘Schedule’ to set the executing time schedule of the Macro(s). ****Note**** The scheduling system will retain the last date and time set in memory for up to 48hrs after power loss. After 48hrs the system will reset the date and time automatically back to 2015/01/01 00:00:00. All other settings will remain. Click on “Edit”... -
Page 15: Network Settings
NEUVIDEO Programming Click on “Edit” from the “Once” column to set the macro command(s) to be activated on a set time only. Network Settings Click on ‘Network Settings’ to reset the IP, Netmask or Gateway address. -
Page 16: System Settings
NEUVIDEO Programming System Settings Click on ‘System Settings’ to reset the WebGUI login password and timeout settings and save or download the Macro settings. Reset to Default allows the IP and login ID & password to be reset back to factory default. Time Settings Click on ‘Time Settings’... -
Page 17: Connection Diagram
NEUVIDEO CONNECTION DIAGRAM CONNECTION DIAGRAM... - Page 18 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 19 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 20 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
