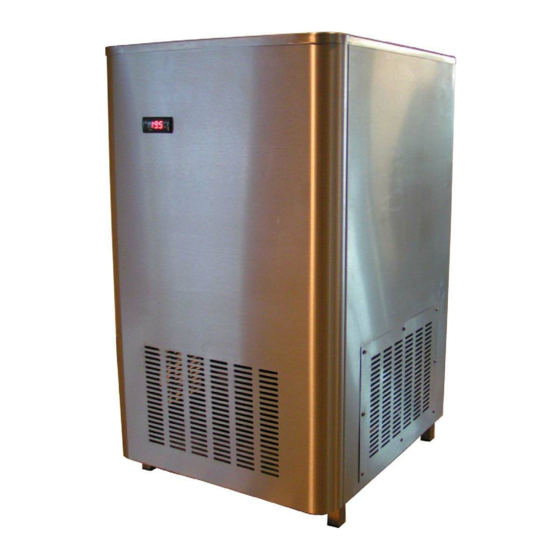

Summary of Contents for Makombi BKM 55

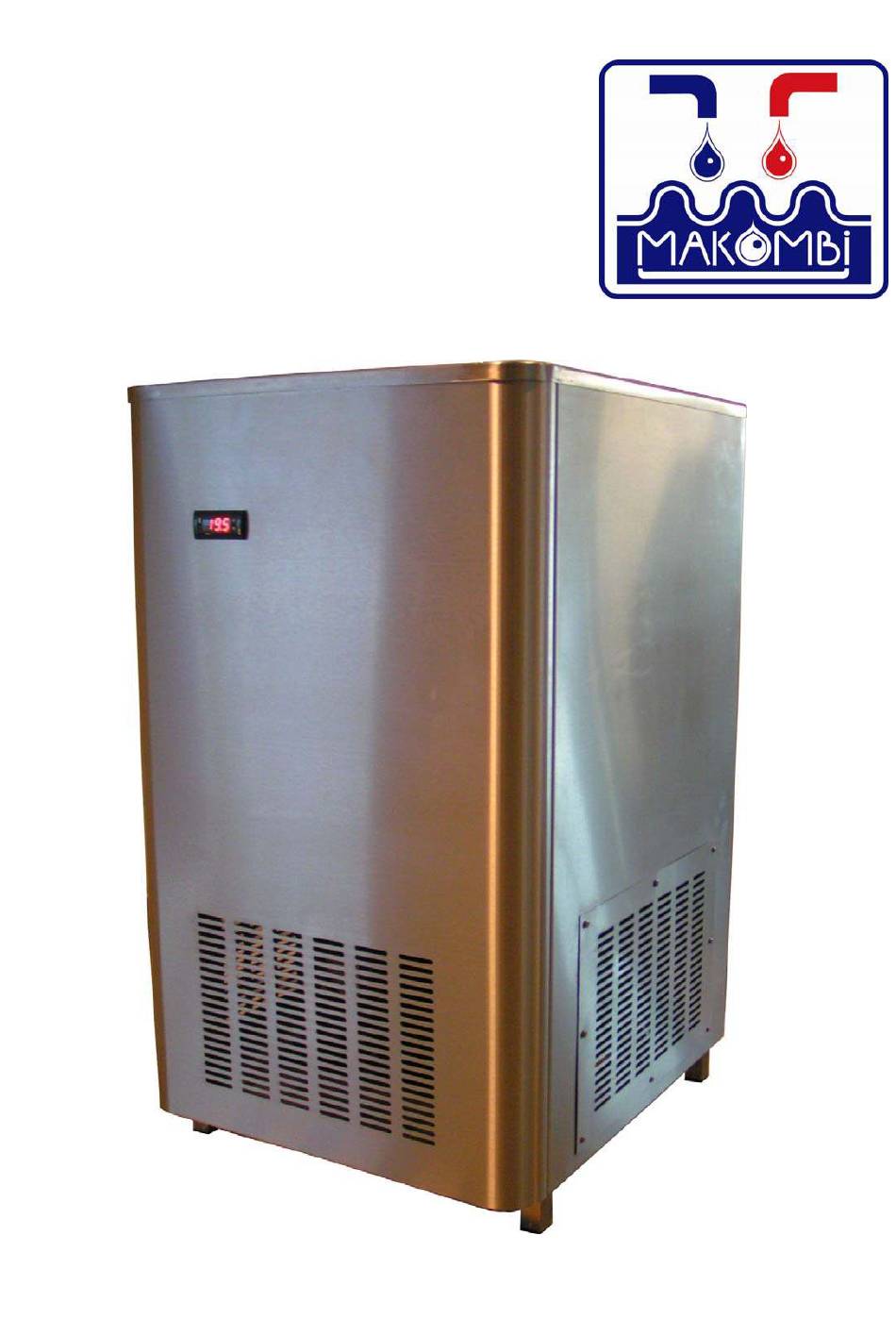

- Page 1 Instruction manual BKM 55-75-100...
- Page 2 Table of contents Table of contents............... Fout! Bladwijzer niet gedefinieerd.2 Productinformation........................3 Technical specifications ......................3 Makombi BKM 55..........................3 Makombi BKM 75..........................3 Makombi BKM 100..........................3 Installation ..........................4 maintenance ................Fout! Bladwijzer niet gedefinieerd. Elektrical sketch ..............Fout! Bladwijzer niet gedefinieerd.
- Page 4 Installation • The chiller must be installed so that the suction and discharge of air can take place properly. Keep free space surrounding the chiller at least 10 cm • …………………………………………………………………… Nr. 6 page 5 Connect the ingoing water pipe •...
- Page 5 Parts list Thermostat Cooling coil Water coil Flow control (10 l/min) Temperature sensor (pt 100) Ingoing water connection with tap and flow back safety Overflow Outgoing water connection Power connection (230 or 110 V) Stainless steal casing Waterfan motor connection (230 V) Waterfan motor (230 V) Condenser Type plate with:...
-
Page 6: Wiring Diagram
Temperature display Display At the power up the unit shows “---” during 3 seconds approximately during which it performs a self check, then the current value according to the configuration set appears. If the SIM is different from 0 it’s possible to display the instantaneous value by pressing . - Page 7 Electrical diagram for agitator motor and temperature display (conversion from 110Volt to 220 Volt) Only on 110 volt units...
