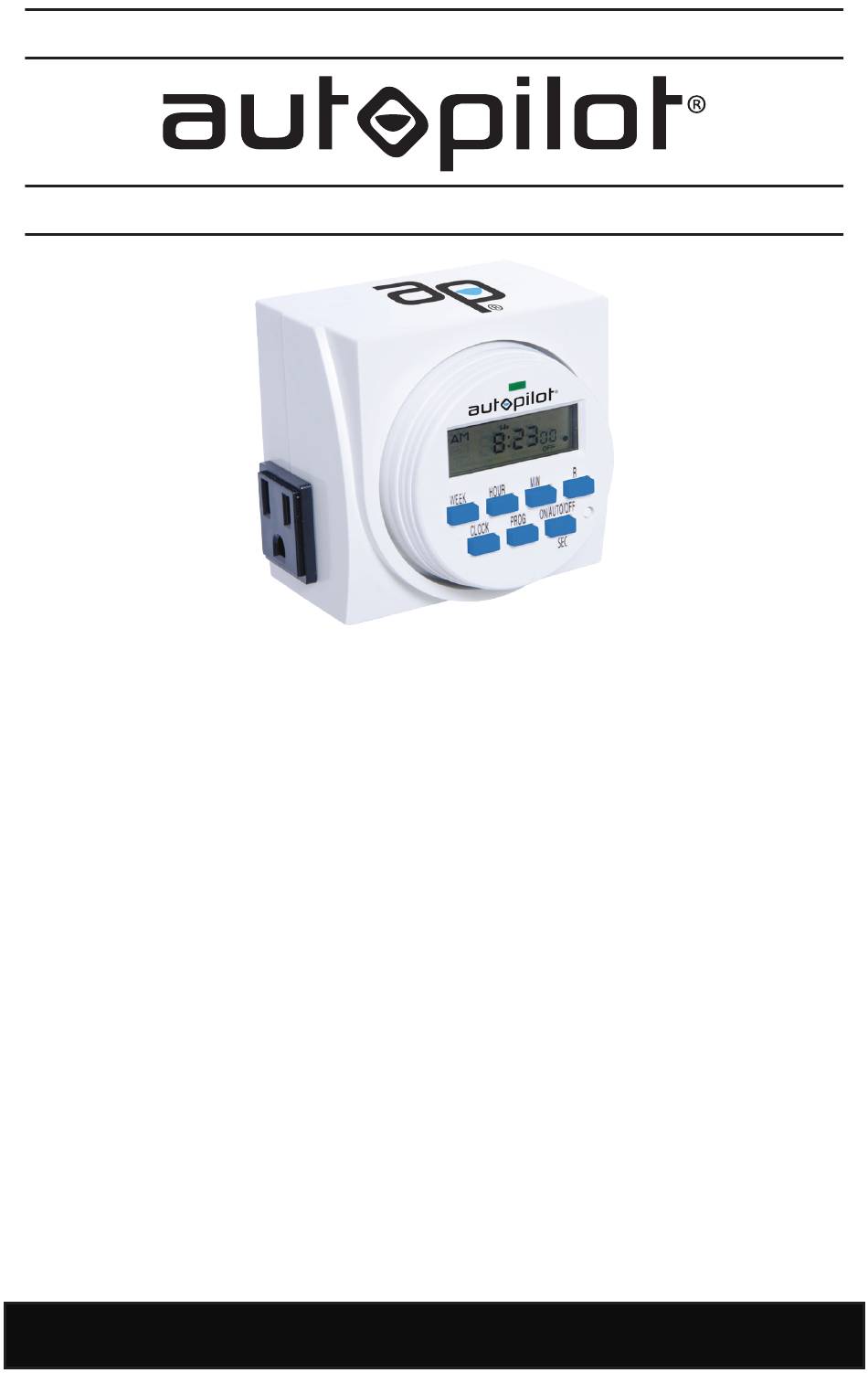

DUAL OUTLET DIGITAL 7-DAY TIMER
GET STARTED BY PRESSING THE RESET BUTTON

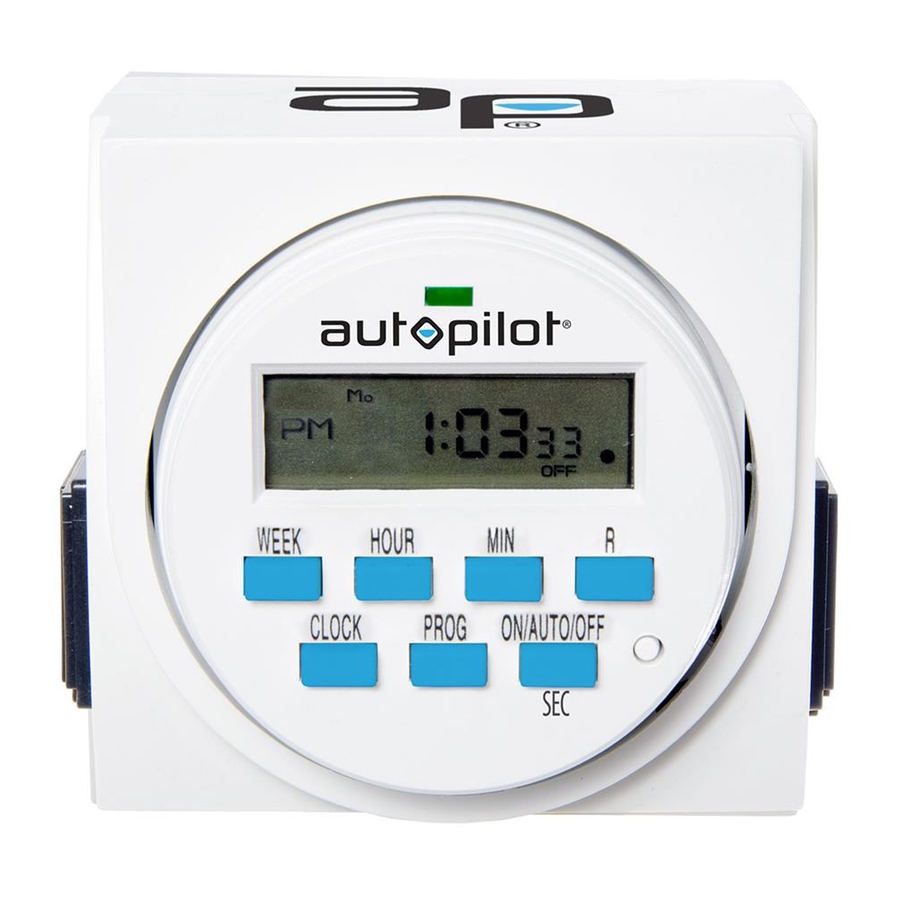

The reset button is the small round white recessed button on the right side of the timer face. Use a pointed
object to reach it in order to erase all previous programming.
NOTE: If you find no display on LCD, please plug timer into power to recharge for 5 minutes, then reset the
timer before setting the programs and current time.
SET THE CLOCK
HOUR: Press the clock button and simultaneously press the HOUR button until you arrive at the correct
hour. (Be aware of AM and PM hours.)
MIN: Again pressing the CLOCK button, simultaneously press the MIN button until you arrive at the
correct minute.
WEEK: Press the clock button and simultaneously press the WEEK button until you arrive at the current
day of the week.
PROGRAM YOUR SETTINGS
Each event is numbered and has a time to come on and a time to go off. You can set 1, 2, or up to 8 different
events using the PROG (program) button.
The PROG display will start at 1 ON. As you keep pressing the button, the display will cycle through all the
events: 1 ON, 1 OFF; 2 ON, 2 OFF; 3 ON, etc. up to 8 OFF.
For each event you must set WEEK, HOUR, MIN and SEC (the ON/AUTO/OFF button sets seconds in PROG
mode).
www.Hydrofarm.com
INSTRUCTIONS
TM01715D
