ImmersionRC 5.8GHz SpiroNET 13dBi flat patch antenna
Instruction manual
Specifications
Typical impedance at 5.8GHz
SWR
Gain
Polarization
Radiation pattern
Configuration
Dimensions (LxWxH)
Weight (Grams)
Connector
Fig 1.

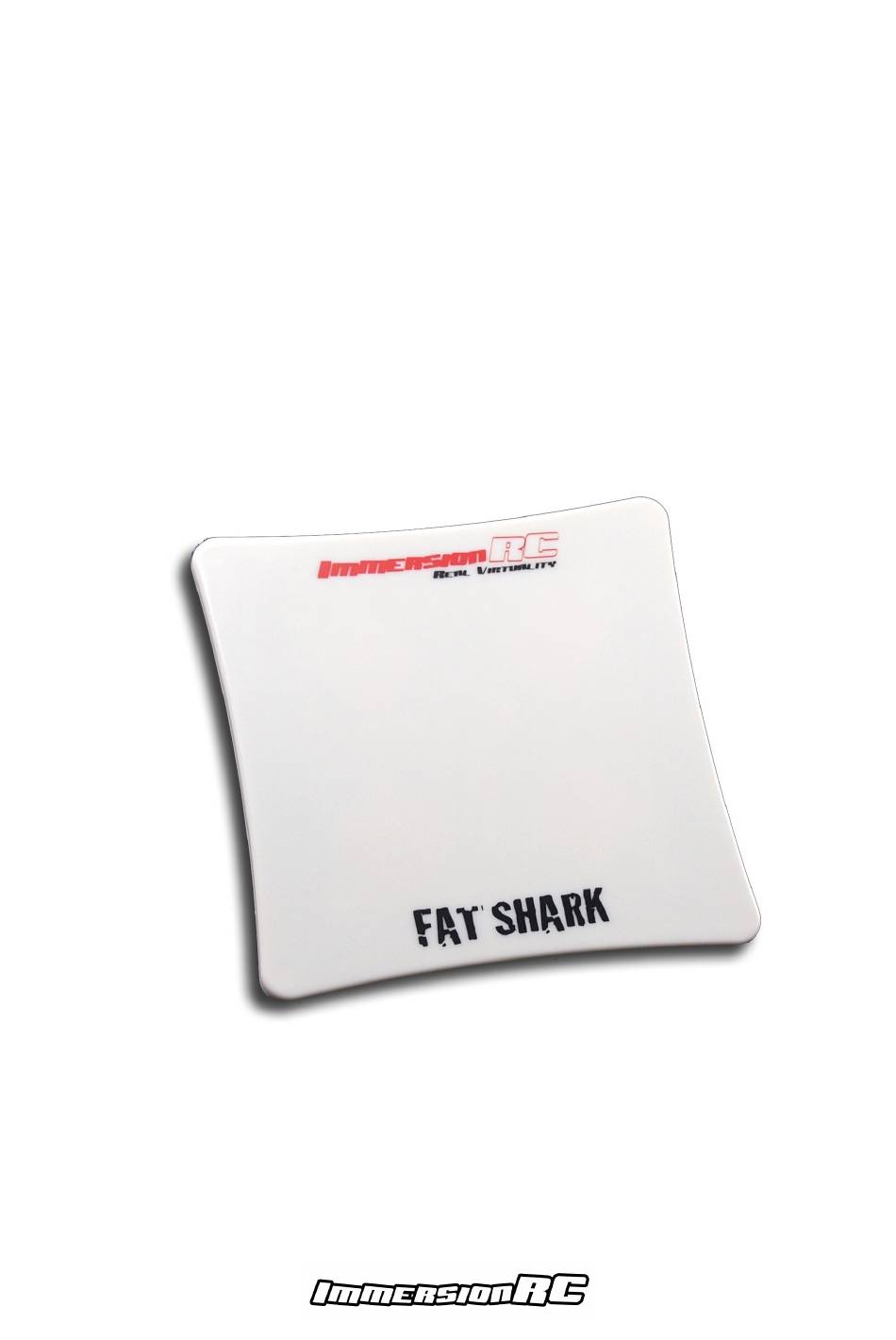

ImmersionRC 5.8GHz SpiroNET RHCP patch antenna.
www.immersionrc.com
>
50 Ohm
>
<1.35 at 5.8GHz
>
13dBic
>
Left- or Right-hand circular (LHCP, RHCP)
>
35-degrees vertical and horizontal
>
Multi-element, phased, patch antennas
>
95x95x10mm
>
52 grams
>
SMA male
info@immersionrc.com
1
Advertisement
Table of Contents
Summary of Contents for ImmersionRC 5.8GHz SpiroNET 13dBi
- Page 1 ImmersionRC 5.8GHz SpiroNET 13dBi flat patch antenna Instruction manual Specifications Typical impedance at 5.8GHz > 50 Ohm > <1.35 at 5.8GHz Gain > 13dBic Polarization > Left- or Right-hand circular (LHCP, RHCP) Radiation pattern > 35-degrees vertical and horizontal Configuration >...
- Page 2 Overview The ImmersionRC 5.8GHz SpiroNET 13dBi patch antenna was developed to offer a high gain alternative to its popular SpiroNET omni directional antennas. Using the ImmersionRC 5.8GHz SpiroNET 13dBi patch antenna directly on a pair of video goggles with built in 5.8GHz receiver, or mounted on a tripod, will easily triple to quadruple the range versus the SpiroNET omni directional antennas.
- Page 3 Package contents The ImmersionRC SpiroNET 13dBi patch antenna is shipped with the following items: 1pcs - ImmersionRC 5.8GHz SpiroNET 13dBi patch antenna. Directions on safety...
