Summary of Contents for Stavoklima AXI2 Series

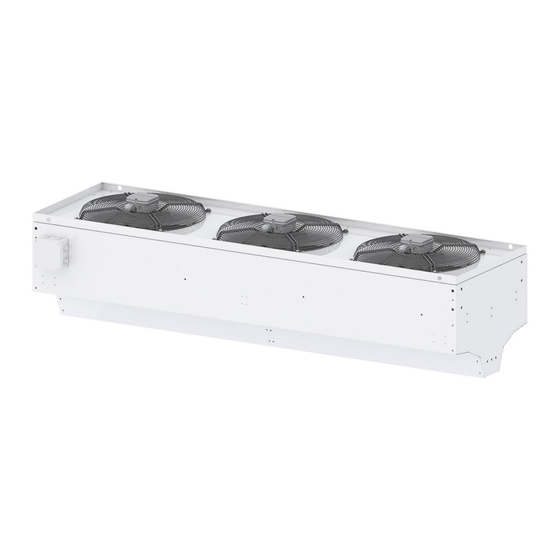

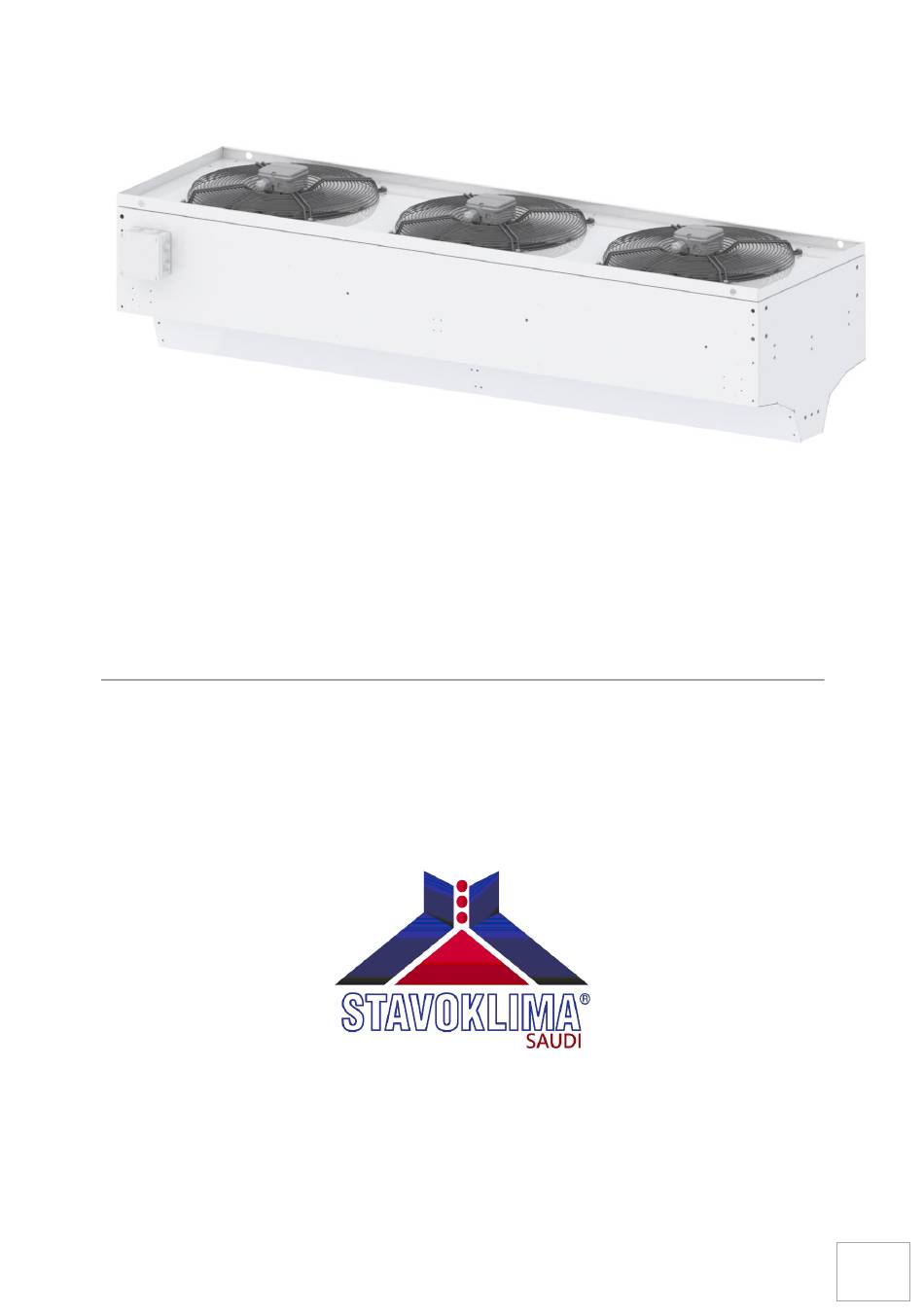

- Page 1 AXI1, AXI2, AXI3, AXI4 USER’S MANUAL Air Curtain AXI1, AXI2, AXI3, AXI4 USER'S MANUAL Email: sales@stavoklima.com.sa Tel: + 966 (011) 22 00 313 Fax: + 966 (011) 22 00 313 Ext. 116 www.stavoklima.com.sa STAVOKLIMA Saudi...
-
Page 2: Table Of Contents
Fan Speed Regulation..................... 39 ON/OFF Indicator ......................39 Door Contact ........................39 10.0 Maintenance ........................42 10.1 Fan maintenance ......................42 10.2 Maintenance schedule ....................43 11.0 Troubleshooting ......................... 44 12.0 Important Warnings ......................45 13.0 Contact Info ........................45 STAVOKLIMA Saudi... -
Page 3: Foreword
Customer’s satisfaction is our highest priority. The core component of every air curtain are the fans. Inside every Stavoklima unit you will find long-lasting maintenance-free fans from the World fan industry leader – German company Ziehl-Abegg. -
Page 4: Introduction
(splashing water from multiple directions). The unit is fully capable of running 24/7 in temperatures ranging from -25°C to +50°C. The default finish is galvanized steel or RAL 7045 (telegrey) for an extra cost. STAVOKLIMA Saudi... -
Page 5: Dimensions
AXI1, AXI2, AXI3, AXI4 USER’S MANUAL 3.1 Dimensions STAVOKLIMA Saudi... -
Page 6: Product Info
(horizontally and vertically) using a special connection kit. The AXI air curtain houses axial fans with outstanding performance and industrial-grade durability (IP protection level 54). IP54 protection level definition (fans + electrical connector box) STAVOKLIMA Saudi... -
Page 7: Technical Parameters
2100 2100 2100 Power Number of fans 3 x 350 mm 4 x 350 mm 4 x 400 mm 3 x 450 mm Nominal power Nominal current IP protection level Controller type Industrial industrial industrial industrial Outlet width STAVOKLIMA Saudi... - Page 8 9000 14100 18530 4800 4500 7050 9270 Length 3100 3100 3100 3100 Power Number of fans 5 x 350 mm 6 x 350 mm 6 x 400 mm 5 x 450 mm Nominal power Nominal current 10,0 13,8 STAVOKLIMA Saudi...
-
Page 9: Package Contents
The air curtain housing is wrapped around in a LDPE bag for additional moisture protection. The contents of the packaging are the following: AXI air curtain (1x) Wall suspension (2x) with M8 screws (4x) Allen key – size 6 (1x) Screw driver (1x) ROJ light industrial wall controller (1x) STAVOKLIMA Saudi... - Page 10 AXI1, AXI2, AXI3, AXI4 USER’S MANUAL Mechanical door contact (1x) User’s manual (1x) STAVOKLIMA Saudi...
-
Page 11: Unboxing
RECYCLING: Please recycle the packaging in compliance with your local environmental standards. STORAGE: Storage conditions for unopened packaging is temperature range from -10 °C to+50 °C, humidity 50-85% non-condensing. STAVOKLIMA Saudi... -
Page 12: Safety Precautions
Fire safety of appliances and heat sources, CSN 730823 Fire-technical properties of materials – degrees of combustibility. Install the unit 150 mm from combustible materials of classes B, C1, C2, 400 mm from easily combustible materials (class C3), and 1000 mm in the direction of radiation (air outlet of the unit). STAVOKLIMA Saudi... -
Page 13: Unit Description
Air curtain backplate with fan collars for better airflow and ErP 2015 compliance Air curtain chassis Axial fans with connector boxes Main connector box (loosely stored within the packaging) Connecting material (screws) Air curtain outlet with positionable louvre STAVOKLIMA Saudi... -
Page 14: Installation
Follow all local safety regulations and use common sense to avoid injury of self or others. For proper performance, please respect recommended maximal mounting heights/widths. STAVOKLIMA Saudi... - Page 15 AXI1, AXI2, AXI3, AXI4 USER’S MANUAL WARNING: Installation is performed at one's own risk. Any damage resulting from inappropriate handling is not covered by the warranty. STAVOKLIMA Saudi...
-
Page 16: Required Tools
Not part of the packaging Allen key – size 6 (1x) Chemical anchor (1x) Not part of the packaging Water Level (1x) Not part of the packaging Screwdriver (1x) or multi-purpose tool Meter measure (1x) Not part of the packaging STAVOKLIMA Saudi... -
Page 17: Connection Kit
The connection kit consists of 4 pieces of triangle-shaped profiles, 12 pieces of M8x30 screws, 4 pieces of M8 nuts, 12 pieces of spring washers – size 8 and 12 pieces of washers – size 8. connection profile fastening material STAVOKLIMA Saudi... - Page 18 AXI1, AXI2, AXI3, AXI4 USER’S MANUAL STAVOKLIMA Saudi...
- Page 19 Securing the top of the vertically-mounted unit to the wall The connection kit is assembled using supplied screws and attached to the air curtain using supplied screws. The air curtain has threaded rivets at designated spots for connection kit. STAVOKLIMA Saudi...
-
Page 20: Silent Blocks
The connection kit consists of 4 pieces of M8x30 silent blocks, 4 pieces of M8 nuts, 4 pieces of spring washers – size 8, 4 pieces of washers – size 8 and 4 pieces of cylindrical spring. nuts and washers material silent blocks STAVOKLIMA Saudi... - Page 21 AXI1, AXI2, AXI3, AXI4 USER’S MANUAL The silent blocks have M8 thread that requires corresponding connection diameter in the floor. Use equivalent form of floor anchor with M8 nut to establish a firm connection to the silent blocks. STAVOKLIMA Saudi...
-
Page 22: Electro-Connection Box
Use the supplied self-tapping screws to mount the electro- connection box onto the unit at a suitable location. Screwing in the self-tapping screws STAVOKLIMA Saudi... -
Page 23: Wall Mounting
9) Tighten the screws. If done properly, the wall bracket should be tightly attached to the wall. 10) Use supplied screws to attach the air curtain to the wall bracket and tighten all the screws using the supplied Allen key. Drilling spacing and recommended mounting STAVOKLIMA Saudi... - Page 24 OPTIMAL MOUNTING: In order to achieve the best performance, make sure the unit is centered above the door, it covers the entire width of the door and it is mounted in proximity of the top of the door. The offset of the door should be minimal. STAVOKLIMA Saudi...
- Page 25 AXI1, AXI2, AXI3, AXI4 USER’S MANUAL There are two alternative mounting options for the supplied wall brackets: Standard mounting Reverse mounting STAVOKLIMA Saudi...
-
Page 26: Ceiling Mounting
9) Attach the hinge eyes at the ends of threaded rods to the air curtain using the supplied screws and tighten all the screws using the supplied Allen key. The ceiling threaded rods use 4 connection points (threaded rivets) located on the top of the left and right side panel: STAVOKLIMA Saudi... - Page 27 OPTIMAL MOUNTING: In order to achieve the best performance, make sure the unit is centered above the door, it covers the entire width of the door and it is mounted in proximity of the top of the door. The offset of the door should be minimal. STAVOKLIMA Saudi...
-
Page 28: Custom Horizontal Mounting
8.7 Custom Horizontal Mounting In situations where none of the above-described methods is applicable, a custom solution may be required. Contact your local Stavoklima supplier for more information. 8.8 Vertical Mounting Vertical mounting is more suitable for situations where the height of the door exceeds the width and the vertical installation is not compromised by insufficient space around the door, suboptimal offset or nature of the door (e.g. - Page 29 7) Position the air curtain with the connection kit attached over the drill holes. 8) Screw in the screws, equivalent fasteners or nuts on threaded rods and tighten them. If done properly, the air curtain should be tightly attached to the ground and the wall. STAVOKLIMA Saudi...
- Page 30 The unit should be supported for the entire time until all screws are properly fastened. Use the supplied Allen key to fasten the screws. When mounted, make sure the unit is stable and fit for operation. Check the floor and the wall around the mounting points regularly. STAVOKLIMA Saudi...
- Page 31 Make sure the air curtain covers the entire height of the door. The offset of the door should be minimal. If units are installed on both sides of the door, the outlets are to be positioned directly against each other. STAVOKLIMA Saudi...
-
Page 32: Minimal Distances
Respect the minimal distances from the ceiling and the wall in order to use the full potential of the unit. Regardless the mounting orientation, always make sure the inlet of the air curtain is at least one fan diameter distant from the wall or ceiling: STAVOKLIMA Saudi... -
Page 33: Connecting The Unit
If you detect any damage, do not connect the unit and contact the supplier. Any damage resulting from inadequate handling is not covered by the warranty. STAVOKLIMA Saudi... - Page 34 AXI1, AXI2, AXI3, AXI4 USER’S MANUAL Wiring diagram STAVOKLIMA Saudi...
- Page 35 It is meant to be mounted on the door frame with the wheel intersecting the opening radius of the door. The distance of the sensor wheel and the door edge should be as close as conditions allow. Installation spots on sliding and standard door Mechanical Door contact STAVOKLIMA Saudi...
-
Page 36: Commission
From this point the fans of the unit should be working and air should be coming out of the unit’s outlet. STARTUP ISSUES: If you encounter difficulties commissioning the unit, refer to the Troubleshooting chapter (11.0) prior to contacting the supplier. Follow the steps! STAVOKLIMA Saudi... -
Page 37: Wall Controller
The air curtain reacts to turning of the fan speed controller switch. The controller is universal and can be used to control multiple Stavoklima air curtains, provided that the total amperage capacity of the controller is not exceeded. -
Page 38: Control
Any damage resulting from inadequate handling is not covered by the warranty. Interaction with the device internal components is performed at one's own risk. For safety purposes, keep the wall controller locked and keep the key in the safe location. STAVOKLIMA Saudi... -
Page 39: Fan Speed Regulation
The default time interval of the timer can be adjusted by accessing the timer relay inside the wall controller. Only authorized electrician is allowed to perform this procedure. Using the screw driver, the timer can be set anywhere between 50 milliseconds and 100 hours. STAVOKLIMA Saudi... - Page 40 15 seconds and 15 minutes. Do not use unnecessarily short or long intervals. The timer’s sole purpose is to prevent unit from frequent switching ON and OFF in situations where the doors are repeatedly opened and closed in short intervals. STAVOKLIMA Saudi...
- Page 41 Do not change the time presets without well-defined requirements and always record the default state for cases, when the default setting need to be restored. Any damage resulting from inadequate timer setting is not covered by the warranty. STAVOKLIMA Saudi...
-
Page 42: Maintenance
WARNING: Do not insert any foreign objects into the fan area. Never attempt to clean a powered fan. Any damage resulting from improper maintenance is not covered by the warranty. STAVOKLIMA Saudi... -
Page 43: Maintenance Schedule
Check the mounting of the door contact. If necessary, relocate it to a more secure position. WARNING: Disregarding the maintenance schedule may result into poor performance or irreversible damage to the unit. Such damage is not covered by the warranty. STAVOKLIMA Saudi... -
Page 44: Troubleshooting
The power shortage 1) Restore the power supply occurred and Once the power supply is restored, the unit will continue operation with last active the stopped setting loaded in the memory before the power down. working STAVOKLIMA Saudi... -
Page 45: Important Warnings
Installation, wiring and repairs must be performed by qualified personnel in accordance with applicable country-specific regulations and standards. 13.0 Contact Info STAVOKLIMA Saudi Email: sales@stavoklima.com.sa Tel: + 966 (011) 22 00 313 Fax: + 966 (011) 22 00 313 Ext. 116 www.stavoklima.com.sa...
