Summary of Contents for DIGISYNTHETIC DS36
- Page 1 Instruction Manual...
- Page 2 The consignee must make all shipping claims. The DS36 fits into a standard 19" rack unit of space (1 3/4"). Allow at least an additional 4" depth for the connectors on the back panel. Be sure that there is enough air space around the unit for cooling and ventilation.
-
Page 3: Microphone Processing

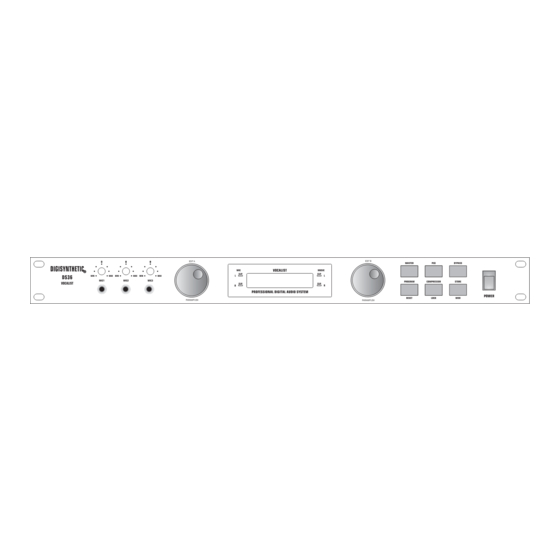

DS36 DIGITAL AUDIO SYSTEM Features: MUSIC PROCESSING 10 kinds music pre modes, 8 kinds user adjustable modes 5 bands parametric equalizer(PEQ) Dynamic compressor Digital treble & bass control Stereo digital key control Subwoofer output MICROPHONE PROCESSING 3 microphone input and volume control independently... - Page 4 Function Keys EDIT B EDIT A PARAM/PUSH PARAM/PUSH A. MASTER Adjust microphone and music volume and effect parameters B. PEQ Adjust microphone and volume parameters PEQ C. BYPASS Music bypass D. PROGRAM Microphone and music program setup RESET Microphone and music's parameters restoration E.
- Page 5 Operation Illustration A MASTER MIC & MUSIC MASTER VOLUME MASTER Main Menu Push [Sub]Lpf cutoff [Sub]woofer_vol Push Push Push Push Push Music Master_vol Treble_vol Bass_vol Hpf cutoff MASTER Push Push Push Master_vol Effect_vol Harmizer_level Push Effect para setup Harmonizer para setup 6 kinds Harmony parameters 7 Kinds effect parameters select ( see Appendix 1)
- Page 6 C BYPASS SMUS: FREE-EDIT PITCH [ ] BYPASS BYPASS Main Menu Press button one time, bypass is on. Press the button again, the bypass shut off. Press the BYPASS button over two seconds, music will be mute fast.. Press the button again, the mute will be off. D PROGRAM MIC &...
- Page 7 D RESET SYSTEM RESET MIC OR MUSIC ? RESET Main Menu Press PROGRAM/RESET button over 3 seconds: Push Push MIC knob ALL DATA RESET RESET ALL DATA Return to Reset MIC or MUSIC main menu Push Push MUSIC knob ALL DATA RESET? RESET ALL DATA E:COMPRESSOR MIC NOISE GATE...
- Page 8 Relieve LOCK ------- PASSWORD: UNLOCK ^ UNLOCK Main Menu The operation is same with LOCK. MIC PUSH move "^"position System clue to input lock code Rotate MIC knob, change code character MUSIC PUSH confirm present code, lock present system F STORE SAVE MUSIC PEQ SAVE ? STORE Main Menu...
- Page 9 Appendix 1 : HARMONY parameter mode Adjustable parameter apellation 3 HARM HARMONY FORMANT HARMONY FORMANT MELODY MELODY FORMANT RELATIVE HARMONY FORMANT SYNTH FORMANT VOCODER HARMONY FORMANT MALE FEMALE...
- Page 10 Appendix 2: Effect parameters mode Adjustable parameters apellation HALL REV-TIME ROOM REV-TIME PLATE REV-TIME STEREO ECHO-TIME ECHO-DEPTH ECHO-TIME MONO ECHO-DEPTH ECHO-TIME ECHO-DEPTH STEREO ECHO&REV REV-TIME MIX-RATIO ECHO-TIME ECHO-DEPTH MONO ECHO&REV REV-TIME MIX-RATIO...
- Page 11 Appendix 3: MUSIC Factory Setup Parameters range Memory Lock MUTE BYPASS Apellation Mute 0dB Master_vol -15dB -12dB~+12dB Treble_vol Bass_vol -12dB~+12dB Hpf cutoff 20Hz~300Hz 20Hz Subwoofer_vol Mute~0dB -10dB Lpf cutoff 20Hz~200Hz 200Hz Memory Lock MUTE BYPASS Factory Setup Parameters range Appellation -10dB Mute~0dB Master_vol...
-
Page 12: Specifications
Specifications: Music parts Noise Rate(SNR) >95dB (bypass, pitch shift is off) Distortion(THD) 0.01% 20Hz~20kHz Frequency Response 20Hz~20KHz 1dB Output Sensitivity/ Impedance 0.707v/47kohm Max Output 8Vpp/60W balance output Treble(8kHz) 12dB 0.5dB step Bass(250Hz) 12dB 0.5dB step Pitch Shift 7class,step 100 cent Subwoofer Distortion(THD) 0.07% 20Hz~200Hz...
