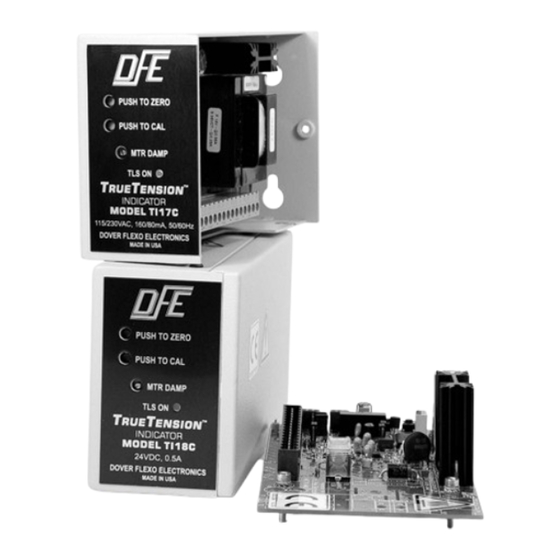

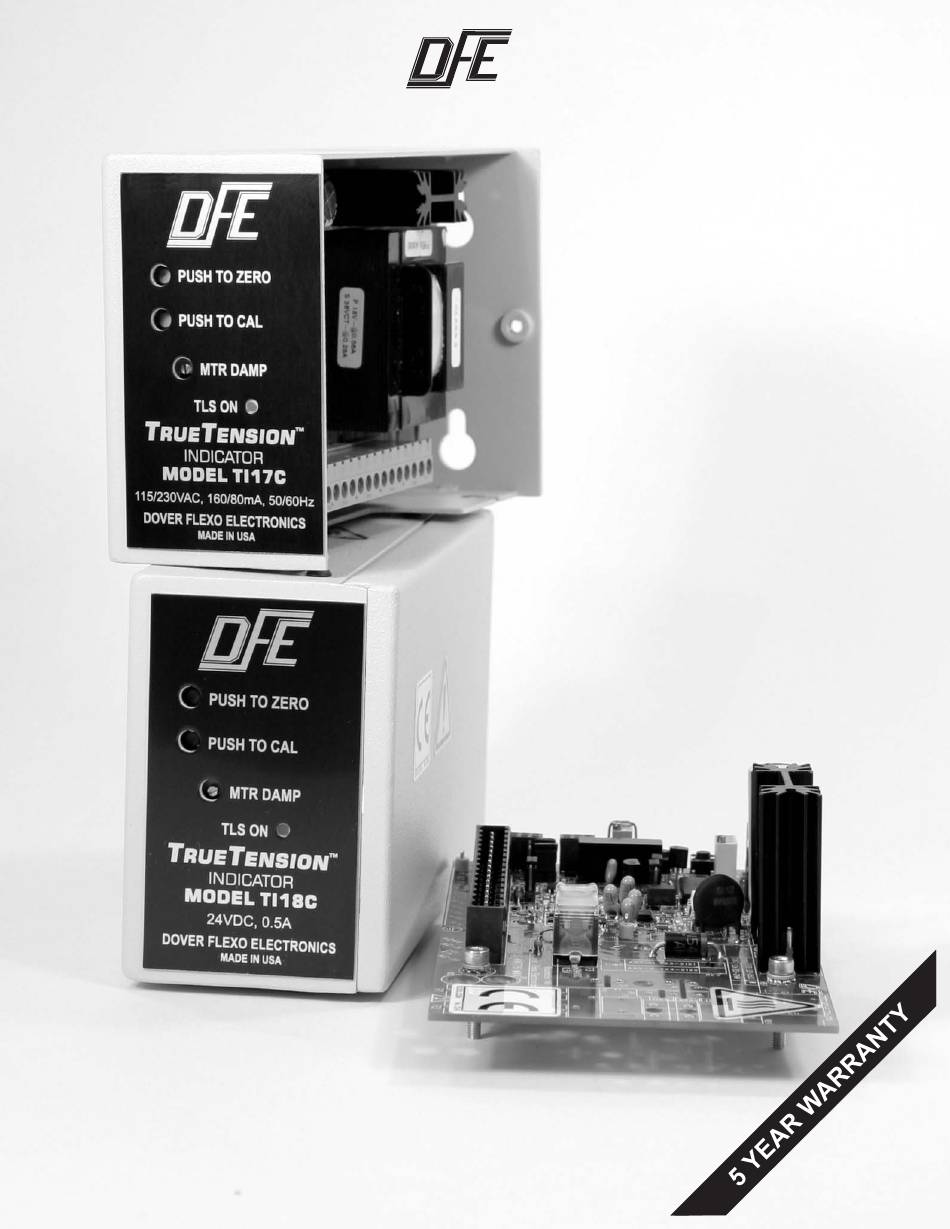

- Page 1 DOVER FLEXO ELECTRONICS, INC. ISO 9001 CERTIFIED INSTRUCTION MANUAL ™ RUE ENSION TENSION INDICATOR Models TI17C and TI18C ™ with Quik-Cal Model TI17CV in Vertical Mounting Bracket Model TI18CV-COV in Vertical Mounting Bracket with Cover Model TI18CH Horizontal Card...
- Page 2 Telephone: (603) 332-6150 Fax: (603) 332-3758 E-mail: info@dfe.com Internet: www.dfe.com ©2018 Dover Flexo Electronics, Inc. All rights reserved. Dover Flexo Electronics has made reasonable effort to ensure accuracy of this document. However NO WARRANTY, whether expressed or implied, is given regarding the completeness or correctness of information in this document.
- Page 3 NEW! QUIK-CAL™ PUSHBUTTON ZERO-SET AND CALIBRATION-SET The new Ti17C and Ti18C tension indicators/transducer interfaces are built with a new labor-saving technology called Quik-Cal! They do not have potentiometers for zero and calibration settings. Instead, they have pushbuttons. Push the button once, for one second, and you are done! No tension display is needed.
-
Page 5: Table Of Contents
TABLE OF CONTENTS SECTION ONE PRODUCT DESCRIPTION 1.1 General Description ........1 1.2 Exploded View of Ti17C and Ti18C . - Page 6 LIST OF ILLUSTRATIONS FIGURE PAGE 1 Exploded View of Horizontal Mounting Style ..... 1 2 Exploded View of Vertical Mounting Style ..... . . 2 3 Horizontal Mounting Dimensions .
-
Page 7: General Description
Ti17C and Ti18C Tension Indicators are designed to provide an isolated interface between any type of DFE tension transducer and a variable speed drive system, computer, tension recorder, or other devices for tension control and display purposes. They also have a separate output to allow the user to connect an analog meter to indicate operating tension. -
Page 8: Specifications
1.2 EXPLODED VIEWS OF Ti17C and/or Ti18C continued... Figure 2 - EXPLODED VIEW OF VERTICAL MOUNTING STYLE 1.3 SPECIFICATIONS Power Input: Voltage: ....= 120/230VAC +/- 10%, 50/60Hz, Single Phase Ti17C AC operation only for Ti17C. -
Page 9: Environmental Conditions
32°F to 104°F (0°C to 40°C). Accessory tension meter types: ....Analog 1mA, 3.5" (DFE P/N: 722-1385), or meter in enclosure for CE models (DFE P/N: 723-2682). -
Page 10: Options
1.5 STANDARD FEATURES continued... • . Isolation is provided between the output circuit and transducer ground, Output Isolated from Earth Ground simplifying installations. • . Allows two calibration settings. Dual calibration example applications: Dual Calibration a. One set of transducers operating in a wide tension range. Dual calibration and dual meter scale is used to enhance the resolution of indicated tension. -
Page 11: Accessories
. Analog, 1 mA (DFE P/N: 722-1385) supplied as a single unit. Must be installed by Remote Tension Meter user. This meter is also available in its own enclosure (DFE P/N: 723-2682) for CE compliant models. See Specifications for standard scales. Any other meter scale can be made for an additional charge... -
Page 12: Dimensions
SECTION 2 INSTALLATION 2.1 DIMENSIONS inches (mm) Figure 3 - HORIZONTAL MOUNTING DIMENSIONS Figure 4 - VERTICAL BRACKET MOUNTING DIMENSIONS... -
Page 13: Selection Of Mounting Location
Figure 5 - ACCESSORY TENSION METER DIMENSIONS (DFE Part# 722-1385) Figure 6 - ACCESSORY TENSION METER ENCLOSURE DIMENSIONS (DFE Part# 723-2682) 2.2 SELECTION OF MOUNTING LOCATION To ensure safety and proper operation, the Ti17C or Ti18C must be located away from dusty or wet environ- ments. -
Page 14: Cover Stud Hardware
The male stud sticking out of the cover requires solid ground bonding to the case for safety. See Figure 7. An M3 star washer (DFE P/N 124-0040) must be installed over the stud before inserting the cover into the base enclosure. -
Page 15: Installation Instructions
Cable shielding must be attached to the SHIELD connection on the terminal block, or to an appropriately grounded enclosure. In addition to the above, the DFE Model Ti18C is UL/cUL LISTED only in its full enclosure version with cover. 2.4 INSTALLATION INSTRUCTIONS Drill your mounting holes for the mounting style you will be using. -
Page 16: Transducer Voltage Selection
2.5 TRANSDUCER VOLTAGE SELECTION (Refer to Figure 8) The tension transducers are excited by either the standard 5 Vdc or, 10 Vdc with the Extended Range option or LT (low tension) transducer. Do NOT use the 10 Vdc excitation unless the transducers are LT type transducers or have the !!CAUTION extended range option! The transducers MAY be DAMAGED! Set the transducer excitation jumpers as follows:... -
Page 17: Standard Electrical Connections
2.7 ELECTRICAL CONNECTIONS - STANDARD The indicator is designed to provide a 0-1mA damped meter output, and either a 0-10V isolated OR a 4-20mA isolated output. Make your wiring connections as follows: 1. The insulation rating of all line voltage wiring must be at least 600V 2. -
Page 18: Tension Limit Switch External Relay Connections
2.8 TENSION LIMIT SWITCH EXTERNAL RELAY CONNECTIONS (Option) Figure 11 - TLS EXTERNAL RELAY CONNECTIONS (Option) -
Page 19: Preparation
SECTION 3 CALIBRATION and SETUP 3.1 PREPARATION 1. Select an appropriate calibration weight. Remember that the weight determines the value of web tension that will produce full output of the Ti17C/Ti18C. A 15lb. weight will result in full output at 150 lbs. tension. (If the optional cal. -
Page 20: Web Path
3.3 CALIBRATE THE OUTPUT FOR ACCURACY continued... : Fasten one end of the rope in the machine and thread the other end around the transducer roll CALIBRATION in exactly the same path the web will take. Be sure the rope does not pass around any driven rolls, drag bars, or anything else that can affect tension. -
Page 21: Calibration And Adjustment Of Tension Limit Switch
3.4 CALIBRATION AND ADJUSTMENT OF TENSION LIMIT SWITCH OPTION The Tension Limit Switch (TLS) option is used to provide a visual LED indication when the tension output exceeds one value or goes below another value. You can also connect an external relay as shown in Section 2.8 to sound an external alarm, turn the machine off, and so forth. -
Page 22: Tension Limit Switch Test Point Values
3.4 CALIBRATION AND ADJUSTMENT OF TENSION LIMIT SWITCH OPTION continued... A. If the TLS LED is off after setting your tension level, TLS low is either deactivated, or set below the tension level you have achieved. Slowly turn RT800 clockwise until the LED turns on. Now, slowly turn RT800 counterclockwise until the LED turns off. -
Page 23: Section Four Operating Instructions
SECTION 4 OPERATING INSTRUCTIONS Your tension interface / indicator will indicate tension in your system without any further operator intervention. It is a good idea to make a check at roughly one month intervals to verify that no one has changed the calibration. -
Page 24: Section Five Care And Maintenance
SECTION 5 CARE AND MAINTENANCE It is not necessary to perform any type of maintenance on the indicator. However, you may find it worthwhile to observe whether there is a buildup of dust, debris, or moisture on or near the unit after a period of time. If so, you may consider putting the unit in a more appropriate location. -
Page 25: Section Six Troubleshooting Guide
It should be on steadily within one second of power application. The green status LED should not be flashing during operation except when pressing ZERO or CALIBRATION pushbuttons (LED will flash once indicating acceptance of ZERO or CAL). Continuous flashing is an indication of a problem, contact DFE technical support if this condition is observed. -
Page 26: Section Seven Replacement Parts
SECTION 7 REPLACEMENT PARTS See diagram below for separate components. : When replacing fuses, use only fuses with ratings as shown below. Failure to do this may compromise WARNING personal safety and may create a fire hazard! Figure 16 - REPLACEMENT PART NUMBERS... -
Page 27: Appendix: A Location Of Jumpers And Adjustments (Figures 17, 18)
Appendix A: Locations of Jumpers and Adjustments List of Jumpers: JP1 - Transducer Excitation: 5V std, 10V XRE. JP5 - 115VAC or 230VAC input. Ti17C only. JP2 - Tension Output - 0-10V or 4-20mA.. Factory set.. Default is 0-10V. Must match JP3 JP6 - Calibration weight to total tension JP3 - Tension Output;... -
Page 28: B Electrical Connections (Figures 19, 20)
Appendix B: Electrical Connections Ti17C/Ti18C STANDARD CONNECTIONS: Make your wiring connections as follows: 1. The insulation rating of all line voltage wiring must be at least 600V. 2. Keep line voltage wiring physically separated from signal wiring at the terminal block and at any other point in the installation. - Page 29 TENSION LIMIT SWITCH EXTERNAL RELAY CONNECTIONS (Option): Figure 20 - TLS EXTERNAL RELAY CONNECTIONS (OPTION)
-
Page 30: C Transducer Electrical Connections (Figures 21-24)
Appendix C: Transducer Electrical Connections Figure 21 - MODELS C, RS, & F TRANSDUCER WIRING... -
Page 31: Rfa Transducer Wiring
Figure 22 - RFA TRANSDUCER WIRING... - Page 32 Figure 23 - TR & NW TRANSDUCER WIRING...
-
Page 33: Lt Transducer Wiring
Figure 24 - LT TRANSDUCER WIRING... -
Page 34: D Typical Tensions Of Various Materials
Appendix D: Typical Tensions for Various Materials TYPICAL TENSIONS FOR WEB MATERIALS ACETATE 0.5 lb. per mil per inch of width FOIL Aluminum 0.5 lb. per mil per inch of width Copper 0.5 lb. " CELLOPHANE 0.75 lb. per mil per inch of width NYLON 0.25 lb. -
Page 35: E Environmental Terms
Appendix E: Environmental Terms OVERVOLTAGE CATEGORY: Classification of parts of installation systems or circuits with standardized limits for transient overvoltages, dependent on the normal line voltage to earth. POLLUTION: Any addition of foreign matter, solid, liquid or gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity. -
Page 36: Terms And Conditions Of Sale And Shipment
TERMS AND CONDITIONS OF SALE AND SHIPMENT payments shall be made on the purchase price based upon 1. THE COMPANY percentage of completion. Dover Flexo Electronics, Inc. is hereinafter referred to as the Com- pany. 7. TAXES 2. CONFLICTING OR MODIFYING TERMS Any tax, duty, custom, fee or any other charge of any nature whatsoever imposed by any governmental authority on or measured No modification of, additions to or conflicting provisions to these... -
Page 37: Declaration Of Conformity - Ti17C
DECLARATION OF CONFORMITY Dover Flexo Electronics 217 Pickering Road Rochester, NH 03867 USA Tel: (603) 332-6150 Fax: (603) 332-3758 declare under our sole responsibility that the product: Ti17CV Web Tension Interface (with (COV) option), manufactured after the date: 4 September 2007, and to which this declaration relates, is in conformity with the following standards or other normative documents: EN 55011: Radiated and Conducted Emissions, Class A EN 61326-1:2006: Electromagnetic compatibility - Generic immunity standard... -
Page 38: Declaration Of Conformity - Ti18C
DECLARATION OF CONFORMITY Dover Flexo Electronics 217 Pickering Road Rochester, NH 03867 USA Tel: (603) 332-6150 Fax: (603) 332-3758 declare under our sole responsibility that the product: Ti18C Web Tension Interface, manufactured after the date: 4 September 2007, and to which this declaration relates, is in conformity with the following standards or other normative documents: EN 55011: Radiated Emissions, Class A EN 61326-1:2006: Electromagnetic compatibility - Generic immunity standard... -
Page 39: Index
INDEX 0-1 mA ............3, 4 Operating Instructions ........0-10 Volt Tension Output ......3, 4 Options ............0-100μA ............4 , 10, 21 Output Response Time ......... 230 Volt Power ..........3, 5, 19 Outputs, 4-20mA ............3, 5 0-1 mA ............ - Page 40 217 PICKERING ROAD ROCHESTER, NEW HAMPSHIRE 03867-4630 U.S.A TEL: 603-332-6150 FAX: 603-332-3758 E-mail: info@dfe.com Internet: www.dfe.com CANADA MEXICO UNITED KINGDOM TAIWAN KOREA AUSTRALIA SOUTH AFRICA CHINA ©2018 DOVER FLEXO ELECTRONICS, INC DOC 801-2169 R8 ALL RIGHTS RESERVED PRINTED IN USA...
