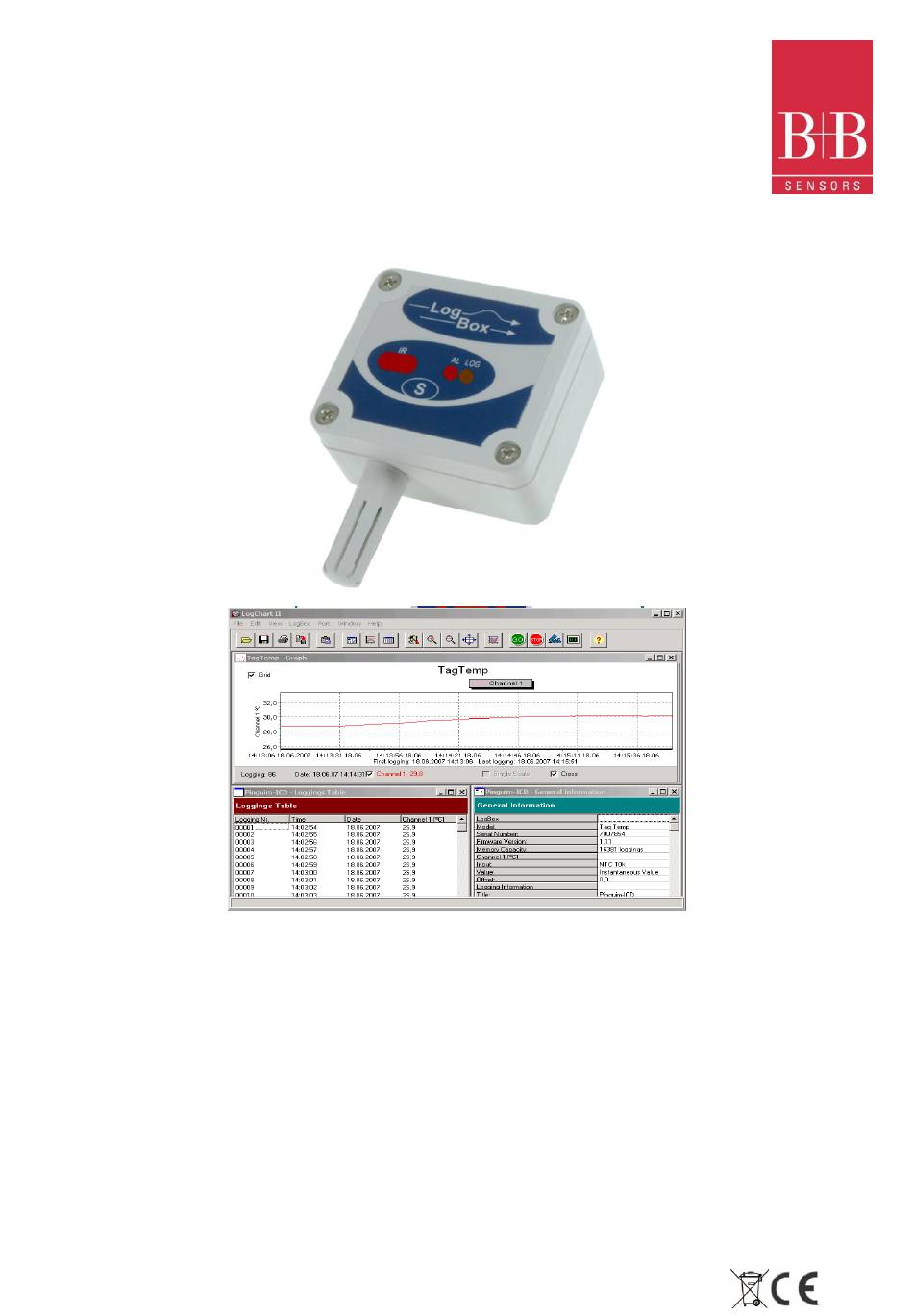

- Page 1 INSTRUCTION MANUAL LogBox RHT Temperature and Humidity Data Logger B+B Thermo-Technik GmbH | Heinrich-Hertz-Str. 4 | D-78166 Donaueschingen Technical changes reserved Fon +49 771 83160 | Fax +49 771 831650 | info@bb-sensors.com | bb-sensors.com 1 / 18 0141 0315-14 07.06.2016...
-
Page 2: Table Of Contents
INSTRUCTION MANUAL LogBox RHT Temperature and Humidity Data Logger Table of contents ................................... 3 FOREWORD ............................... 3 GENERAL INFORMATION Labels ......................................3 ................................. 4 SECURITY ADVICE ............................ 4 WASTE AND DISPOSAL ADVICE ..........................4 USAGE ACCORDING TO PURPOSE ............................... 4 PRODUCT DESCRIPTION 6.1. -
Page 3: Foreword
Dear customer, We thank you for having purchased the LogBox RHT and are very glad that you decided in favour of a product of B+B Thermo- Technik GmbH. We hope this product will fully satisfy you and will assist you effectively in your work. -
Page 4: Security Advice
Acquisitions can also be exported to be analyzed in other applications, such as spreadsheet programs. 6.1. Supply voltage The Temperature and humidity Data logger LogBox RHT is a highly autonomic measurement device. It is supplied with a built-in 3.6 V lithium battery (CR2032). 6.2. -
Page 5: Identification
INSTRUCTION MANUAL LogBox RHT Temperature and Humidity Data Logger 6.3. Identification The identification label is on the logger body. Check if the features described are in accordance with your order. The following elements are shown in the logger front. Communication... -
Page 6: Drivers And Software Installation
INSTRUCTION MANUAL LogBox RHT Temperature and Humidity Data Logger 7.1. Drivers and software installation In the Ir-Link3/RS232 model there is a RSR232/Ir communication interface. It must be connected to the serial port at the PC. In the Ir-Link3/USB model there is a USB/Ir communication interface, which must be connected to the available USB port. -
Page 7: Running Logchart_Ii
INSTRUCTION MANUAL LogBox RHT Temperature and Humidity Data Logger 7.2. Running LogChart_II When you open Logchart-II the following main window is displayed Next, select the serial port that the communication interface will use in the “Port” menu. If using the serial port check which serial is available. Usually COM2 is free, once the mouse uses COM1. In the case of Ir- Link3/USB choose USB port. - Page 8 INSTRUCTION MANUAL LogBox RHT Temperature and Humidity Data Logger “GO” button: The following Parameters Configuration dialog box is then displayed In this dialog box the user can define the logger operation mode and also obtains general information about the device.
- Page 9 INSTRUCTION MANUAL LogBox RHT Temperature and Humidity Data Logger Full Memory Measurement is stopped when the memory is full (32 000 values) Wrap around Readings never stop, The oldest records are replaced with newest ones as the number of readings exceeds the memory capacity.
-
Page 10: Datatransfer And Visualisation
INSTRUCTION MANUAL LogBox RHT Temperature and Humidity Data Logger DATATRANSFER AND VISUALISATION Data collected are sent from logger to PC. Data can be collected any time, at the end of the acquisition process or while they are being acquired. If data collection takes place during the acquisition process, the process will not be interrupted. -
Page 11: General Information Sheet
INSTRUCTION MANUAL LogBox RHT Temperature and Humidity Data Logger 8.5. General information sheet This window shows some information about the logger whose data were just read and its configuration. The screen can be displayed by pressing the Parameter Viewing icon: 8.6. -
Page 12: Pda User
INSTRUCTION MANUAL LogBox RHT Temperature and Humidity Data Logger PDA USER It is possible to set up the logger and collect acquired data with a PDA that supports the Palm-OS system. The application LogChart Palm-OS is shipped with the logger. The stalled in the PDA through a HotSync process (data synchronization between PDA and PC). -
Page 13: Configuring The Logger- Settings
INSTRUCTION MANUAL LogBox RHT Temperature and Humidity Data Logger Base in the PDA data base. 9.2. Configuring the Logger- Settings During configuration, the logger and the PDA ports must be aligned. Press Settings in the Monitoring screen. The screen Settings is opened and provides the required parameters for configuring the logger. - Page 14 INSTRUCTION MANUAL LogBox RHT Temperature and Humidity Data Logger After loggings: The logging will stop after the pre-defined number of readings has been reached. By date/time: Logging is stopped on user-defined date and time Interval: Defines the interval between readings: hour, minutes and seconds. When the logging mode is set to the Instantaneous the minimum interval is 1 second.
-
Page 15: Downloading Data From The Logger
INSTRUCTION MANUAL LogBox RHT Temperature and Humidity Data Logger 9.3. Downloading data from the Logger In the Monitoring screen, the Download button performs the transfer of the data from de LogBox to the PDA. Download can be partial and it does not interfere in the ongoing acquisition process. The data base of loggings is displayed in the Recorded Data screen, identified with the name assigned to the process (Data Title) and the date it was downloaded. -
Page 16: Transferring The Data To The Desktop
INSTRUCTION MANUAL LogBox RHT Temperature and Humidity Data Logger 9.5. Transferring the data to the desktop HotSync of data stored in a PDA with the Desktop is performed through a conduit installed together with the LogChart Palm-OS. The conduit converts the data collected by the LogChart Palm-OS to a file compatible with the LogChart-II software. -
Page 17: Questions
INSTRUCTION MANUAL LogBox RHT Temperature and Humidity Data Logger QUESTIONS? If you still have other questions concerning this or other product of B+B Thermo-Technik GmbH, contact us at: B+B Thermo-Technik GmbH Heinrich-Hertz-Straße 4 78166 Donaueschingen Phone: +49 771 83160 Fax: +49 771 831650 E-Mail: info@bb-sensors.com... -
Page 18: Technical Data
Menus in Portugiesisch, English oder Spanisch. Einstellungen, Datentransfer und Anzeige auf dem Bildschirm 0568 0038 Data Logger LogBox RHT with internal temperature (Pt100) and humidity sensors. Up to 32 000 values memory capacity. Operating Temperature -40°C …80 °C, 0568 0036 IrLink 3 infra red communication interface with USB Connector and LogChart II software.
