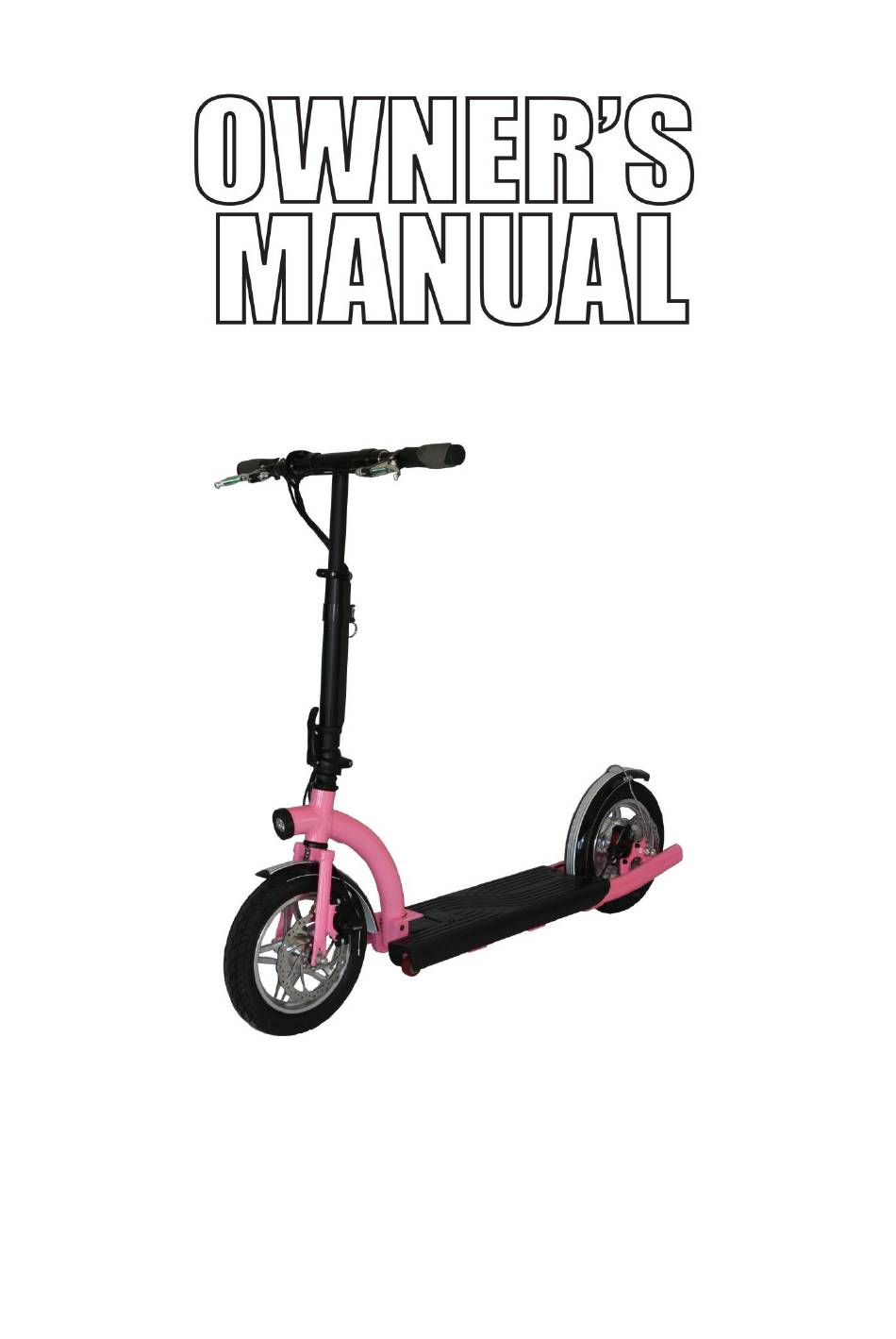

  • Page 1 Read Instructions Before Using Your New Electric Scooter...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS……………………………….…………….………………2 IMPORTANT INFORMATION…………………………………….……………...3-4 SAFETY GUIDE ……………………………………………………………….5 GETTING TO KNOW YOUR SCOOTER………………………………….6-7 PACKAGE CONTENTS…………………………………………………………….8 GETTING STARTED………………..……………………………..…….8 ASSEMBLY…………………………………………………………..8-12 SPECIFICATON …………………………………………………………...12 BATTERY………………………………………………………………13 CHARING AND BATTERY……………………………………………….14-16 DRIVING ……………………………………………………17...

  • Page 3: Battery Maintenance And

    PLEASE BE SAFE WHEN RIDING ALWAYS WEAR A HELMET AND OBEY ALL LAWS! IMPORTANT BATTERY MAINTENANCE and CHARGING INSTRUCTIONS 1. You MUST charge completely prior to initial use. (Follow charging instructions in your Product Handbook) 2. Charge immediately after each use. 3.

  • Page 4: Information

    IMPORTANT PLEASE READ THIS BEFORE USING THIS PRODUCT READ THIS FIRST! WARNING This product does not conform to Federal Motor Vehicle Standards and is not intended for operation on public streets, roads or highways. Serious injury can result from the unsafe operations of this product. Operator can minimize these risks by using certain safety equipment such as: safety helmet, goggles, gloves, elbow and kneepads and appropriate footwear.

  • Page 5: Safety Guide

    SAFETY GUIDE  The recommended minimum age for riding this scooter is 14 years old.  To avoid damage to the motor and footplate, do not overload the scooter.  Never ride with more than one person.  Inspect your scooter thoroughly before each use for loose or missing parts. ...

  • Page 6: Getting To Know Your Scooter

    GETTING TO KNOW YOUR SCOOTER (photo 1) (photo 2) 1. quick release 2. brake lever 3. speed meter 4. throttle 5. Folding Key 6. seat tube wrench 7. saddle 8. quick release 9. saddle folding safety 10. mudguard holder 11. rear disk 12.1 dust cap 12.2 charger pot 12.3 power main switch Page 6...
  • Page 7 12.4 rear light 13. rear 12 inch tire 14. kick stand 15 .plastic cover 16. folding pressing plate 17. small wheel 18. front 12 inch tire 19. front disc brake 20.front light LED Speed Meter Instruction (photo 3) 1. ”+” gear button 2.

  • Page 8: Package Contents

    PACKAGE CONTENTS Your Scooter comes with the following items in the box. Please locate all of the following: Electric Scooter 36V /48vV lithium Battery Charger Tools Manual GETTING STARTED Please read and understand these instructions and the OPERATING PROCEDURES section, prior to starting or riding your scooter Assembly: 1.
  • Page 9 (photo 5) (photo 6) (photo 7)
  • Page 10 (photo 8) (photo 9)
  • Page 11 (photo 10) (photo 11) (photo 12)

  • Page 12: Specificaton

    9.If you choose scooter with seat. Please assemble the seat as following: (photo 13) (photo 14) (photo 15)

  • Page 13: Battery

    (photo 16) ELECTRIC SCOOTER SPECIFICATION: Model 500 frame Aluminum frame motor 12 inch 36v 500w brushless toothed high speed EP motor controller 36v 500w motor battery 36v,10.4ah lithium battery charger 36v 2A AC110-230V DC36V charger time 5--6 hours Brake(front/rear) disc brake brake lever wuxing brand tire...

  • Page 14: Charging And Battery

    Operation BATTERY .Do not operate motor while charging! .Indicator lights in the LED display are intended only for general knowledge (full/empty) and does not give a precise indication to the battery status. .Do not store E-SCOOTER for long terms(more than two months) with fully charged battery.
  • Page 15 photo (17) photo(18) Your E-SCOOTER has an external charger. Connect the charging cable to E-SCOOTER charging socket photo (17). Than connect the chargers electric cable to an electrical outlet photo(18). Your scooter comes charged out of the carton. We still recommend charging the unit for 6-7 hours prior to it’s first use.
  • Page 16 Charging Light Green-Charging is complete. Avoid long periods of time with an uncharged or fully charged battery. To maximize your E-SCOOTER battery performance, fully charge it for 5.5-6 hours once a month, or after each use of twelve hours. Unplug E-SCOOTER from the outlet before installing, removing the battery or performing any maintenance.

  • Page 17: Driving

    Driving 1.Firstly ,press the 12.3(main switch) .and then press the switch button on meter .this scooter is No-Zero start ,you need to push and go some steps then press the throttle . 2. At night, turn the front and rear light on. Thank you for purchasing our scooter and please tell your friends how much fun you’re having on the scooter...
