Chainway R6 User Manual

Uhf sled reader
Hide thumbs
Table of Contents

Advertisement

Quick Links

SHENZHEN CHAINWAY INFORMATION TECHNOLOGY CO.,LTD

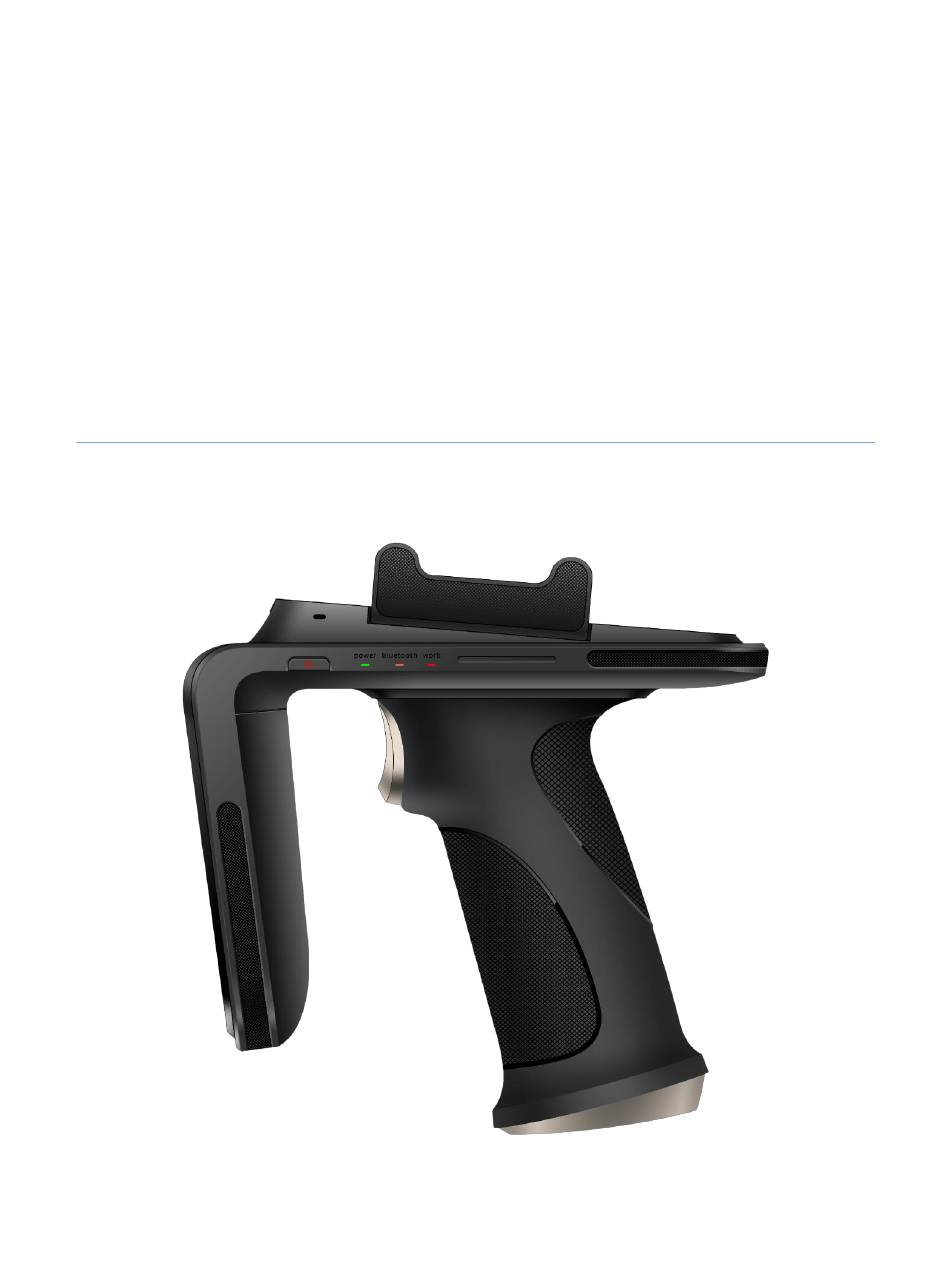

UHF Sled Reader
R6 User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Chainway R6

  • Page 1 SHENZHEN CHAINWAY INFORMATION TECHNOLOGY CO.,LTD UHF Sled Reader R6 User Manual...

  • Page 2: Table Of Contents

    Content Content ..................1 Statement ..................3 Chapter 1 Product intro ..............4 Intro ..................4 Precaution before using battery ........... 5 Charger ................6 Notes ................... 7 Chapter 2 Installation instructions............8 2.1 Appearance ................8 2.3 Battery charge ................. 9 2.4 Buttons and function area display ..........

  • Page 4: Statement

    (licensed program). Except as noted below, such license may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of Chainway. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law.

  • Page 5: Chapter 1 Product Intro

    Chapter 1 Product intro 1.1 Intro This is a new UHF back clip product, featuring the Cortex-M3 STM32 processor with excellent working performance. The device can be used with any Android and IOS device as a host. The device combines powerful UHF (Read and write) functions with 2D scanning for greater sensitivity.

  • Page 6: Precaution Before Using Battery

    1.2 Precaution before using battery  Do not leave battery unused for long time, no matter it is in device or inventory. If battery has been used for 6 months already, it should be check for charging function or it should be disposed correctly.

  • Page 7: Charger

    1.3 Charger The charger type is GME10D-050200FGu, output voltage/current is 5V DC/2A. The plug considered as disconnect device of adapter.

  • Page 8: Notes

    1.4 Notes Note: Using the incorrect type battery has danger of explosion. Please dispose the used battery according to instructions. Note: Due to the used enclosure material, the product shall only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited.

  • Page 9: Chapter 2 Installation Instructions

    Chapter 2 Installation instructions 2.1 Appearance R6 right and front appearances are showing as follows: Indicating Lamps instruction Lamps Description Power Constant light up (battery available)/Flash (Low battery) Indicating Constant light up (Bluetooth connected) Bluetooth Lamps Flash when read UHF tags...

  • Page 10: Battery Charge

    2.2 Battery charge By using USB contact, the original adaptor should be used for charging the device. Make sure not to use other adaptors to charge the device.

  • Page 11: Buttons And Function Area Display

    2.3 Buttons and function area display R6 Sled reader has 1 power button and 3 indicating lamps. 2D Scanning Module UHF Module Power Indication Lamp...

  • Page 12: Chapter 3 Demo Test

    Chapter 3 Demo Test 3.1 Install demo-uhf-bt (1.0.8) 1. Copy demo-uhf-bt (1.0.8) into internal storage of smart phone or C7x device. 2. Click to install. 3. Click icon to open demo.

  • Page 13: Pairing Device

    3.2 Pairing Device 1. Switch on Bluetooth function of smartphone or C7x device. 2. Power on R6. 3. Click BLUETOOTH in the demo. 4. Click SEARCH to search for Nordic_UART_CW. 5. Click Nordic_UART_CW to connect.
  • Page 14 6. After connecting successfully, user could click 3 dots on top right to check UHF version, battery percentage and UHF module temperature.

  • Page 15: Uhf Scan Function

    3.3 UHF Scan Function 1. Click START in demo or pull the trigger on R6, the UHF tags could be read. 2. Click STOP in demo to stop reading of UHF tags. 3. Click CLEAR to clean all EPC information.

  • Page 16: Uhf Configuration

    3.4 UHF Configuration 1. Click CONFIG in demo to adjust working mode and output power.

  • Page 17: Uhf Encryption

    3.5 UHF Encryption 1. Click ENCRYPTION to decrypt and encrypt the special zones of UHF tags such as USER, EPC, etc.

  • Page 18: Uhf Tag Reading And Writing

    3.6 UHF Tag Reading and Writing 1. The storage of one tag has 4 zones: RESERVED, EPC, TID and USER. Normally, the default password is 00000000. And TID zone can only be read, other zones can be read and written.

  • Page 19: Uhf Tag Lock And Kill

    3.7 UHF Tag Lock and Kill 1. Lock Function: For example. User could try to lock down EPC zone.
  • Page 20 2. Kill Function: Kill function can be used to kill the tag permanently. Input the correct access password and click kill.

  • Page 21: Firmware Upgrade

    3.8 Firmware Upgrade 1. Copy the firmware bin. file into internal storage. 2. Click Select file to search for bin. 3. Click Upgrade to upgrade firmware.

  • Page 22: Barcode Scan Test

    3.9 Barcode Scan Test Select BARCODE SCAN in the demo and click SCAN button on the screen to scan barcodes.

  • Page 23: Chapter 4 Device Characteristic

    Chapter 4 Device characteristic Physical characteristics Size 153.96x76x129.08mm Weight 445g Color Black Appearance Plastic material Product Plastic material Battery 2600mAh/5200mAh specification Indicator LED Power, Work, Bluetooth Buzzer Support Interfaces Micro-USB Performance Cortex-M3/72 MHz RAM+ROM 64M+4G User environment Operating -20℃ to 50℃ temp.
  • Page 24 Data collection 2D Imager SE2707 Scanner 1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. 2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC- 39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode;...
