ZM13.SIDE Installation Manual
DE
ZM13.SIDE Installationsanleitung
FR
ZM13.SIDE Manuel d'installation
ES
ZM13.SIDE Manual de instalación
Doc. ID: PU-200.100.82-xxZ (2019-01-10-MR1)
Product Description
The ZM13.SIDE is a mechanical accessory to mount the device sideways with or
without utilizing a DIN-rail to save installation depth.
The two aluminum brackets and the black plastic slider of the unit have to be
detached, so that the ZM13.SIDE steel bracket can be mounted.
For sideway DIN-rail mounting, the removed aluminum brackets and the black plastic
slider need to be mounted on the ZM13.SIDE steel bracket.
The order number ZM13.SIDE contains one bracket and four screws, which are
needed for sideways DIN-rail mounting.
Intended Use
This mechanical accessory is designed for DIN-rail devices. Check the product
datasheet of the DIN-rail device to confirm that it is suitable for the desired device.
Headquarters: PULS GmbH, Elektrastr. 6, 81925 Munich, Germany, www.pulspower.com
Germany +49 89 9278 0
China
+86 512 62881820
The information in this document is believed to be accurate and reliable and may change without notice.
Side Mount Bracket
Seitlicher Montagewinkel
Kit de montage latéral
Soporte de montaje lateral

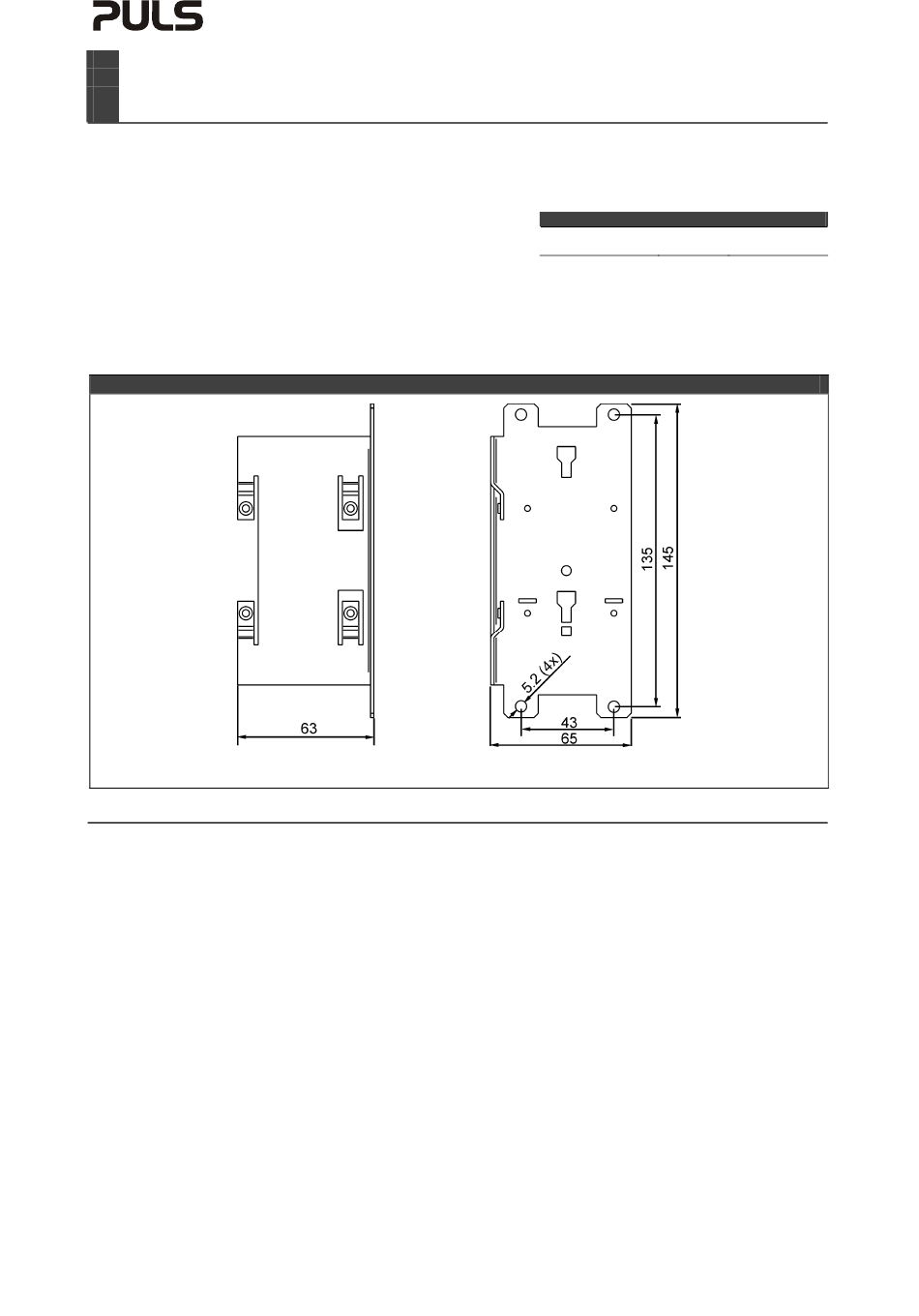

Mechanical Dimensions
All dimension in mm
France
+33 478 668 941
North America
+1 630 587 9780
Technical Data
Size (width x height x depth) 65x145x63mm
Weight
Austria
+43 2764 3213
Singapore
+65 6684 2310
180g / 0.4lb
Switzerland
+41 56 450 18 10
United Kingdom +44 1525 841001
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Puls ZM13.SIDE
Summary of Contents for Puls ZM13.SIDE
- Page 1 Soporte de montaje lateral Doc. ID: PU-200.100.82-xxZ (2019-01-10-MR1) Product Description The ZM13.SIDE is a mechanical accessory to mount the device sideways with or Technical Data without utilizing a DIN-rail to save installation depth. Size (width x height x depth) 65x145x63mm...
- Page 2 ZM13.SIDE Installation Manual Mounting Example – Wall Mounting Mounting Example – DIN-Rail Mounting Installation Instructions 1) Detach the two aluminium brackets by removing the four screws with a Torx screwdriver (Torx 10). Save the screws for step 3. 2) Remove the plastic lock mechanism by using a flat-blade screwdriver to move the lock downwards while at the same time push the plastic slide upwards.
