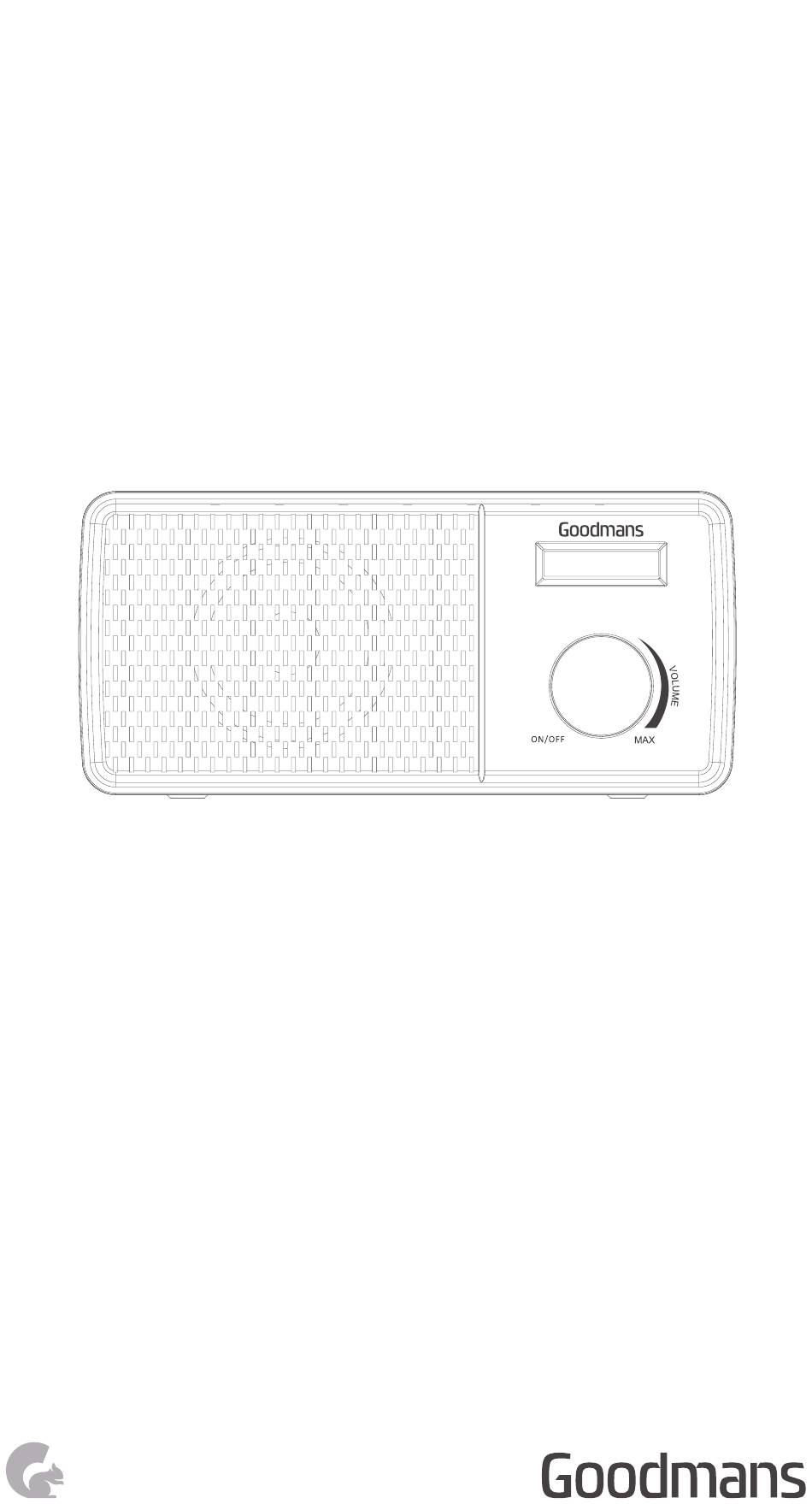

DAB FM RADIO
MODEL:338934
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 338934 and is the answer not in the manual?

Questions and answers

Summary of Contents for Goodmans 338934

  • Page 1 DAB FM RADIO MODEL:338934 USER MANUAL...
  • Page 2: Quick Setup

    Welcome Your DAB FM Radio In The Box Mains Power Position Of DAB FM Radio Adjusting The Aerial Front View Top View Rear View Quick Setup Connecting The Power Using Your DAB FM Radio For The First Time Troubleshooting DAB Operation Full Scan Storing Stations Recalling A Stored Stations...
  • Page 3 4.17 System Version 4.18 FM Scan Set 4.19 Resetting the radio 4.20 Snooze Function FM Scan Setting 5.1 System Version Technical Specifications Customer Support...
  • Page 4: Your Dab Fm Radio

    Welcome Thank you for choosing this Goodmans product. We have been making electrical products for the British people for over 90 years. Each of our products have been carefully designed to be great at what they do and this one is no exception. We hope you enjoy your new Goodmans DAB FM Radio.
  • Page 5: Mains Power

    2.2 Mains Power Your DAB FM Radio uses a DC 5V - 1A power adapter. Please ensure that your mains supply is compatible before use. 2.3 Position of DAB FM Radio Place on a flat, stable surface that is not subject to vibrations. Avoid the following locations: Where it is exposed to direct sunlight.
  • Page 6: Front View

    2.5 Front View LCD Display ON/OFF & Volume Control Dial Speaker 2.6 Top View Standby/Mode Button Press and hold to enter Standby mode. Press to switch between DAB and FM radio modes. Scan Button Press to scan DAB and FM stations. Info/Menu Press to view station information.
  • Page 7: Rear View

    2.7 Rear View DC 5V Micro USB port Antenna Battery compartment Insert 4 x 1.5V AA batteries into battery compartment(4 x 1.5V AA battery not included). CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
  • Page 8: Connecting The Power

    Quick Setup 3.1 Connecting The Power Insert the power adapter to the 5V DC socket on your DAB FM Radio, or insert 4 x 1.5V AA batteries into battery compartment (4 x 1.5V AA battery not included). 2. Insert the power adapter into a suitable mains socket. 3.
  • Page 9: Dab Operation

    Operation DAB Operation 4.1 Full Scan To activate the full scan press the scan button. The unit will search for all available DAB stations. 4.2 Storing Stations You can store up to 10 DAB stations to the memory presets for quick and easy recall of your favourite stations.
  • Page 10: Manual Scan

    4.5 Pruning When the DAB FM radio has performed a Scan in several locations you may find there are stored stations that you can no longer receive. This function automatically removes them from the stored station list. Press and hold the Info/Menu button to enter Prune, then press the Enter/Snooze to confirm and select YES to remove.
  • Page 11: System Settings

    4.9 Recalling A Stored Station Once you saved a station to one of the preset buttons, you can: Press the Preset button and press the Prev/Next buttons to select your desired preset station’s number. Press the Enter/Snooze button to recall a preset station number. 4.10 Station Information On FM Mode Press the Info/Menu button repeatedly to show the different programme information.
  • Page 12: Sleep Setting

    Press the Prev or Next button to change the minute and press the Enter/Snooze button to confirm. Press the Prev or Next button to change the volume and press the Enter/Snooze button to confirm. Press the Prev or Next button to change between Alarm-DAB-FM and press the Enter/Snooze to confirm.
  • Page 13: System Version

    4.17 System Version You can check the software version number. 4.18 FM Scan Set Press the Enter/Snooze button to select Only or All. If select Only, the radio only scan the strong signal station and play. If select All, the radio will also scan the weak signal station and play. 4.19 Resetting The Radio Resetting the radio will delete all the tuned DAB stations and all the preset memory stations in FM and DAB modes.
  • Page 14: Troubleshooting

    Troubleshooting Problem What to do The station is not tuned in. Fine tune the station. No sound The volume is set to a low position. Increase the volume. FM:Static sound Signal reception is too low. Adjust the aerial or move the unit to a stronger DAB+:Burbling/ signal location.
  • Page 15: Technical Specifications

    Technical Specifications 338934 Model Numbel 100 - 240V ~ 50/60Hz Adapter: DC 5V,1000mA Power Supply 4 X 1.5V AA Batteries(not included) Speaker Power 174---240MHz Frequency Range 87.5---108MHz FM mode: 10 Pre-sets DAB mode: 10 195mm(L) x 67.2mm(W) x 90mm(H) Dimensions...
