- Page 1 S120 USB-C SMART BATTERY CHARGER S120 USB-C LADEGERÄT FÜR SMART-AKKUS CHARGEUR DE BATTERIE S120 USB-C SMART CARICABATTERIE SMART USB-C S120...
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product. Meaning of Special Language...
-
Page 3: Warranty Registration
DSM or Spektrum technology. NOTICE: This product is only intended for use with unmanned, hobby-grade, remote-controlled vehicles and aircraft. Horizon Hobby disclaims all liability outside of the intended purpose and will not provide warranty service related thereto. WARRANTY REGISTRATION Visit www.spektrumrc.com/registration today to register your product. - Page 4 • Always disconnect the battery after charging, and let the charger cool between charges. • Always charge in a well-ventilated area. • Always terminate all processes and contact Horizon Hobby if the product malfunctions. • Charge only rechargeable batteries. Charging non-rechargeable batteries may cause the batteries to burst, resulting in injury to persons and/or damage to property.
- Page 5 Not doing so can result in excessive heat and other related product malfunctions, which can lead to user injury or property damage. Please contact Horizon Hobby or an authorized retailer with compatibility questions. CAUTION: If at any time during the charge process the battery pack becomes hot or begins to puff, disconnect the battery immediately and discontinue the charge process as batteries can cause fire, collateral damage and injuries.

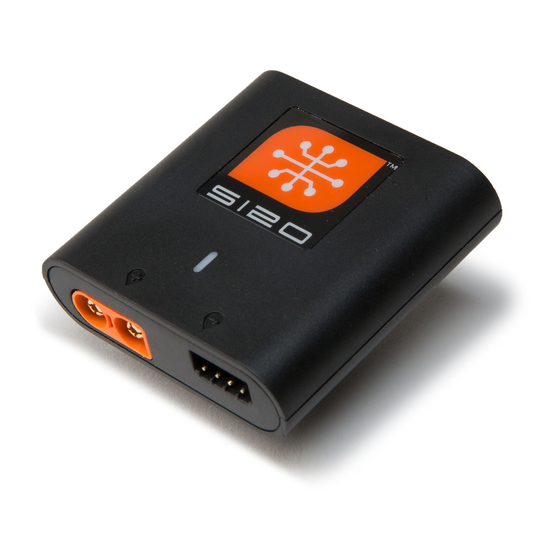

- Page 6 Spektrum S120 SMART Battery Charger The SPMXC1020 SMART Battery Charger is only compatible with Spektrum SMART batteries. The charger can be powered from any USB power supply. Use a USB-C QC type power supply for the quickest possible charge times. USB power supply required (not included) For more information on Spektrum SMART battery technology visit: http://www.spektrumrc.com...
-
Page 7: Led Indicator
LED Indicator Power On – No Battery USB 5V/1A, 5V/2A: White LED Connected USB Quick Charge 2.0/3.0: Blue LED LiPo 2S and 3S Spektrum Battery Capacity Purple LED Smart Battery Less Than 25% Single Flash 25% – 75% Double Flash 76% –... -
Page 8: Operation
Charging Parameters LiPo NiMH Charging Parameters LiPo NiMH Fully Charged Voltage Per Cell 4.2V 1.65V Rated Voltage Per Cell 3.7V 1.2V OPERATION 1. Connect the S120 charger to a USB power supply adapter. 2. Plug the Spektrum SMART Battery IC3 connector into the IC3 charge port on the S120 charger, and plug the battery balancing lead into the charger balance port. -
Page 9: Warranty And Service Contact Information
(iii) modification of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, (vi) Product not compliant with applicable technical regulations, or (vii) use that violates any applicable laws, rules, or regulations. -
Page 10: Warranty Services
Limitation of Liability HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. - Page 11 found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility.
- Page 12 Repair Requests) RequestForm/ United Horizon Product Support (Pro- productsupport@horizonhobby.com States of Champaign, duct Technical Assistance) 877-504-0233 America Illinois, 61822 websales@horizonhobby.com Sales 800-338-4639 Horizon Technischer Service service@horizonhobby.eu Hanskampring 9 D 22885 Barsbüttel, Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100 Germany...
-
Page 13: Compliance Information For The European Union
COMPLIANCE INFORMATION FOR THE EUROPEAN UNION EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the EMC directive. A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/content/support-render-compliance. - Page 14 © 2019 Horizon Hobby, LLC. The Smart Technology logo and IC3 are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
