QUICK START GUIDE

802.11ac wireless access point

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UFO-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Unionvision UFO-01

  • Page 1: Quick Start Guide

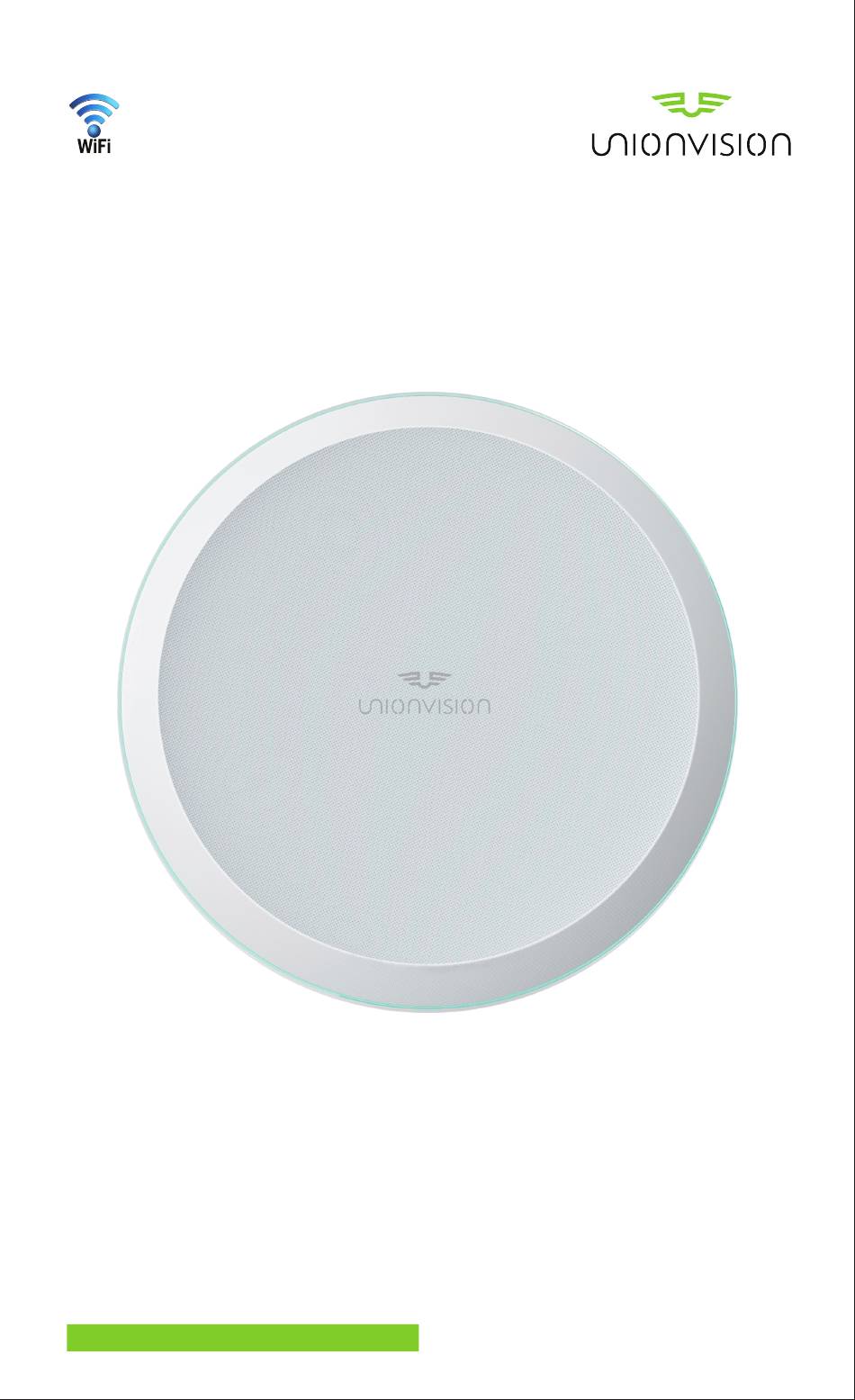

    QUICK START GUIDE 802.11ac wireless access point...

  • Page 2: Product Overview

    Thank you for using the UFO - 01/02. It is a powerful and enhanced business-class product. The UFO - 01/02Access Point includes the Unionvision software that allows you to manage your wireless network using your Web browser or App. PRODUCT OVERVIEW The UFO - 01/02 access points deliver high performance and superb user experience for medium density environments.

  • Page 3: Package Contents

    PACKAGE CONTENTS • UFO-01/02 AP • Wall - mount bracket • Ceiling-mount plate • Flat head screws (M3x40, quantity: 4) • Locknuts (M3, quantity: 4) • Self Tapping Screw (M2.9x20, quantity: 4) • Screw anchor (M3x20, quantity: 4) • PoE Adapter (48V, 0.5A) •...

  • Page 4: Hardware Installation

    HARDWARE INSTALLATION Ceiling-Mount 1. Remove the ceiling tile. 2. Align the ceiling-mount plate to the center of the top side of the ceiling tile. 3. Use a 3.5 mm drill bit to drill holes for the four flat head screws. 4.
  • Page 5 The UFO - 01/02 is powered by the included PoE (Power over Ethernet) adapter. To install the AP, perform the following steps: 1. Connect an Ethernet cable to the Ethernet port on the UFO-01/02 2. Connect an Ethernet cable to the LAN port on your switch to the LAN port of the power adapter.

  • Page 6: Software Installation

    SOFTWARE INSTALLATION The Unionvision software that comes with your UFO - 01/02 has a browser-based interface for easy configuration and management. Or you can download and install the latest version of the UFO-01/02 mobile App. 1. Open your web browser.

  • Page 7: Product Specification

    PRODUCT SPECIFICATION UFO-01 SPECIFICATION Φ180 x H25 Millimeter (Φ7.1 x H0.98") Dimensions 200 g (6.43 oz) Weight Network interface (3) 10/100/1000 Ethernet port reset Power supply method Support 802.3at PoE+ Power PoE switch (not included) Power Save Mode Support PoE output 48V pass-through (pin 4, 5+;...
  • Page 8 UFO-02 SPECIFICATION Millimeter Dimensions Φ180 x H25 (Φ7.1 x H0.98") Weight 200g (12.4 With mounting kit 350 g (15.9 oz) Network interface (2) 10/100/1000 Ethernet port Ports (1) USB 2.0 port reset Power supply method Passive Power over Ethernet(48V), support 802.3at (Support voltage range: 44 to 57VDC) Power 48V, 0.5A Gigabit PoE Power Adapter*...
