Summary of Contents for Malekko QUAD GATE DELAY

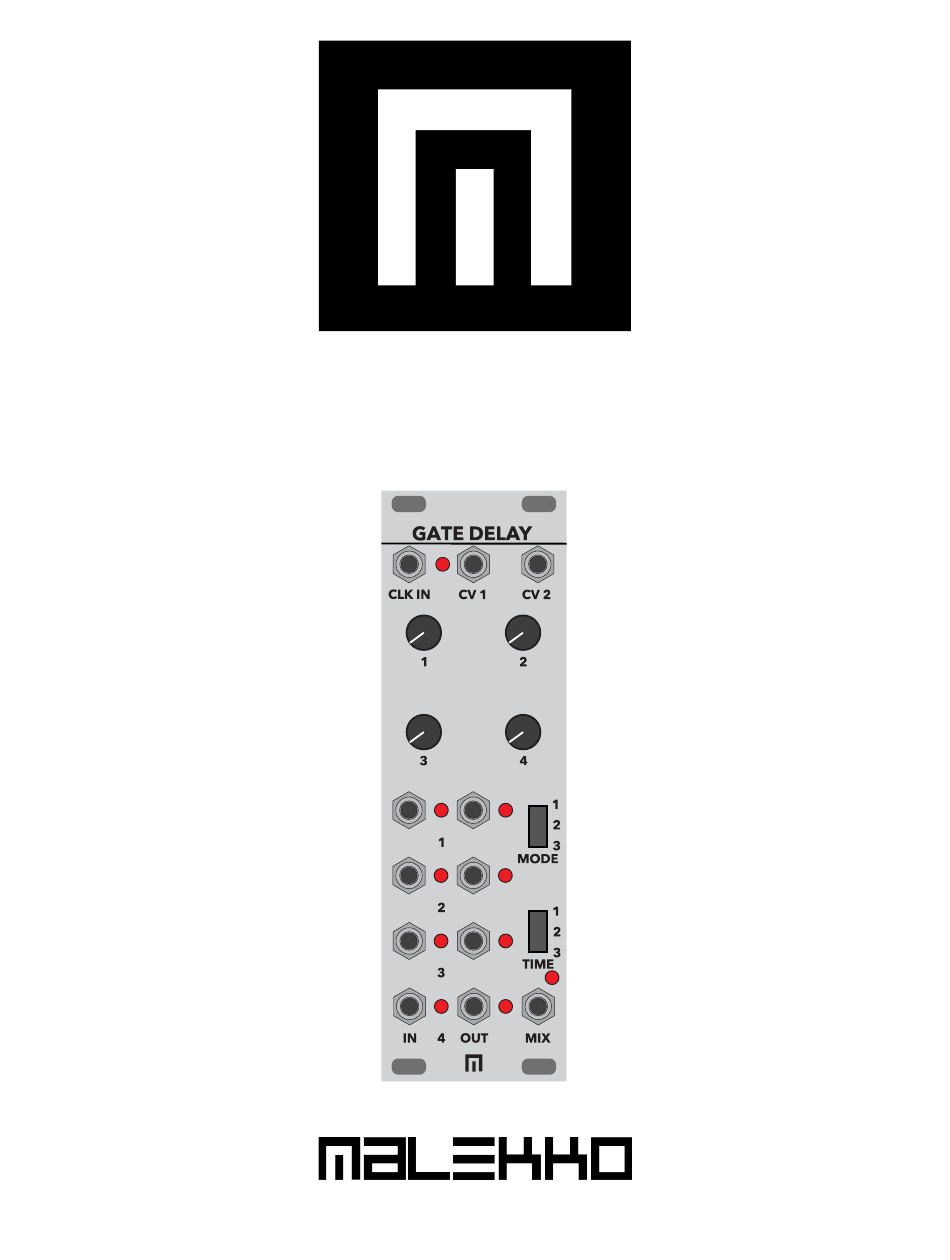

- Page 1 QUAD GATE DELAY MANUAL V1 ww w. m a l ek k o h e a vy i n d u s try.co m 814 SE 14TH AVENUE PORTLAND OR 97214...
-
Page 2: Table Of Contents
QUAD GATE DELAY MANUAL V.1 TABLE OF CONTENTS SPECIFICATIONS INSTALLATION DESCRIPTION OVERVIEW 1 OVERVIEW 2 PATCH EXAMPLE WARRANTY www.malekkoheavyindustry.com... -
Page 3: Specifications
QUAD GATE DELAY MANUAL V.1 SPECIFICATIONS FORMAT: EURORACK DIMENSIONS: 8HP, 23mm deep MAX CURRENT: +12V: 100mA -12V: 20mA PG. 1 www.malekkoheavyindustry.com... -
Page 4: Installation
QUAD GATE DELAY MANUAL V.1 INSTALLATION Remove module from packaging. Power down your modular synthesizer and disconnect the power cable from the wall outlet. Attach the included power cable to the module’s power connector and connect the other end to the power distribution bus in your EuroRack synthesizer case. Match the red stripe of the cable to the solid white line on your Voltage Block. -
Page 5: Description
QUAD GATE DELAY MANUAL V.1 DESCRIPTION The Quad Gate Delay is a 4 channel tempo-synced rhythm generator and logic delay. There are 3 switchable time modes: milliseconds, tempo synced (unquantized), and tempo synced (quantized) with additional manual control over each mode as well as CV inputs over channels 1 &... -
Page 6: Overview 1
QUAD GATE DELAY MANUAL V.1 OVERVIEW 1 CLOCK IN: External CLOCK INPUT. CV INPUTS 1 AND 2: These inputs effect the time of channels 1 and 2 and are unipolar to +5v. MANUAL CONTROLS: Manual control over the delay time of each channel outout. - Page 7 QUAD GATE DELAY MANUAL V.1 OVERVIEW 2 INDIVIDUAL GATE OUTPUTS NORMALLING MODE SWITCH: MODE 1. All inputs only trigger their own channels respectively. Then adjust the delay times for each output using manual knob controls. MODE 2. One gate input on...
-
Page 8: Patch Example
QUAD GATE DELAY MANUAL V.1 PATCH EXAMPLE Connect to your favorite clock Insert CV (from the Malekko (using the Malekko Varigate AD/LFO Module as an 8+ clock out as an example) example) to modulate the TIME of input 1 to create... -
Page 9: Warranty
QUAD GATE DELAY MANUAL V.1 WARRANTY This product is covered by the Malekko Heavy Industry warranty, for one year following the date of purchase. This warranty covers any defect in the manufacturing of this product. This warranty does not cover any damage or malfunction caused by incorrect use – such as, but not limited to, power cables connected backwards, excessive voltage levels, or exposure to extreme tem- perature or moisture levels.
