Tronix 214-175 User Manual

RF Dual Color Remote Controller
Important: Read All Instructions Prior to Installation

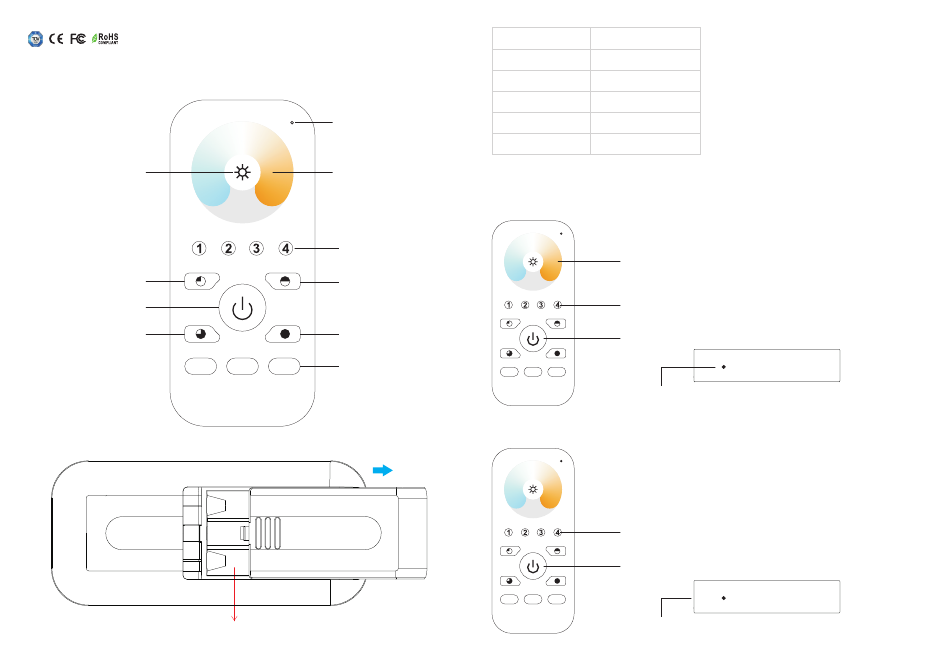

Function introduction

Press and hold down to
increase/ decrease light intensity
25% brightness
Click to turn ON/OFF all zones
75% brightness
S1
4.5V(3xAAA battery)
09.289ST.04165
Indicator: indicate the
state of remote control
Touch color wheel, touch to select
color temperature
Zone numbers:Click to choose
the zone/zones, Press and hold
down to turn on/off corresponding
zone
50% brightness
100% brightness
Press and hold down to save colors;
S2 S3
Click to recall the saved colors
Front side
Bottom side

Product Data

Output
RF signal
Operation Frequency
869.5/916.5/434MHz
Power Supply
4.5V(3xAAA battery)
Operating temperature
0-40°C
Relative humidity
8% to 80%
Dimensions
120x55x17mm
Safety & Warnings
• This device contains AAA batteries that shall be stored and disposed properly.
• DO NOT expose the device to moisture.

Pair with RF receiver(Method 1)

Step 1:Do wiring the RF receiver according to wiring diagram(please refer to the
instruction of RF receiver that you would like to pair with.
Step 5:Touch the color wheel, LED lights connected with the RF receiver flicker
once means the receiver is paired with zone 4 successfully.
Step 4:Choose and click a zone number(e.g. zone 4)
Step 2:Click ON/OFF button to activate the remote
S1 S2 S3
Step 3:Click the "Learning Key" button on RF receiver or re-power on the receiver
three times continuously to set it into pairing status

Pair with RF receiver(Method 2)

Step 1:Do wiring the RF receiver according to wiring diagram(please refer to the
instruction of RF receiver that you would like to pair with.
Step 4:Choose and click a zone number(e.g. zone 4) twice, then press and hold it
continuously and quickly within 10 seconds, LED lights connected with the RF receiver
flicker once means the receiver is paired with zone 4 successfully.
Step 2:Click ON/OFF button to activate the remote
S1 S2 S3
Step 3:Power off and power on the receiver
• Control 4 zones of RF receivers separately.
• CCT color controller
• High sensitive & high stable, fast & precise color control.
• Compatible with all universal series RF receivers
• 1 receiver can be paired by max 8 different remote controls.
• Waterproof grade: IP20
