Orno OR-NL-379WLR5 Installation Instructions

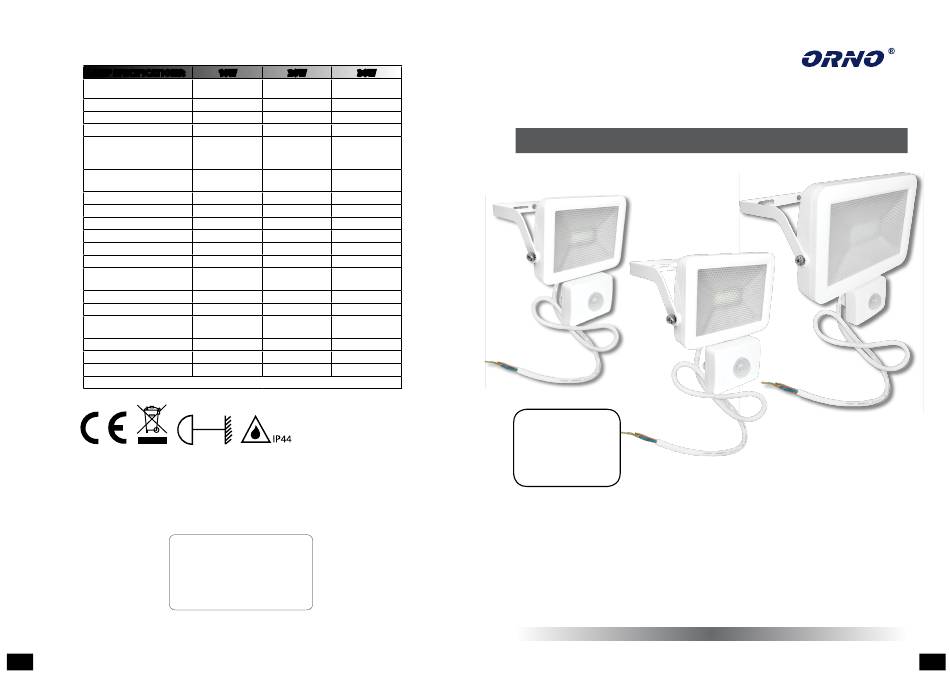

LAMP SPECIFICATIONS:
Lumens total flux
Rated Wattage
Nominal life time of the lamp
Colour temperature
Number of switching cycles
before premature lamp
failure
Warm-up time up to 60 % of
the full light output
Dimmable
LED array dimensions (L/H)
Nominal beam angle
Rated power
Rated lamp lifetime
Lamp power factor
Lumen maintenance factor at
end of nominal life
Starting time
Colour rendering
Colour consistency
Rated peak intensity
Rated beam angle
Voltage
Not suitable for accent lighting
PG 6
OR-NL-379WLR5 OR-NL-380WLR5 OR-NL-392WLR5
OR-NL-379GLR5 OR-NL-380GLR5 OR-NL-392GLR5
10W 20W 30W
700 lm 1400 lm 2100 lm
10W 20W 30W
25 000 hrs 25 000 hrs 25 000 hrs
5000K 5000K 5000K
15,000 15,000 15,000
Instant full light Instant full light Instant full light
No No No
40 x 15mm 70 x 15mm 60 x 25mm
120° 120° 120°
10W 20W 30W
25 000 hrs 25 000 hrs 25 000 hrs
>0.5 >0.5 >0.9
70% 70% 70%
<0.5s <0.5s 0.5s
>80 >80 >80
Within 6 step Within 6 step Within 6 step
Macadam ellipse Macadam ellipse Macadam ellipse
231.45cd 450cd 720cd
120° 120° 120°
85-265V~ 85-265V~ 85-265V~
1M
PRODUCENT
ORNO-LOGISTIC
Sp. z o.o.
ul. Katowicka 134
43-190 Mikołów
tel. 32 43 43 110
www.orno.pl
INSTALLATION INSTRUCTIONS
A guide for qualified electricians
10W
Pack contents:
1 x LED floodlight with
PIR complete with 3 core
1.0mm x 0.8m rubber 2
cable and quick fix Model:
mounting bracket
10W / 20W / 30W LED Floodlights With PIR
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
20W
30W
PG 1
