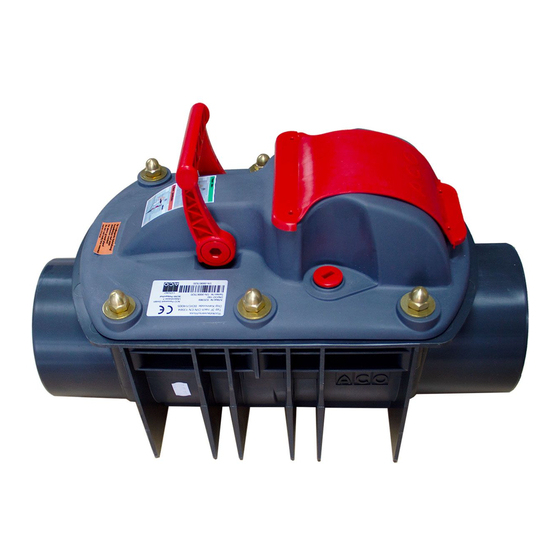

Summary of Contents for ACO Haustechnik ACO Quatrix-K Series

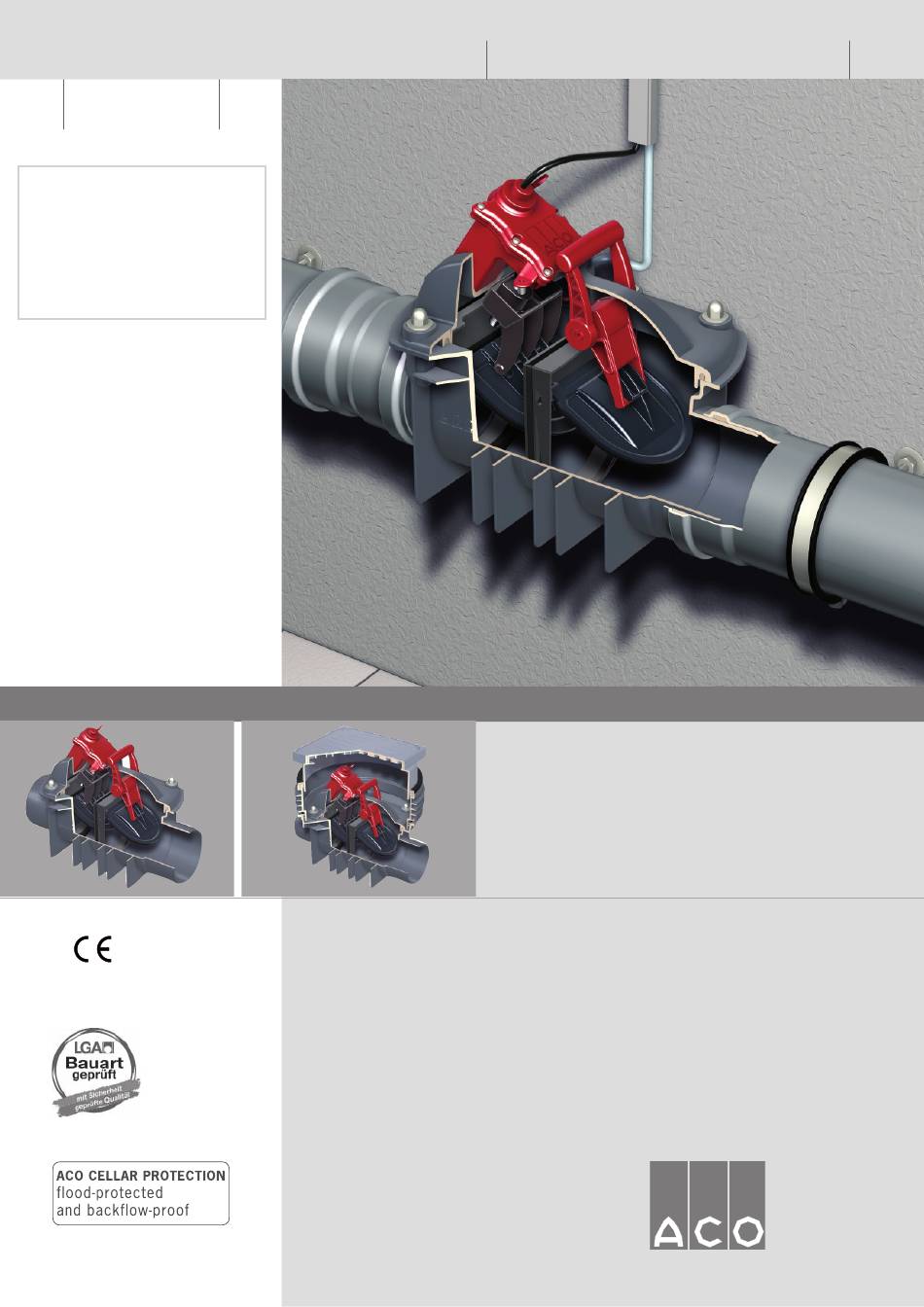

- Page 1 ACO H a u s t e c h n i k I n s t a l l a t i o n i n f o r m a t i o n (Stamp) 0173.02.59 G As per 07/2010 ACO Quatrix-K above ground pipes DIN EN 13564 ACO Quatrix-K installation in the base plate...
-
Page 2: Table Of Contents
Contents Chapter Page(s) Product Identification Addresses EC Conformity declaration General Notes Field of application of installation, operating and maintenance manual Use of backflow stops General notes Legal aspects Safety notes Type / Scope of supply Application scopes / Function Diagram of emergency seal Installation Installation site Gradient... -
Page 3: Product Identification
ACO Haustechnik 0 1 7 3 . 0 2 . 5 9 G Product identification Addresses Name and address of the manufacturer Name and address of the electrician ACO Passavant GmbH _________________________ Postfach 11 62 _________________________ 36267 Philippsthal _________________________ Ulsterstraße 3... -
Page 4: Ec Conformity Declaration
DIN EN 13564-3:2004 DIN 1986-100:2008-05 DIN EN 1451-1:1999 DIN EN 61000-6-2:2005 DIN EN 55011:2007 Competent documentary agent: Marco Eulenstein ACO Haustechnik Im Gewerbepark 11 c 36457 Stadtlengsfeld 36269 Philippsthal, September 2008 ACO Passavant GmbH Date, January 2009 R. Sand General Manager... -
Page 5: General Notes
ACO Haustechnik 0 1 7 3 . 0 2 . 5 9 G General notes 2.1 Field of application of installation, operating and Supplements The operator of the plant must supplement the operating manual maintenance manual with instructions on existing national regulations for accident preven- This manual is effective for the AC0 anti-flood protection system tion and environmental protection. -
Page 6: Type / Scope Of Supply
The control device must be fitted in such a way that all signals are noti- Prior to working at the control or at the water installations, ced by the plant user. This ensures that in case of a closed valve, the isolate from mains electrical supply. -
Page 7: Diagram Of Emergency Seal
ACO Haustechnik 0 1 7 3 . 0 2 . 5 9 G 2.8 Diagram of the emergency seal 1. Flap - open - 2. Flap - closed - Click! Fig. 4.1 Fig. 4.2 1. Flap - open -: 2. Flap - closed -: Flap open (normal condition), water drains off, the valve closes Flap closed, water cannot drain off. -
Page 8: Installation In Frost-Proof Pipes (Without Shaft System)
3.3 Installation in above ground pipes (without shaft system) 1. Fix body in local shaft or freely accessible e. g. at wall. Caution! Do not cast body into concrete. 2. Fit body in flow direction and align horizontally. Body may not be installed tilted - neither to the side nor to the front or to the back Fig. -
Page 9: Installation In The Base Plate (With Shaft System)
ACO Haustechnik 0 1 7 3 . 0 2 . 5 9 G 3.4 Installation in the base plate (with shaft system) 1. Apply granular sub-grade course (e. g. sand) to ground. Fit body in flow direction and align horizontally. Body may not be installed tilted - neither to the side nor to the front or to the back (fig. - Page 10 6. In case of need: Fit extension piece (art. no. 620381) to body. Lip seal of body must seat properly. In order to achieve a minimum coverage of the WU concrete (impervious to water), the sealing flange (art. no. 620382) can be fitted stepwise to the various grooves (fig.
-
Page 11: Motor Fitting
ACO Haustechnik 0 1 7 3 . 0 2 . 5 9 G 3.5 Motor fitting 1. Before motor is fitted, ensure that the valve flap is 90% open (manu- close ally open flap completely one time, close with 3 turns to the right). - Page 12 1. Displays and push-buttons (fig. 26) The control is equipped with a display consisting of four light-emit- ting diodes, an operation unit (two push-buttons) as well as an audi- ble signal transmitter. The function of the light-emitting diodes and push-buttons is explained in the following: 1.1 Green light-emitting diode: Power status The light-emitting diode indicates respective power status.
- Page 13 ACO Haustechnik 0 1 7 3 . 0 2 . 5 9 G Battery 2.1. Behaviour in case of battery fault 3.4 Battery warning Establish mains connection and wait. Battery faults always occur With every run of the flap, the battery is checked. In case of a low bat- with insufficient charging condition of the battery or with a dama- tery capacity, a warning signal is given (LED 4 flashes slowly).
-
Page 14: Electrical Installation / Works Settings
ACO Haustechnik 0 1 7 3 . 0 2 . 5 9 G Electrical installation / Works settings Connection must be carried out by a specia- list contractor; VDE regulations (0100,0113) must be adhered to 1. Fit the control at the intended location. The control housing has to be fixed with 2 bolts. - Page 15 ACO Haustechnik 0 1 7 3 . 0 2 . 5 9 G 2.5 Battery connection: The fault transmitter contact closes in case Batt. Cable Terminal strip The battery is already connected. If a battery exchange is required, this of a fault signal. During configuration of the contacts care has to be taken that a max.
-
Page 16: Commissioning
Commissioning 1. Commissioning Commissioning can be compared to the switching on process. If the green diode lights up after initialisation was completed, commissio- ning is completed (fig. 30). Fig. 30 2. Operational check Control, operating seal flap and emergency seal flap have to be checked for tightness and function. - Page 17 ACO Haustechnik 0 1 7 3 . 0 2 . 5 9 G 2.3 Tightness test Remove locking bolt from test connection and insert test funnel. Fig. 35 Fill with clear water up to upper edge of test pipe (100 mm).
- Page 18 Shake pressure hose several times and connect airtightly to hose coupling at cover. Fig. 41 Remove test pipe and insert test screw. Fig. 42 Open the emergency seal. Fig. 43 The Quatrix-K is again ready for operation. Subject to technical alterations...
-
Page 19: Operation
ACO Haustechnik 0 1 7 3 . 0 2 . 5 9 G Operation Caution! After initial connection and depending on loading condition of bat- tery, entire operational capability is reached only after 24 hours of mains operation. Behaviour in the case of battery fault Establish mains connection and wait. - Page 20 Check and clean cover seal and backflow flap seal and exchange, if required. Rinse body. Fig. 46 Re-insert valve flap and emergency seal flap in body; observe seating of seals. Aligh lever for emergency seal vertivally so that lever can slide in guide (detail “X”).
-
Page 21: Spare Parts / Accessories
ACO Haustechnik 0 1 7 3 . 0 2 . 5 9 G Spare parts / Accessories Product Illustration Art. no. ACO control device 620376 for automatic anti-flood protection system Quatrix-K type 3F. DN 100/DN 150. Extension kit (10 m) - Page 22 Extension elements for recessed installation If an anti-flood protection system must be installed recessed to a large extent because of structural conditions, the shaft systems of the ACO anti-flood protection systems can be retrofitted without problems with optionally available extension pieces for recessed installation. In case of need, max.
-
Page 23: Technical Data - Suggested Installations
ACO Haustechnik 0 1 7 3 . 0 2 . 5 9 G Technical data / Suggested installations 10.1 Technical data Quatrix-K for installation in above ground pipe ∅ (mm) Art. no. L (mm) H1 (mm) 620368 620486 620369 Quatrix-K with shaft system for installation in the base plate 360 x 300 ∅... - Page 24 10.2 Suggested installations Quatrix-K for installation in above ground pipe Control Control line ACO automatic anti-flood protection system QUATRIX-K, DN 150 Tiles for above ground pipes Base plate Ground Quatrix-K with shaft system for installation in the base plate Control Mains connection Tiles Control line...
-
Page 25: Inspection Log Book
ACO Haustechnik 0 1 7 3 . 0 2 . 5 9 G Inspection log book Date Works carried out Carried out by: Subject to technical alterations... - Page 26 ACO Haustechnik 0 1 7 3 . 0 2 . 5 9 G Date Works carried out Carried out by: Subject to technical alterations...
- Page 27 ACO Haustechnik 0 1 7 3 . 0 2 . 5 9 G Date Works carried out Carried out by: Subject to technical alterations...
-
Page 28: Maintenance Contract
Maintenance contract A maintenance contract covering regular maintenance is closed between the following undersigned parties. Ordering party: Consignee: Beginning of contract: Product description: Scope of supply: According to DIN EN 13564, anti-flood protection systems should be serviced twice a year by specialist per- sonnel. -
Page 29: Warranty
ACO Haustechnik 0 1 7 3 . 0 2 . 5 9 G Excerpt from the Sales Terms and Delivery Conditions ACO Passavant GmbH 1. General 2. Price and payment 3. Time of delivery, delivery delays 4. Dispatch, transfer of risk, acceptance 5. -
Page 30: Aco Subsidiaries
ACO subsidiaries Germany Bulgaria France ACO Passavant GmbH ACO Building Elements LTD ACO Produits Polymères S.A. Ulsterstraße 3 119, "Iliyanci" BLVD. "Le quai à bois", B.P. 85 36269 Philippsthal BG- 1220 Sofia F - 27940 Notre Dame de l'Isle Telephone 0049 6620 / 77 - 0 Tel. - Page 31 ACO Haustechnik 0 1 7 3 . 0 2 . 5 9 G Internet www.aco.com.ua Norway Slovenia Plastmo A/S ACO gradbeni elementi, Eternittveien 30 zastopanje, d.o.o. United Kingdom N - 3470 Slemmestad Obrtnika ul. 9 ACO Technologies plc Telephone 00 47/66 98 74 50...
- Page 32 0 1 7 3 . 0 2 . 5 9 G As per: 07/2010 Origin: German manual ACO Passavant GmbH Im Gewerbepark 11c 36457 Stadtlengsfeld Tel. ++49 (0) 36965 819–0 Fax ++49 (0) 36965 819–361 www.aco-haustechnik.de The ACO Group. A strong family you can build on.
