TTF AG T1 User Manual

Agriculture drone

Advertisement

Quick Links

Agriculture Drone T1 User Manual
AG Drone T1
User Manual
Shenzhen TitanFlying Technology Co., Ltd
www.titanflying.com
1
2018 TTF All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AG T1 and is the answer not in the manual?

Questions and answers

Summary of Contents for TTF AG T1

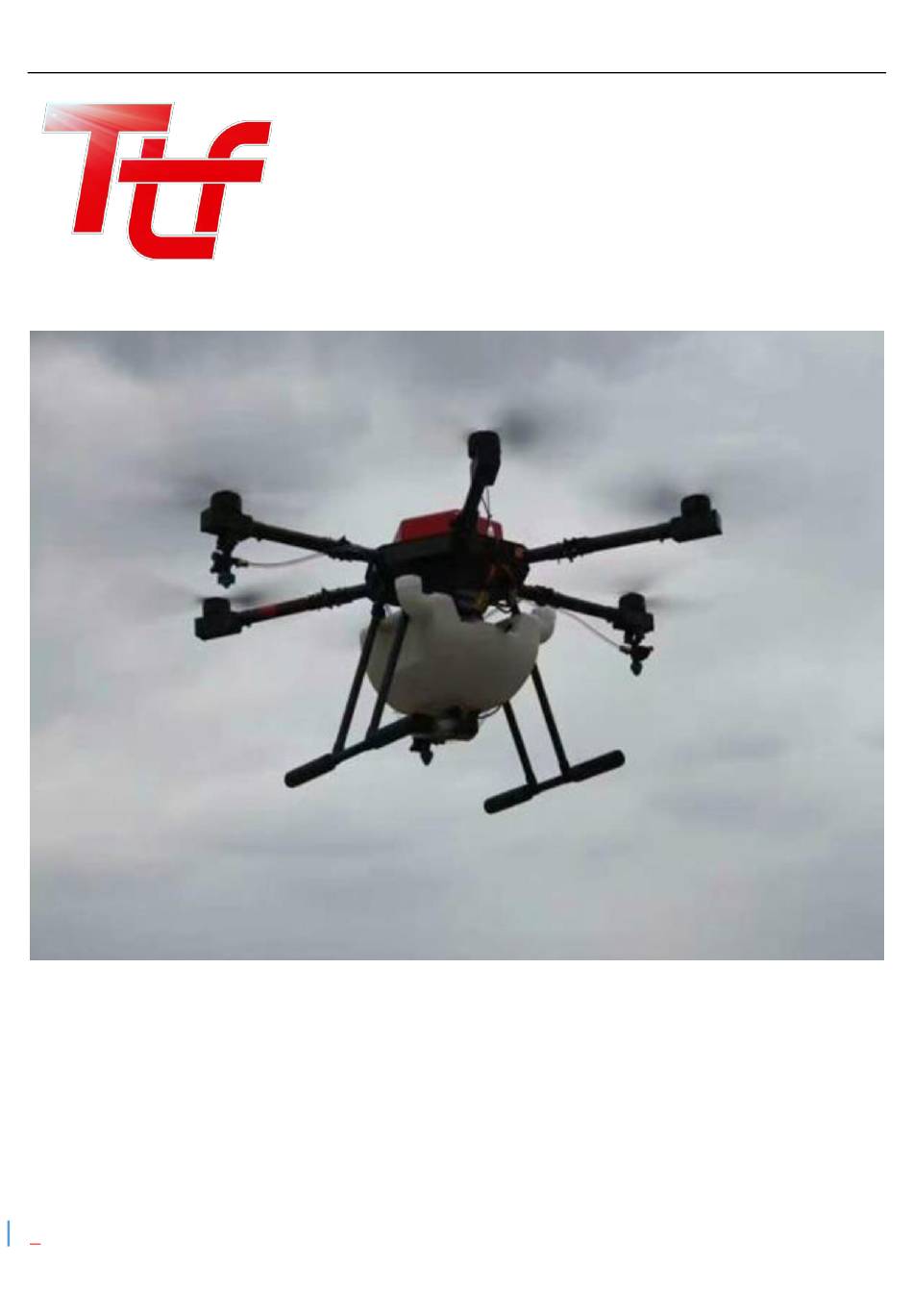

  • Page 1 Agriculture Drone T1 User Manual AG Drone T1 User Manual Shenzhen TitanFlying Technology Co., Ltd www.titanflying.com 2018 TTF All Rights Reserved...
  • Page 2: Hints And Tips

    Refer to in the Box to check the listed parts, and read the Disclaimer and Safety Guidelines before flight. Refer to the Quick Start Guide and the video tutorial on the official TTF website to complete assembly and to learn basic operation. Please refer to the User Manual for more comprehensive information.
  • Page 3: Safety At A Glance

    DO NOT use the Com bination Stick Command (CSC) or other methods to stop the motors when the aircraft is airborne unless in an emergency situation. • DO NOT answer incoming calls during flight. • DO NOT fly under the influence of alcohol or drugs. • During the Return-to-Home procedure, you can adjust the altitude to avoid obstacles. 2018 TTF All Rights Reserved...
  • Page 4: Items List

    0.98 inches in 12 hours), wind speeds exceeding 8 m/s, fog, snow, and lightning. 4. Stay away from the rotating propellers and motors. Items List 1. AG Drone T1 1PCS 2. Remote Controller 1PCS 2018 TTF All Rights Reserved...
  • Page 5 Mounting the battery Remote Controller Profile Using the Remote Controller Remote Controller LEDs Calibrating the Compass Operation Procedure Manual Operation Mode AB Points Operation Mode The APP Lithium Battery Maintenance and Use Aircraft LEDs Disclaimer 2018 TTF All Rights Reserved...
  • Page 6: Feature Highlights

    The product is calibrated ready. Users only need to put the battery on. (Note: Please connect the wire from right to left, black-red-black-red. When users uninstall the battery, disconnect the wire from left to right, red-black-red-black). △ PLEASE DO NOT CONNECT / DISCONNECT THE WIRE IN WRONG ORDER! 2018 TTF All Rights Reserved...
  • Page 7: Remote Controller Profile

    Profile The aircraft remote control system operates at 2.4 GHz. Stick mode can be set to Mode1, Mode2, our standard version is Mode1, please contact with TTF if you need Mode2 version, modification will be completed before delivery. Mode1 (American hand)
  • Page 8: Using The Remote Controller

    Mode 2 is with GPS function and easier to be operated. Mode 1 is not indicator blinks in red, green and yellow alternately, to eliminate the recommended for new flyer. records of AB points. 7 Blank Channel 13 Display Bracket 2018 TTF All Rights Reserved...
  • Page 9: Remote Controller Leds

    Hold the aircraft upright and rotate it 360° along its central axis until the Aircraft Status Indicator changes from solid yellow to solid green. Hold the aircraft with its nose facing up and rotate it 360° along its central axis. 2018 TTF All Rights Reserved...
  • Page 10: Operation Procedure

    Wait until the indicator shows normally, uninstall the battery and reinstall it. It's normal that aircraft inclines under GPS mode, because of terrain and the balance of gravity center. Open the water pump channel on remote control after taking off, to start plant protection operation. 2018 TTF All Rights Reserved...
  • Page 11 Maintain line of sight of the aircraft at all times. Set the flight mode switch to P when the signal is strong. Otherwise, AB points operation mode may be unreliable. Always inspect operating environments before flying. 2018 TTF All Rights Reserved...
  • Page 12 Long press the channel 8 is one-key return. (not recommended for this operation is easy to be interfered). The APP The APP is designed for agricultural applications and is able to display the system status and configure various settings. After planning a task via the app’s intelligent operation planning system. Main Interface 2018 TTF All Rights Reserved...
  • Page 13 8m/s when flow is 2L/min.) Under this data setting, 1L Liquid can be used for 666 ㎡. 3. Save the data Note: DO NOT modify other parameters, TTF assumes no liability for improper modification. How to set the broadcast and cell phone vibration function...
  • Page 14 Check the voltage of each cell of battery. If it is lower than normal voltage 3.3V/S or the voltage of each cell is unbalanced, then there is quality problem of this battery. Battery: DO NOT over discharged or short circuit. DO NOT discharge when temperature is too high or too low. Pay attention to protecting the voltage. 2018 TTF All Rights Reserved...
  • Page 15 IMU Excessive Vibration / Abnormal Red, Yellow Blink Alternately High Other Status Indicator Status Priority Battery Initialization Red, Green, Yellow Blink Alternately High Unlock Red, Green, Yellow Blink Alternately High Unlock Failed Solid Red Light High 2018 TTF All Rights Reserved...
  • Page 16 This product is not suitable for minors under 18 years of age. DO keep away from the crowd and vulnerable, fragile and dangerous items during flight, TTF Tech does not assume responsibility because of the following causes personal injury, property damage, etc. (including direct or indirect damage) Operator causes damage in case of poor health or mental condition, such as alcohol, drug abuse, narcotic drugs, dizziness, weakness, nausea, etc.
