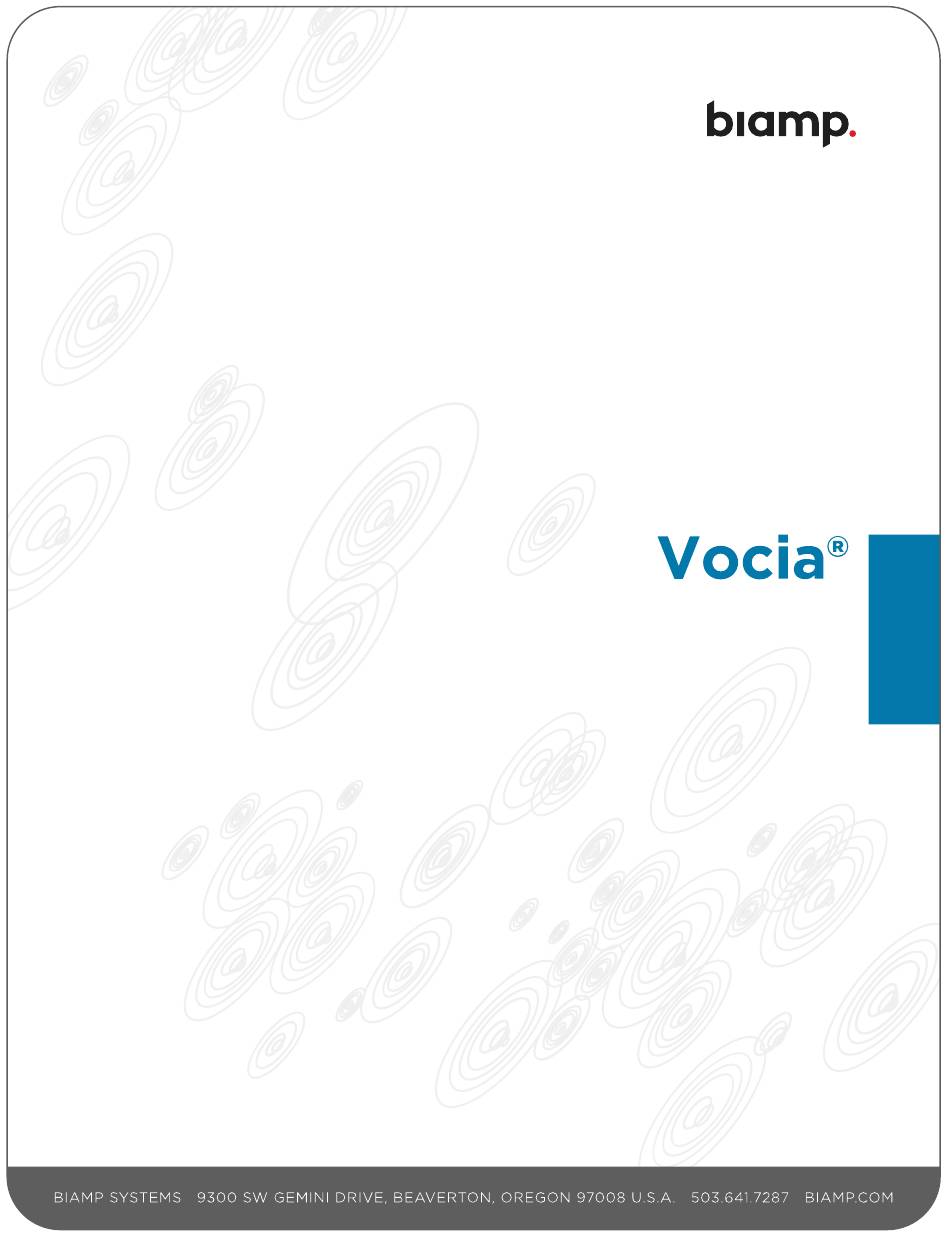

CI-1 OPERATION MANUAL May 2019 585.0279.90B...
Page 2
CI-1 Product Description The CI-1 Control Interface is a companion product to the Vocia LSI-16 Life Safety Interface. It facilitates necessary connections to the LSI-16/LSI-16e to meet EN 54-16 standards.
Page 3
CI-1 Setup and Installation Setup and Use The CI-1 interfaces directly to LSI-16(e) devices and external equipment. NOTE: To operate correctly, the CI-1 requires an accompanying LSI-16(e) plus connections to external components and devices as described in this manual. The CI-1 should be mounted in close proximity to the accompanying LSI-16(e). For EN 54-16 compliance, refer to the Vocia VACIE Reference Guide which details mandatory installation requirements.
Page 4
CI-1 Front Front Panel Information The CI-1 has three switches on the front panel and an internal (local) sounder, audible through the panel. Local Sounder The local sounder commence whenever any alarm input receives an external signal from the fire detection equipment, control and indicating equipment (CIE) or equivalent.
Page 5
CI-1 Rear Connections There are four main interconnection paths to the rear panel: Conections to the fire detection system (CIE) • Connections from external devices for fault indications • Connections to the LSI-16(e) • Power supply connections • Each of these connection paths has several circuits as detailed below. CIE (Fire Detection System) Connections Isolated Ground provides a circuit return that is not directly connected to the CI-1 and LSI-16(e) Ground.
Page 6
Connections from External Devices for Fault Indications These circuits are provided on a single five-position plug-in barrier strip connector. All Inputs are fully isolated from the CI-1 and LSI-16(e) internal circuits. The Isolated Ground provides a circuit return that is not directly connected to the CI-1 and LSI-16(e) Ground.
