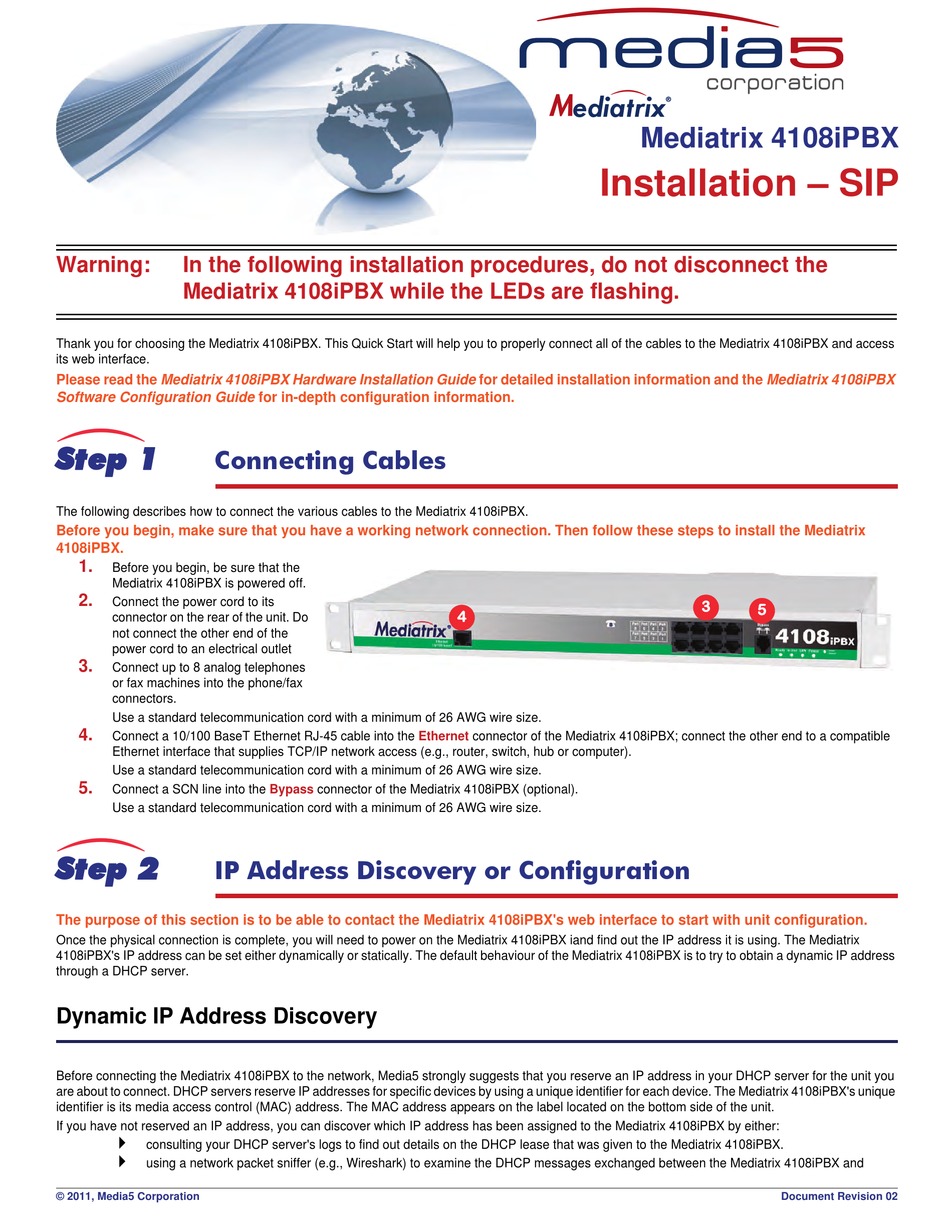

Media5 Mediatrix 4108iPBX Quick Start Booklet

Warning: In the following installation procedures, do not disconnect the
Mediatrix 4108iPBX while the LEDs are flashing.
Thank you for choosing the Mediatrix 4108iPBX. This Quick Start will help you to properly connect all of the cables to the Mediatrix 4108iPBX and access
its web interface.
Please read the Mediatrix 4108iPBX Hardware Installation Guide for detailed installation information and the Mediatrix 4108iPBX
Software Configuration Guide for in-depth configuration information.
Step 1
Connecting Cables
The following describes how to connect the various cables to the Mediatrix 4108iPBX.
Before you begin, make sure that you have a working network connection. Then follow these steps to install the Mediatrix
4108iPBX.
1.
Before you begin, be sure that the
Mediatrix 4108iPBX is powered off.
2.
Connect the power cord to its
connector on the rear of the unit. Do
not connect the other end of the
power cord to an electrical outlet
3.
Connect up to 8 analog telephones
or fax machines into the phone/fax
connectors.
Use a standard telecommunication cord with a minimum of 26 AWG wire size.
4.
Connect a 10/100 BaseT Ethernet RJ-45 cable into the
Ethernet interface that supplies TCP/IP network access (e.g., router, switch, hub or computer).
Use a standard telecommunication cord with a minimum of 26 AWG wire size.
5.
Connect a SCN line into the
Use a standard telecommunication cord with a minimum of 26 AWG wire size.
Step 2
IP Address Discovery or Configuration
The purpose of this section is to be able to contact the Mediatrix 4108iPBX's web interface to start with unit configuration.
Once the physical connection is complete, you will need to power on the Mediatrix 4108iPBX iand find out the IP address it is using. The Mediatrix
4108iPBX's IP address can be set either dynamically or statically. The default behaviour of the Mediatrix 4108iPBX is to try to obtain a dynamic IP address
through a DHCP server.

Dynamic IP Address Discovery

Before connecting the Mediatrix 4108iPBX to the network, Media5 strongly suggests that you reserve an IP address in your DHCP server for the unit you
are about to connect. DHCP servers reserve IP addresses for specific devices by using a unique identifier for each device. The Mediatrix 4108iPBX's unique
identifier is its media access control (MAC) address. The MAC address appears on the label located on the bottom side of the unit.
If you have not reserved an IP address, you can discover which IP address has been assigned to the Mediatrix 4108iPBX by either:

consulting your DHCP server's logs to find out details on the DHCP lease that was given to the Mediatrix 4108iPBX.

using a network packet sniffer (e.g., Wireshark) to examine the DHCP messages exchanged between the Mediatrix 4108iPBX and
© 2011, Media5 Corporation
Ethernet
Bypass connector of the Mediatrix 4108iPBX (optional).
ediatrix
Installation – SIP
4
connector of the Mediatrix 4108iPBX; connect the other end to a compatible
Mediatrix 4108iPBX
3
5
Document Revision 02
