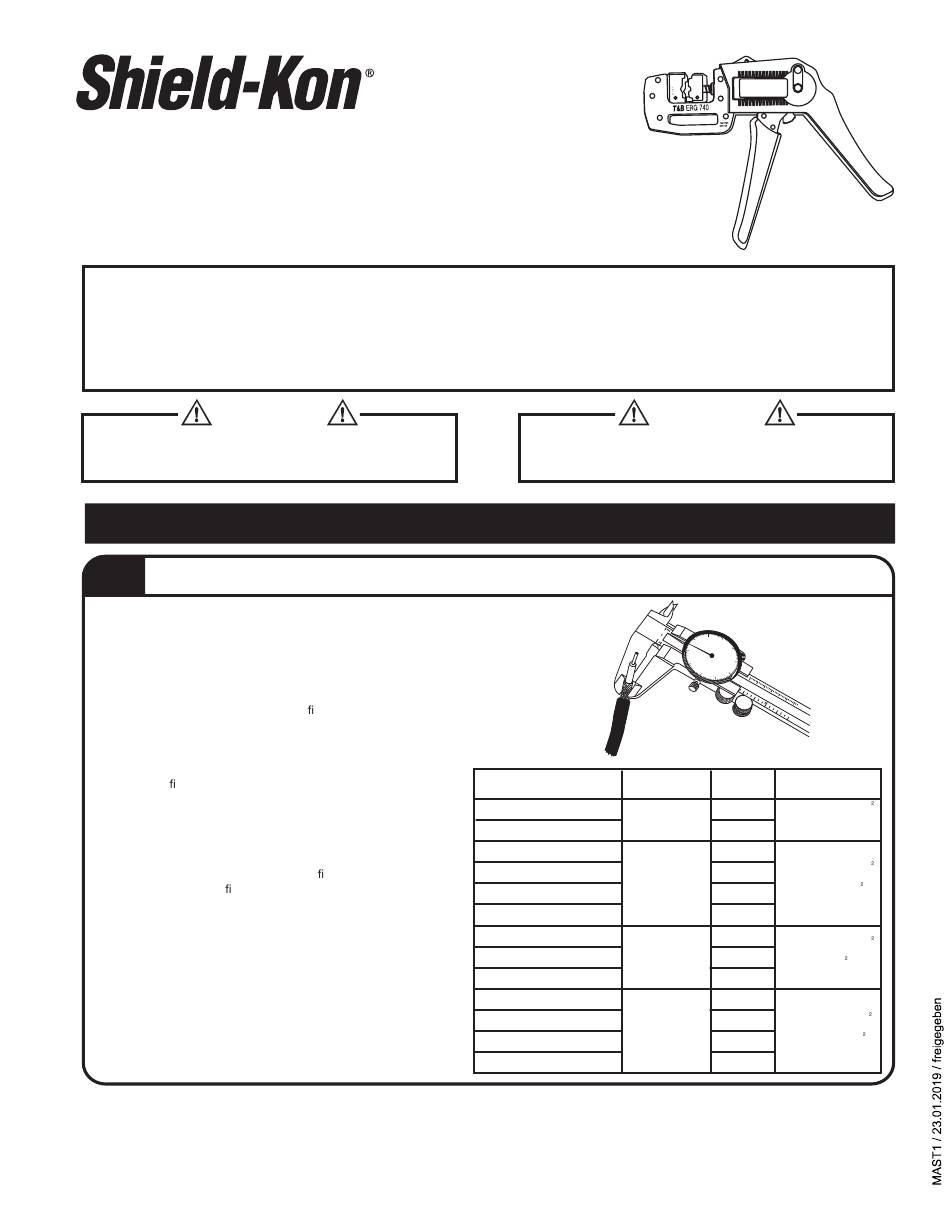

ERG740 ERGONOMIC HAND TOOL
OPERATING INSTRUCTIONS
for RSK Series Wrap Around Connectors
IMPORTANT: Read and understand all of the instructions and safety information in this
manual before operating or servicing this tool.
INTENDED USE: Wrap around connectors have been designed to ground the shield of single
or multiple conductor shielded cables. It Is suggested that the customer evaluate the suitability
of these connectors and verify their performance for the particular application .
WARNING
KEEP ALL BODY PARTS AWAY FROM DIE NEST
DURING GAGING OR CRIMPING PROCEDURE.
1
1. Measure the diameter of the cable shield using a calibrated
measuring tool or the RSK gauge (part number RSK-LEHRE)
which is in the tool case lid. Rotate the cable in order to
locate the maximum shield diameter. Exert only light
pressure on the cable to get an accurate measurement, see
Figure. 1.
When using the RSK gauge , try to nd the appropriate slot
in the gauge by ensuring that the cable only goes in the top
of the slot. If the cable goes completely to the bottom of
the slot, you should try the cable in the smaller adjacent
slot.
Once you nd the appropriate slot, you can read the
associated RSK connector by the color of the slot and the
appropriate die by the number marked below the slot.
2. For twisted pair and other non-symmetrical shielded
cables, measure the dimension of the major axis or the
largest width of the cable.
When you use the RSK gauge, try to nd the appropriate
slot in the gauge by tting the largest width of the cable
into the slot. Similar to step 1, if the cable goes completely
to the bottom of the slot, try the next smaller adjacent slot.
3. Once the shield diameter is established, refer to Table 1 for
the appropriate connector and installing die.
TA04632 B Page 1 of 2
OPERATING INSTRUCTIONS
MATCHING THE CONNECTOR AND DIE TO THE CABLE
WARNING
HANDLES ARE NON-INSULATING.
DO NOT CRIMP ON HOT ENERGIZED WIRES.
TABLE 1
CONNECTOR CAT.
DIAMETER OF SHIELD
NO. & CODE
(1.27 - 1.79 mm) .050 - .070 in.
RSK101 or
RSK5101
(1.80 - 2.28 mm) .071 - .089 in.
RED
(2.29 - 2.55 mm) .090 - .100 in.
RSK201 or
(2.56 - 3.00 mm) .101 - .118 in.
RSK5201
(3.01 - 3.34 mm) .119 - .131 in.
BLUE
(3.35 - 3.65 mm) .132 - .143 in.
(3.66 - 4.13 mm) .144 - .162 in.
RSK301 or
RSK5301
(4.14 - 4.71 mm) .163 - .185 in.
YELLOW
(4.72 - 5.12 mm) .186 - .201 in.
(5.13 - 5.86 mm) .202 - .230 in.
RSK401 or
(5.87 - 6.36 mm) .231 - .250 in.
RSK5401
(6.37 - 7.00 mm) .251 - .275 in.
GREEN
(7.01 - 7.62 mm) .276 - .300 in.
FIGURE 1
90
0
80
10
70
20
60
30
50
40
DIE CAT. NO
GROUND WIRE
(STEEL)
RANGE
1 OR 2 PIECES 0.25mm
D-101A
#24 AWG STR
OR 1
D-101B
#22 AWG STR
D-201C
1 OR 2 PIECES 0.25mm
D-201D
#22 AWG STR
or 1 PIECE 0.5mm
D-201E
#20 AWG STR
D-201F
D-301G
1 OR 2 PIECES 0.25mm
#22 AWG STR
D-301H
1 PIECE 0.5mm OR 2
#20 AWG STR
D-301J
D-401K
1 OR 2 PIECES 0.5mm
D-401L
#20 AWG STR
or 1 PIECE 0.75mm
D-401M
#18 AWG STR
D-401N
