Elmos HALIOS E909.06 Gesture Evaluation Kit V3 Quick Start Manual

E909.06 HALIOS® Gesture Evaluation Kit V3 - Quick Start Guide

Aug 13, 2015

1 Description

This evaluation kit (Order No. KI-1210003) is designed to provide you the most quick and easy approach to the HALIOS® tech-

nology based on Elmos IC E909.06.

A typical HALIOS® application consists of optics, electronics and software. While the majority of electronics and software are

covered by the IC and its firmware, the evaluation kit supports you with examples for optic design and a ready-to-use devel-

opment environment. Power supply of the hardware is established via USB or with an alternative external power supply (not

included with the evaluation kit). Use this kit for an easy analysis of gestures and the positioning of the sensors.

2 Materials provided

1x baseboard containing IC E909.06

2x gesture head

1x dual head adapter, sender PCB

1x dual head adapter, receiver PCB

1x USB cable

1x USB stick, containing the HACo development tool, software, documentation etc.

Elmos Semiconductor AG

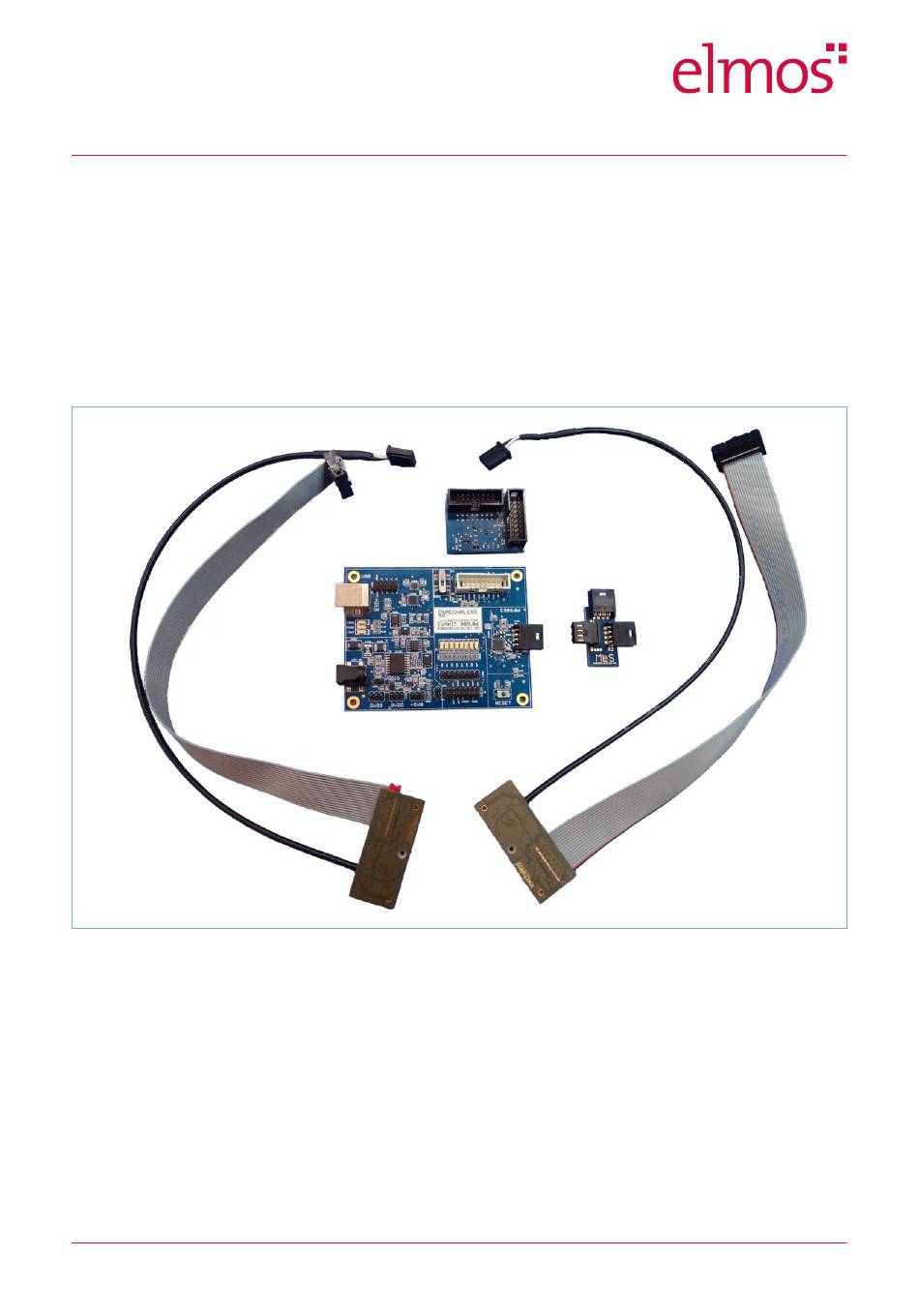

Figure 1. Baseboard and accessories for evaluation kit with E909.06

Application Note

1/5

AN 0139

QM-No.: 25AN0139E.00

Table of Contents

Need help?

Do you have a question about the HALIOS E909.06 Gesture Evaluation Kit V3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Elmos HALIOS E909.06 Gesture Evaluation Kit V3

Page 1 This evaluation kit (Order No. KI-1210003) is designed to provide you the most quick and easy approach to the HALIOS® tech- nology based on Elmos IC E909.06. A typical HALIOS® application consists of optics, electronics and software. While the majority of electronics and software are covered by the IC and its firmware, the evaluation kit supports you with examples for optic design and a ready-to-use devel- opment environment.
Page 2 You are free to connect any other kind of a HALIOS® sensor head. If you do so you may have to alter the hardware and software settings. Figure 3. Baseboard with one gesture head Elmos Semiconductor AG Application Note QM-No.: 25AN0139E.00...
Page 3 USB stick. Just connect the optical head(s) to the baseboard, establish USB communication between PC and the baseboard and run the HACo.exe file. Figure 5. HACo screenshots showing the main window and a loop view (Loop values vs time) Elmos Semiconductor AG Application Note QM-No.: 25AN0139E.00...
Page 4 HALIOS® experiences effortless. The tool will support your development in a fast and reliable way. In order to support the development of embedded software for the internal Elmos 16bit-micro-processor (EL 16), the USB stick contains some software project files with complete code examples for the HALIOS® IC firmware as well as additional functions such as filter, self-calibration etc.
Page 5 While the information in this publication has been checked, no responsibility, however, is assumed for inaccuracies. Elmos does not recommend the use of any of its products in life support applications where the failure or malfunction of the product can reasonably be expected to cause failure of a life-support system or to significantly affect its safety or effectiveness.
