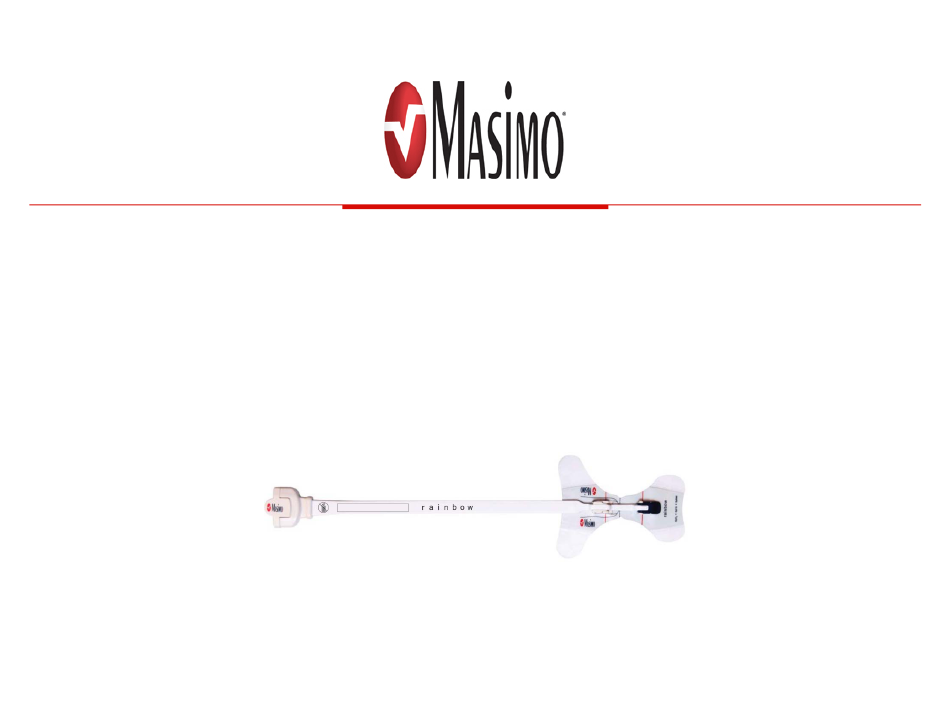

- Page 1 ® ReSposable™ Pulse CO-Oximeter™ Sensor System Training Please see product’s Directions for Use for more information STT-0236A CO-006774 © 2012 Masimo Corporation...
-
Page 2: Learning Objectives
Identify circumstances when optical shielding may be useful > Describe the disassembly process for the rainbow ReSposable sensors > Describe the cleaning process for the rainbow ReSposable sensors Please see product’s Directions for Use for more information STT-0236A CO-006774 © 2012 Masimo Corporation... - Page 3 > Connect the sensor to the patient cable following application Please see product’s Directions for Use for more information STT-0236A CO-006774 © 2012 Masimo Corporation...
- Page 4 When changing application sites or reapplying the adhesive sensor, first disconnect the reusable sensor from the patient cable and reconnect once the sensor is repositioned/reapplied to the patient Please see product’s Directions for Use for more information STT-0236A CO-006774 © 2012 Masimo Corporation...
- Page 5 > The sensor should be free of visible defects, discoloration, and damage. Never use a damaged sensor or one with exposed electrical circuitry. Please see product’s Directions for Use for more information STT-0236A CO-006774 © 2012 Masimo Corporation...
- Page 6 Reusable Sensor Fig 1a Able to be used for approximately 3,360 hours Fig 1b • Assembled ReSposable sensor Reusable + Disposable = ReSposable Please see product’s Directions for Use for more information STT-0236A CO-006774 © 2012 Masimo Corporation...
- Page 7 R2-25 Adult ReSposable Sensor Patients weighing > 30 kg R2-25r Reusable Sensor Preferred application site: Middle or ring finger of the non-dominant hand R2-25a Adhesive Sensor Please see product’s Directions for Use for more information STT-0236A CO-006774 © 2012 Masimo Corporation...
- Page 8 R2-20 Pediatric ReSposable Sensor Patients weighing 10 - 50 kg R2-20r Reusable Sensor Preferred application sites: Middle or ring finger of the non-dominant hand R2-20a Adhesive Sensor Please see product’s Directions for Use for more information STT-0236A CO-006774 © 2012 Masimo Corporation...
- Page 9 Adhesive and Reusable Sensor Correctly Matched Match the ADHESIVE SENSOR with the correct REUSABLE SENSOR Reusable Sensor Label Single Patient Adhesive Sensor Label Please see product’s Directions for Use for more information STT-0236A CO-006774 © 2012 Masimo Corporation...
- Page 10 Press the white emitter into the emitter insert to lock in place. A clicking sound occurs when it is locked Please see product’s Directions for Use for more information STT-0236A CO-006774 © 2012 Masimo Corporation...
- Page 11 When properly applied the emitter and detector should be vertically aligned Confirm alignment by checking the red lines on the sensor from the side Please see product’s Directions for Use for more information STT-0236A CO-006774 © 2012 Masimo Corporation...
- Page 12 Shielding is recommended in the presence of high ambient light sources such as surgical lights, phototherapy, fluorescent lights, infrared heating lamps, direct sunlight, strobe light environments or monitors which emit bright lights. Please see product’s Directions for Use for more information STT-0236A CO-006774 © 2012 Masimo Corporation...
- Page 13 Hold the adhesive sensor near the gray detector (2) With the opposite hand, pull the reusable sensor away from the adhesive sensor to disconnect (3) Please see product’s Directions for Use for more information STT-0236A CO-006774 © 2012 Masimo Corporation...
- Page 14 Maintain a back-up supply of reusable and adhesive sensors > Do Not discard the reusable sensor after use > Minimize the use of multiple adhesive sensors per patient Please see product’s Directions for Use for more information STT-0236A CO-006774 © 2012 Masimo Corporation...
- Page 15 > Dry the reusable sensor with a clean cloth and allow the cleansed sensor to dry thoroughly before use Please see product’s Directions for Use for more information STT-0236A CO-006774 © 2012 Masimo Corporation...
