Using the CardioQ-ODM Monitor in the OR

1. Turn on the CardioQ-ODM

2. Attach a probe to the interface cable.

3. Select "New Patient".

4. Input patient data (patient ID, gender, age, weight, height).

data and press enter, check and then accept data.

5. Apply water-based lubricant to distal part of probe.

6. Insert probe, bevelled edge upwards

markers for oral insertion or middle & proximal for nasal insertion).

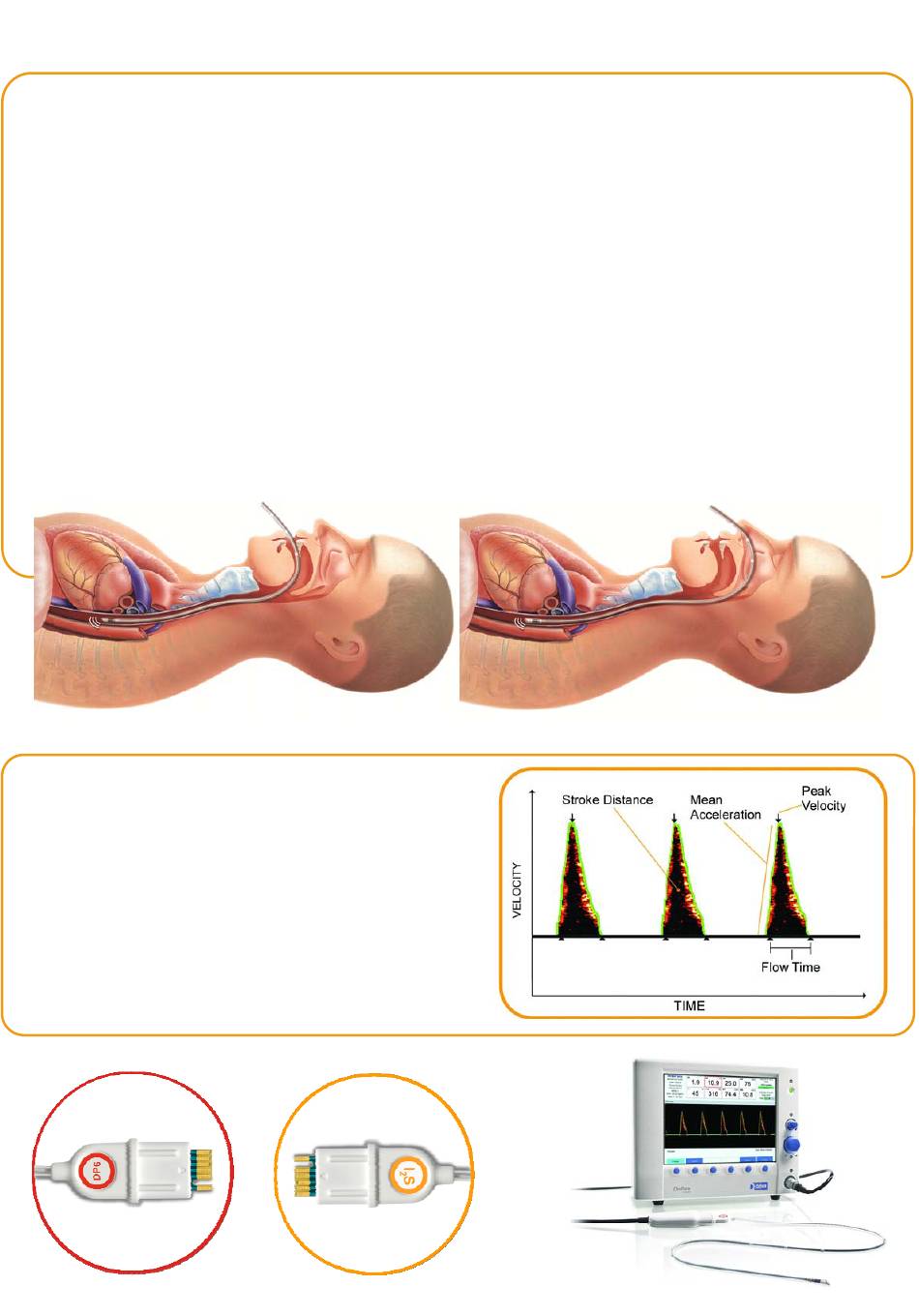

Oral Insertion

7. Locate descending aortic waveform

rotate or adjust depth as necessary).

8. Optimise waveform

peaks, spectrum of colours).

9. Use Auto gain if necessary.

9051-5480 Issue 3

(use the switch at the back of the monitor).

(patient incisors usually between distal & middle

(gently

(sharpest sound, tallest

Use Control Knob to input

Nasal Insertion

Table of Contents

Do you have a question about the CardioQ-ODM and is the answer not in the manual?

Page 1 Using the CardioQ-ODM Monitor in the OR 1. Turn on the CardioQ-ODM (use the switch at the back of the monitor). 2. Attach a probe to the interface cable. 3. Select “New Patient”. 4. Input patient data (patient ID, gender, age, weight, height).
Page 2 The CardioQ-ODM Waveform The green line indicates the velocity/time envelope which the monitor uses to make calculations. The white arrows indicate time and velocity values used for CardioQ-ODM calculations. The Stroke Distance (SD) is the area under the waveform and is the basic measured parameter upon which calculations of Stroke Volume (SV) and all other Cardiac Output (CO) and indexed measurements are made.
