Summary of Contents for Speedata KT80
- Page 1 KT80 Quick Guide Android 5.1...
-
Page 2: Table Of Contents
KT80 Quick Gide V1.0 DATE：2016-11-02 Catalog KT80 SPECIFICATIONS ........................ 2 External structure ........................5 Overall ..........................5 Android 5.1 introduction ......................6 System lock screen ......................6 Main interface ........................7 All applications ........................8 Basic application and settings ....................9 Phone .......................... -
Page 3: Kt80 Specifications
KT80 Quick Gide V1.0 DATE：2016-11-02 KT80 SPECIFICATIONS Basic parameters ARM Cotex-A53 8-core 1.5GHz Android 5.1 16GB Storage Extensions Two SD card slots, maximum support 128GB. Keyboard 10side button , two power key 13600mAh 3.8V, Standby time of 25days, 17hours of continuous Battery work time. - Page 4 KT80 Quick Gide V1.0 DATE：2016-11-02 Display 8 inch liquid crystal display Screen resolution 720p(1024*768) Touchscreen type Capacitive touch screen(Optional electromagnetic panel) Back lighting Network Network type Dual card dual , 4G Full Netcom 4G TDD-LTE : 1900/2300/2500/2600 MHz(B38/B39/B40/B41) 4G FDD-LTE : 1800/2100/2600 MHz (B1/B3/B7)
- Page 5 KT80 Quick Gide V1.0 DATE：2016-11-02 Support EPC C1 GEN2/ISO18000-6C agreement Tag processing speed >200/s, Reading distance 0-5m Tag processing speed >200/s, Reading distance 0-5m 3.ID card：13.56MHz Support the second generation ID card to read the complete information and analysis, does not require networking.
-
Page 6: External Structure

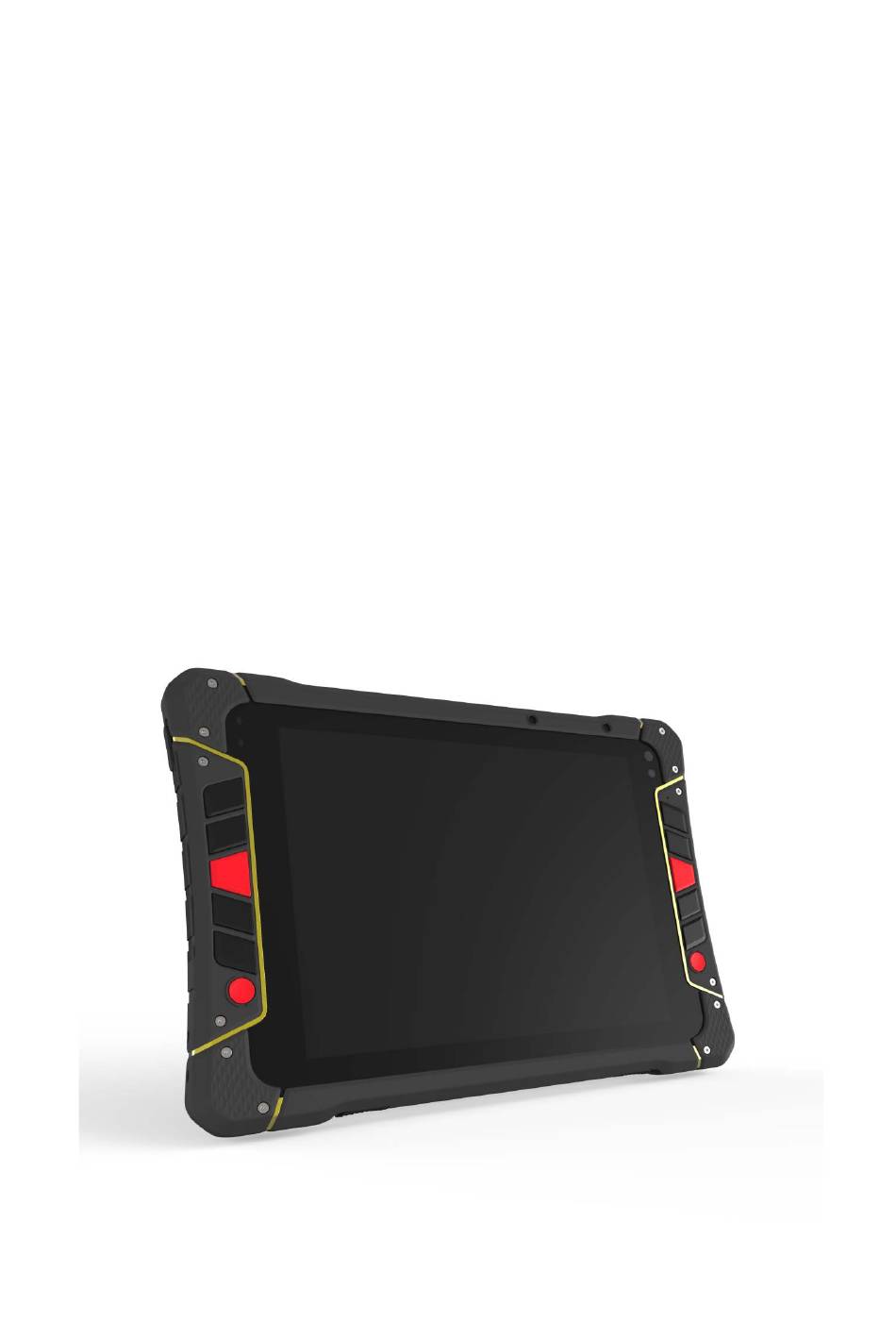

KT80 Quick Gide V1.0 DATE：2016-11-02 External structure Overall 北京思必拓科技股份有限公司 Beijing Speedata Technology Co.,Ltd 北京市海淀区上地六街 28 号志远大厦 2 号楼（光正中心）一层南侧 Tel: (86)010 8234 6858 Fax: (86)010 8234 6858 - 808 w w w . s p e e d a t a . c n... -
Page 7: Android 5.1 Introduction
KT80 Quick Gide V1.0 DATE：2016-11-02 Android 5.1 introduction System lock screen If you don’t have a screen lock, you can unlock it, open an app, and view notification. Quick Setup: Touch the screen to the top position and side the notification bar, directly touching the icons setting, but also directly touch the top of the System Setup icon to enter system settings. -
Page 8: Main Interface
KT80 Quick Gide V1.0 DATE：2016-11-02 Main interface In the main interface, you can observe the state, view the notification, open the application, such as search. Add application shortcuts：Point hold the app icon and then move to the main screen anywhere. -
Page 9: All Applications
KT80 Quick Gide V1.0 DATE：2016-11-02 All applications Touch the “All app icon” in the Favorites bar to see all of the apps already installed on your current device. Swipe the screen left or right to see all your apps. Touch the icon to open the app. -
Page 10: Basic Application And Settings
KT80 Quick Gide V1.0 DATE：2016-11-02 Basic application and settings Phone Favorites bar or touch the phone icon in all applications , or slide the screen to the right to enter the dial screen interface can use the phone function. Speed Dial: Shows stored in your phone, and favorite contacts. -
Page 11: Camera
KT80 Quick Gide V1.0 DATE：2016-11-02 Camera There are three ways to turn the camera on: the screen lock screen to left, touch the camera application icon, and press the camera shortcut key (on both sides of the screen). Snapshot Mode: Swipe left or right to see more pictures mode. -
Page 12: Kt80 Quick Gide V1.0 Date：2016
KT80 Quick Gide V1.0 DATE：2016-11-02 The default display language is English. Brush to upgrade the system version or restore the factory settings, the system display the language back to the default settings. Can be put into the local use of telephone card changes, or enter the system settings changes. -
Page 13: A Key Scan
KT80 Quick Gide V1.0 DATE：2016-11-02 A key scan A key scan is also called quick scan. This feature allows you to directly bar code or two-dimensional code scanning, hereinafter referred to as bar code. A key scan settings The device does not open a key by default, you want to use the need to open and set. -
Page 14: Include Key-Values
KT80 Quick Gide V1.0 DATE：2016-11-02 Enable scanning tone: When checked after scanning you will hear “ding” sound. Enable scanning shock: When checked in after a successful scan machine will vibrate. Include key-values Include key : in the back of the bar code information display included with the other key, the default is "without warranty key."... -
Page 15: Instructions
KT80 Quick Gide V1.0 DATE：2016-11-02 Instructions Use one-touch scan to set the operation steps are as follows: First, a quick scan opens. Please enter the settings accessibility, check the "Scan key reporting" category under the "Enable reported Scan key." You can see the scanning beam by pressing any of the scan keys (the scan key on the keyboard or the scan key on both sides of the screen). -
Page 16: Rfid Read (Optional)
KT80 Quick Gide V1.0 DATE：2016-11-02 RFID Read (optional) When the user is based on the terminal to do RFID related application development, please contact the terminal manufacturers to ask for the relevant development documents and sample code. Basic model description... -
Page 17: Special Custom Instructions
KT80 Quick Gide V1.0 DATE：2016-11-02 Special custom instructions Our equipment reserved a variety of interfaces, can meet the various functions of the custom. For example: RS232,I2C,RS485, etc. Please contact us for details. Technical Support Contact E-mail: support02@speedatagroup.com Skype: android.speedata 北京思必拓科技股份有限公司 Beijing Speedata Technology Co.,Ltd 北京市海淀区上地六街...
