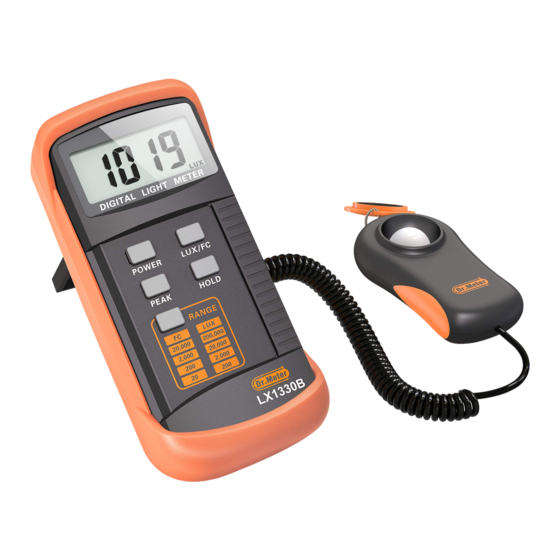

Dr.Meter LX1330B Operation Manual

OPERATION
DIGITAL LUX METER
Appreciate your choice of this Lux meter. Please read throught this manual carefully for
proper operating techniques.This digital lux meter is a precise instrument which could be use for
detecting light intensity in any situations.

Ⅰ FEATURES

● Measuring range: 0.1Lux～200,000Lux
● High accuracy in measuring, fast reflection time
● Data hold function
● Symbolly and unit display for easy reading
● Zeroize automatically

Ⅱ GENERAL SPECIFICATIONS

● Display:
● Range selection:
Annotate: 1FC=10.76Lux
Accuracy:
●
Calibrated to standard incandescent lamp at color temperature 2856K)
(
Resolution: 0.1Lux
●
Repeatable Accuracy: ±2%
●
Temperature Characteristic: ±1%/℃
●
Test Rate:
●
Photo Sensor: one silicon photo diode with filter.
●
Operation temperature-humidity: 0℃ to 40℃(32℉-104℉) 0～70%Rh
●
Storage temperature-humidity: -10℃ to 50℃(14℉-140℉) 0～80%Rh
●
Over-input:
●
Power Supply: one 9V battery, Model 6F22
●
Bttery life:
●
Photo Detector Dimension: 105*58*28mm
●
Dimension:
●
0.01FC～20,000FC
3 1/2 digits LCD display, maximum display value 1999
200Lux、 2，000Lux、 20，000Lux、200，000Lux
20FC、200FC、2，000FC、20，000FC
20,000Lux range: reading×10
200,00Lux range: reading×100
20,000FC range: reading×10
<20,000Lux/2,000FC, ±(4%rdg+10dgt)
≥20,000Lux/2,000FC, ±(5%rdg+10dgt)
2times/sec.
indication of "1"
200 hours for continuously use
162*78*43mm
MANUAL
