Engine Management

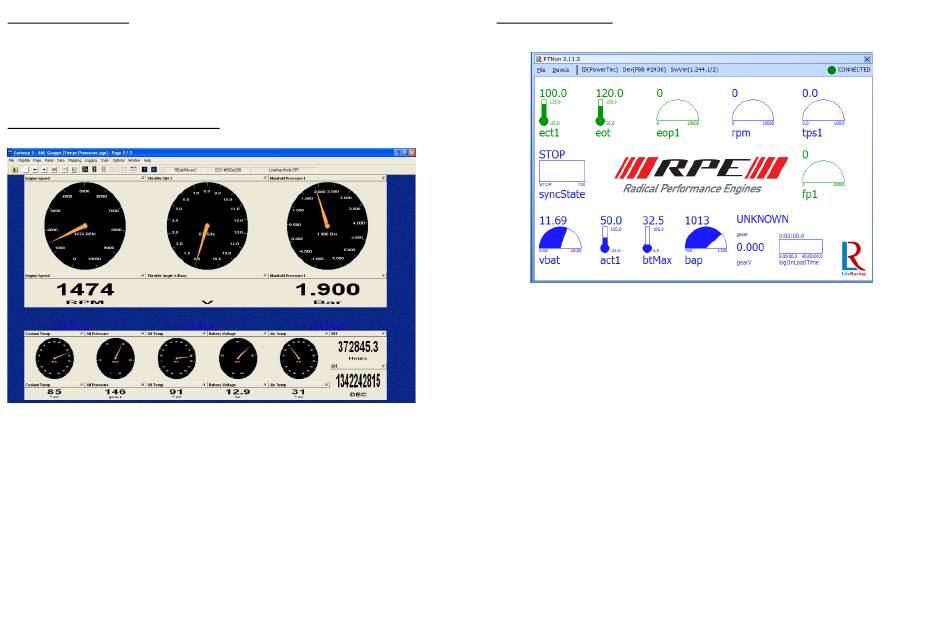

Most RPE engines will either use MBE or Life Racing engine management. The
pictures below show the monitoring programs which should be loaded on a
laptop that is connected to the ECU each time the engine is started.

MBE - Radical Easimap Setup Screen

1
4 5
1) Engine RPM – (Engine should idle between 1500 and 1800rpm)
2) Throttle Position Sensor – (set at 0.18V at idle)
3) Barometric pressure
4) Coolant Temperature
5) Oil Pressure
6) Oil Temperature (Minimum of 45°C, Maximum 120°C)
7) Battery Voltage
8) Air Inlet Temperature
2 3
0.19
6 7 8

Life Racing - PTMon

6
8 9 10
1) Engine coolant temperature (ect1) – changes from red to green when in
o
C
correct range of 60 to 95
2) Engine oil temperature (eot) – changes from red to green when in correct
o o
C C
range of 50 to 120
3) Engine oil pressure (eop1) – At idle, 70 psi when cold /20 psi when hot
4) Engine rpm (rpm) – Engine should idle between 1500 and 1800rpm
5) Throttle position sensor (tps1) – needs to be set to 4% at idle
6) Engine sync state – should be at 720 when engine is running, turns green
when correct
7) Fuel pressure (fp1) – changes from red to green when in correct range of
2.8 bar to 3.2 bar
8) Battery voltage (vbat) – above 12.5 volts when engine is running
9) Air charge temperature sensor (act1) – air inlet temperature
10) Engine ECU temperature (btMax) – temperature of the engine ECU
11) Baro sensor pressure (bap) – below 1030 mBar
7
11 12
o
C
7
