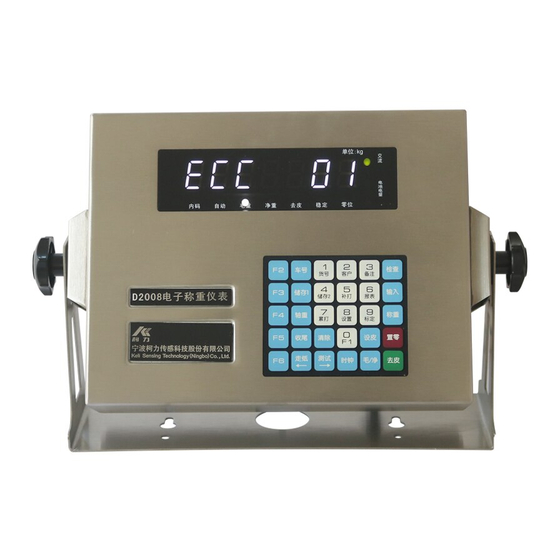

D2008type Electronic Weighing Indicator User Manual Version: December. 2018 ●Please read this manual carefully before using ●Please keep this manual properly for reference... - Page 2 Index 1 Technical parameter ..................... 错误！未定义书签。 2 Operation instructions ............................ 1 2.1 Start-up and automatic start-up zero setting ............错误！未定义书签。 2.2 Manual zeto setting ................... 错误！未定义书签。 2.3 Tare ........................错误！未定义书签。 2.4 Zero Tare ......................错误！未定义书签。 2.5 Date and time check and setting ............... 错误！未定义书签。 3 Store and print weighing record ...................
-
Page 3: Technical Parameter
1 Technical parameter 1.Type D2008type(H+、HP+、HP1+) D2008type(D28+) D2008type(20KB+、20KBP+、20KBP1+) D2008type(20KC+、20KCP+、20KCP1+) 2.Digital load cell interface: Communication mode RS485 Signal transmission distance 30M when connected with 12 load cells,pls contact us if you need further Transmission baud rate 9600、19200bps Excitation power DC12~14.8V ≤16 digital load cells Digital interface ability ：... -
Page 4: Operation Instructions
2 Operation instructions 2.1 Start-up and automatic start-up zero setting Connect to power supply and turn on the power switch. The indicator begins self-checking. After successful self-checking, the indicator enters the weighing status. During the start-up, if the zero point is off-set but still in the range preset, the indicator will automatically. Refer to manual of calibration for the range of start-up zero setting. -
Page 5: Press【Enter
（1）This indicator asked the car No. is 5 digit(1~99999),Art.No.is 3 digit（0~200）, (2) It can save 1500 group weigh records mostly, after full, will delete the earliest group result. (3) There are 3 ways to save the data: ① weight directly(press key【save1】)save: When you make one weight, it can make the data as one group to save and print ②First preset or call the known tare weight when weighing, (press key [ save1]) storage one time to constitute a complete set of records;... - Page 6 step operation display explain press【check】 S-CodE Enter password press【111111】 S- - - - - - fixed password“111111” press【ENTER】 rEAd 00 Choose function number press【6】 rEAd 06 choose 6to check vehicle tare press【ENTER】 PEr *** show store space usage percentage(store number/1000) press【ENTER】...
- Page 7 Steps Operation Display Explanation Press【Form】 press“02” ，choose some time detail list form press【02】 d00.00.00 press【ENTER】 Enter start date d12.05.20 press【40101】 For example 2012-05-20 d00.00.00 press【ENTER】 Enter end date A12.05.20 press【40101】 For example 2012-05-20 Print Press【Enter】 Begin printing the form. Back to the weighing status after printing 4.Vehicle No.
- Page 8 as per date PRESS【ENTER】 no 0001 Show first record PRESS【ENTER/↓】 d12.05.31 show first record date PRESS【ENTER/↓】 t09.58.44 show first record date PRESS【ENTER/↓】 o 12345 show first record vehicle number PRESS【ENTER/↓】 hn 003 show first record cargo number PRESS【ENTER/↓】 A001.200 show first record gross weight PRESS【ENTER/↓】...
- Page 9 【Err 17】 Parameter setting does not meet requirements, please refer to the related parameters input range 【Err 19】 Zero negative weighing or instability cannot print, do not meet back to zero conditions don't print; Storage of input parameter not meets the requirement; Discrepancy zeros conditions;...
- Page 10 chapter 3 "print parameter Settings" part), this step is not in the show car number and suggests the new car number input, directly to step 6 o 00123 Input vehicle Press 【00123】 number HN *** Press【enter】 Display the original cargo no. ask to user enter new cargo number HN 001 Input...
- Page 11 20：21 00123 1.000 1.000 0.000 0003 20：41 00001 1.000 0.100 0.900 0004 20：44 00001 1.000 0.100 0.900 0005 20：45 00001 1.000 0.100 0.900 0006 20：45 00002 1.000 0.100 0.900 Total： G.W.： 7.003 t N.W.： 4.603 Applicable model：D2008type(H+、HP+、HP1+) D2008type(D28+) D2008type(20KB+、20KBP+、20KBP1+) D2008type(20KC+、20KCP+、20KCP1+)
