Surewerx JET JEDC-6 Operation Manual

Operation MANUAL

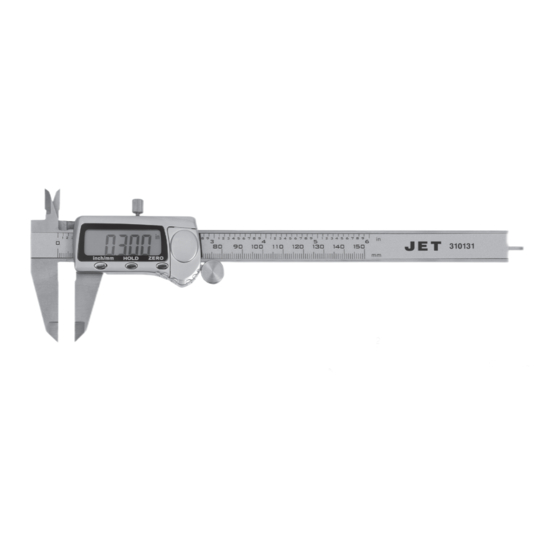

Electronic Digital Calipers
Prod. No. 310131 • Mod. No. JEDC-6
Prod. No. 310132 • Mod. No. JEDC-8
Thank you for purchasing a quality JET electronic
digital caliper. Used and cared for correctly, it will
give you many years of trouble-free service.

Specifications

• Resolution: 0.0005" / 0.01 mm
• Range: 0 - 6" / 150 mm (310131)
0 - 8" / 200 mm (310132)
0 - 6" / 150 mm fractional/metric (310133)
0 - 12" / 300 mm (310136)
• Power: One 1.5V button cell (SR44, G13A,
or equivalent)
• Measuring speed: < 1.5 m/s
Prod. No. 310133 • Mod. No. JEDC-6F
Prod. No. 310136 • Mod. No. JEDC-12
1
9
Components
1. Step measuring face
2. Internal measuring faces
3. LCD display screen
4. Locking screw
5. Battery cover
6. Slider
Functions
1. Zero setting at any position – allows quick and
easy relative measurements.
2. Inch/metric selector – instantly make
conversions.
3. Hold - freezes display when button is pressed.
Useful for holding measurement when display
cannot be seen. When active displays H.
4. Caliper will shut off automatically after a few
Una Marca
minutes.
2 4 3
in
inch/mm HOLD ZERO
5
10 12 11
7. Scale face
8. Depth measuring blade
9. External measuring faces
10. Inch/mm selector
11. Zero setting
surewerx.com
6
8
7
