1. Wiring diagram for STAG AFR connection

2. Contents of the kit

 STAG AFR - wideband oxygen sensor controller
 Wideband oxygen sensor – Bosch LSU 4.9 (0 281 004 026)
 Wire harness
 Wiring diagram
 Oxygen sensor mounting sleeve
 Plug
 CD
 Additional cable for the analogue output (0-5V)

3. Purpose

The STAG-AFR controller for wideband oxygen sensors has been designed to determine the air-to-fuel
ratio (AFR) for an internal combustion engine based on the measurement of oxygen in the exhaust gas.
Measurements are made with a wideband oxygen sensor that may be used in engines fed with a wide
range of fuels such as unleaded gasoline, diesel, LPG, natural gas, methanol and ethanol.
The wideband oxygen sensor provided in the kit
and two-stroke engines.
In both cases, the probe lifetime is dramatically reduced.
ATTENTION!
STAG AFR is an alternative to expensive exhaust gas analyzers. Due to high-speed measurements of
lambda parameter (AFR - air-fuel ratio), it is possible to control air-fuel mixture not only in steady but also
in transient engine operating states
The kit can be used, for example, for adjusting both carburettor and fuel injection systems, calibrating
LPG/autogas systems of any fuel system diagnostic generation available on the market, diagnostics of fuel
systems, diagnostics of factory installed oxygen sensors and control of air-fuel mixture during chip-tuning
system calibration. Knowing a current air-fuel ratio for the mixture supplied to the engine, the user is able
AC S.A. All rights reserved. Any unauthorized copying, reproduction, publishing, dissemination, disclosing or other use of information presented herein, in whole or as part, particularly photographs,

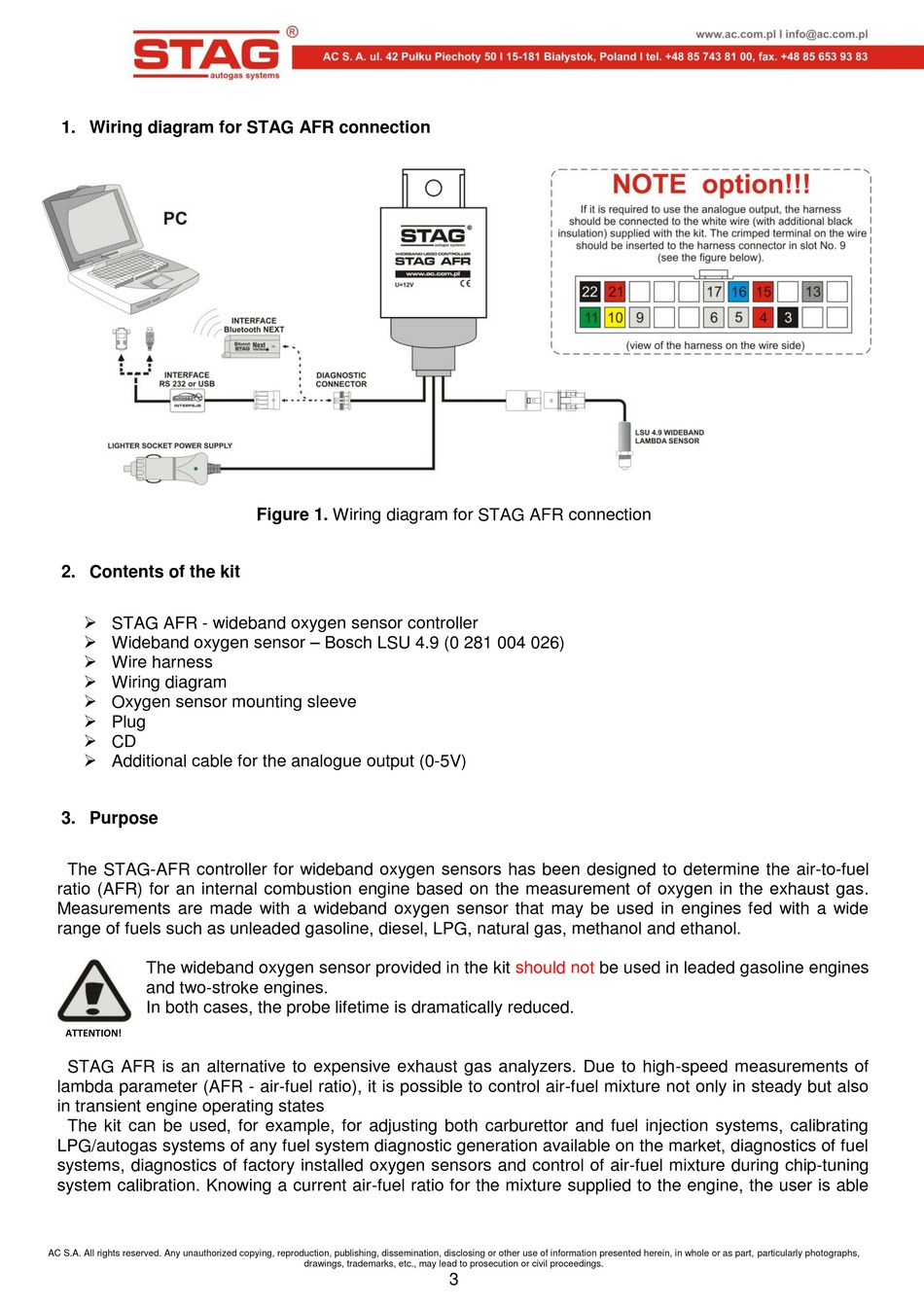

Figure 1. Wiring diagram for STAG AFR connection
drawings, trademarks, etc., may lead to prosecution or civil proceedings.
should not be used in leaded gasoline engines
