Thank you for purchasing the Sbooster-Lumïn bracket to make the Lumïn D2, U1 Mini or T2 suitable for the
Sbooster BOTW P&P ECO 12-13V external power supply. In just 20 minutes of your DIY-time is needed to take
out the stock SMPS of the Lumïn, install the Sbooster bracket and to enjoy more music.........
Please note: taking out the SMPS of the Lumïn and installing the Sbooster bracket is at your own risk.
Caution: Watch-out for Electrostatic Discharge (ESD).
Make sure when you are working on the Lumïn that you are fully discharged to prevent damage to the Lumïn.
You can discharge yourself by touching i.e. your grounded device like an Amplifier, Radiator or Fridge, etc.

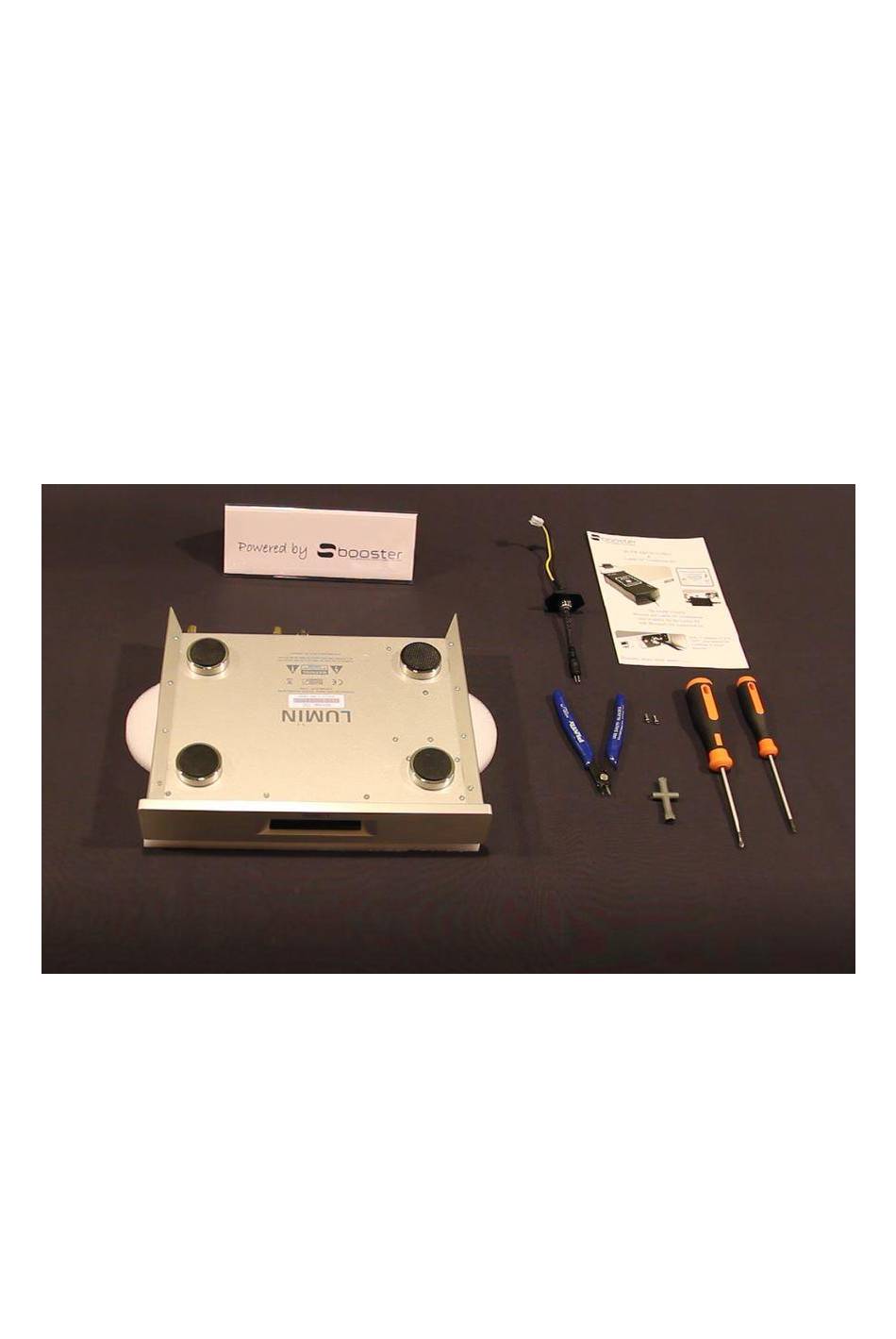

Needed tools:
-
Screw driver
-
Torx screw driver (supplied in connection kit)
-
Wrench (mini cross wrench supplied in connection kit)
-
2x screws (supplied in connection kit)
-
Pliers
Lumïn Bracket manual
1
Advertisement
Related Manuals for Lumin D2
Summary of Contents for Lumin D2
- Page 1 Lumïn Bracket manual Thank you for purchasing the Sbooster-Lumïn bracket to make the Lumïn D2, U1 Mini or T2 suitable for the Sbooster BOTW P&P ECO 12-13V external power supply. In just 20 minutes of your DIY-time is needed to take out the stock SMPS of the Lumïn, install the Sbooster bracket and to enjoy more music………...
- Page 2 Step 1: Remove 14 pcs torx screws from the enclosure, internal power supply and power supply cover. Do not remove the 4 screws of the front panel! Step 2: Open the enclosure by sliding the cover to the back.
- Page 3 Step 3 Remove the PSU connector. The connector has a clip that needs to be pressed on the top side. Watch out for ESD. Discharge yourself first. Step 4 Removing the PSU cover. Please take your time to remove the PSU cover. First you have to move the cover as far as possible to the front.
- Page 5 Step 5 Unscrew the wires from the internal PSU. It is not necessary to remove the wires from the smps (yellow/black).
- Page 6 Step 6 Next we are going to remove the IEC mains input. There are two internal nuts that needs to be remove first. Remove the two black torx screws of the IEC mains input. Now cut the red wire that runs from the switch to the IEC inlet.
- Page 7 The IEC inlet can now be removed from the enclosure.
- Page 8 Step 7 Installation of the Sbooster DC input bracket (product looks different from the sample in this manual) Place the bracket, the Sbooster logo facing up, and fix the unit with the two supplied silver screws.
- Page 9 Step 8 Install the connector to the Lumïn circuit board. Check if the black wire/tape is positioned to the back side.
- Page 10 Step 9 Install the enclosure cover. The front might need some extra care.
- Page 11 Step 10 Install the 8 enclosure torx screws. Connecting the BOTW P&P ECO 12-13V MKII to the Lumïn Bracket Lumïn bracket Female DC connector DC plug Both the Lumïn bracket and the Female DC connector are carrying our “S” logo. When both logos are facing to the same side, the connector pins are at the right spot and the Female DC connector can be inserted.
