Summary of Contents for PowerBox Evolution Spektrum

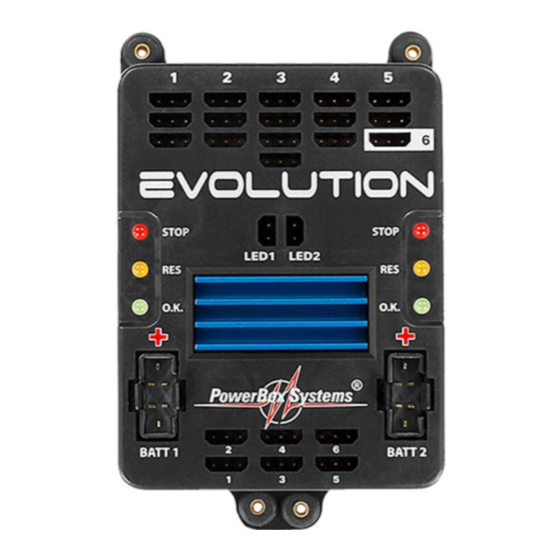

- Page 4 - Large heatsink for extreme loads - Elemination of reverse voltages from servos This range of functions makes the PowerBox Spektrum Evolution the ideal dual power supply for large model aircraft with wingspans in the range 2.0 m to 2.6 m, as well as helicopters and gliders.
- Page 6 If the connector were to fall out, it would have no effect on the switched state of the PowerBox, but would prevent you switching the system off.
- Page 7 Locate the SET button on the SensorSwitch and hold it pressed in until the central LED glows red. Now press buttons I and II in turn; the PowerBox is now switched Repeat the procedure to switch off: hold the SET button pressed in, wait until the central LED glows red, then confirm by pressing buttons I and II in turn.
- Page 8 This process only takes a few seconds, and is designed to eliminate the danger of accidental changes to the setting. In any case it only has to be carried out once, as your selected battery type is permanently stored in the PowerBox’s EEPROM. d) Reading out the minimum value memory The minimum value memory shows you the extent to which the battery voltage collapsed during the last flight.
- Page 9 In this case all control surfaces remain in Hold mode in a fail-safe event, while the throttle channel runs to Idle or the Off position: - Check that the PowerBox is off, then insert the Bind plug into it. - Switch the PowerBox Evolution Spektrum on: all three satellites should now flash at a high rate.
- Page 10 In this variant the positions set during the binding procedure are passed to the receiver and subsequently passed on to the servos if a fail-safe event should occur: - Check that the PowerBox Evolution Spektrum is switched off, then insert the Bind plug into it.
- Page 12 - Press the SET button and hold it pressed in - With the SET button pressed in, reconnect Battery 1 and Battery 2 - The selected setting is indicated by the LED monitor on the PowerBox: all the LEDs on the appropriate side light up: 1 x flash means that the regulator is now operating at 5.9 V...
- Page 13 4. Specification Operating voltage: 4.0V - 9.0V Power supply: 2S LiPo, 2S LiFePo, 5S NiCd/NiMH Current drain: Power-on state 85mA Current drain: Standby 4μA Maximum load current: Peak 2x20A Drop-out voltage: 0.3V Output voltage: 5.9V and/or 7.4V regulated Signal input: seriell, DSMX Channels: Servo sockets:...
- Page 14 5. Set contents - PowerBox Evolution Spektrum - SensorSwitch - 2 external LEDs - 4 rubber grommets and brass spacers - 4 retaining screws - Operating instructions -14-...
- Page 15 At the same it gives you the opportunity to obtain help quickly all round the clock - even at weekends. All the answers are provided by the PowerBox Team, guaranteeing that the information is correct. Please use the Support Forum before you telephone us.
-
Page 16: Service Address
They are guaranteed “Made in Germany”! That is why we are able to grant a 36 month guarantee on our PowerBox Evolution Spektrum from the initial date of purchase. The guarantee covers proven material faults, which will be corrected by us at no charge to you. As a precautionary measure, we are obliged to point out that we reserve the right to replace the unit if we deem the repair to be economically unviable. - Page 17 For this reason we deny liability for loss, damage or costs which arise due to the use or operation of the PowerBox Evolution Spektrum, or which are connected with such use in any way. Regardless of the legal arguments...
