Summary of Contents for Vytran PTR-200 Series

  • Page 1 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
  • Page 2 R R E E F F E E R R E E N N C C E E G G U U I I D D E E PTR-200-ARL Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 3 PTR-200 Series Quick Reference Guide Version 1.2. Printed in the United States. The contents of this manual and the associated software are the property of Vytran Corporation and are copyrighted. Under the copyright laws, neither the documentation nor the software may be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine readable form, in whole or part, without prior written consent of Vytran Corporation.

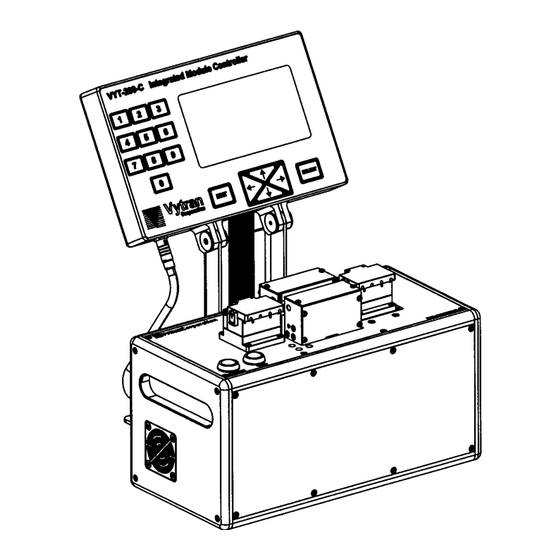

  • Page 4 Setting Up The PTR-200 And Getting Started Quick Reference Guide For The ARL Module This quick reference guide will show you how to set up your PTR-200 and how to recoat and proof test an optical fiber. The illustrations and descriptions refer to an ARL Module configured with the optional Integrated Module Controller (Touch Screen Controller) and external vacuum pump.
  • Page 5 Figure 1 - Back View of ARL Module I. SETTING UP the PTR-200 A. The following steps will show you how to set up your PTR-200. (Refer to Fig.1) 1. Attach the Integrated Module Controller (VYT-200-C), by removing the four mounting screws and washers from the back of the PTR-200.

  • Page 6: First-Time Startup

    II. First Time Start-Up Important! Read all Material Safety Data Sheet information for the recoat compound before proceeding. When using the PTR-200 for the first time, follow these steps: A. Fill the recoat bottle located inside the PTR-200. See Fig. 2 1.
  • Page 7 Figure 3 - Tools Menu. C. Purge the Recoat Pump After filling or removing the internal recoat bottle, the recoat pump must be purged of air in order to eliminate any bubbles in the final recoat. Five (5) purge cycles are required to pump material completely through the pump and remove any air.

  • Page 8: Using The System

    III. Using the System A. Load the Fiber 1. If the recoat mold is not already opened, do so by using the "mold open" command under the tools menu. 2. Raise the tops on both the left and right fiber holding blocks. Note: As long as one of the fiber holding block tops is raised vacuum will be applied to the fiber guides.
  • Page 9 2. To change the recoat quantity, highlight "Quantity( l)", type in the desired value, and select "ü ü " to accept the value or "x" to cancel. 3. Select "MAIN MENU" to return to the main process screen. 4. Select "RECOAT" to initiate the recoat process. Table 1.
  • Page 10 Figure 5: Edit Proof Test Menu C. Proof Test 1. Check the Proof Test parameters by selecting the edit proof test icon. The parameters are defined as follows: Fiber Dia: The diameter of the fiber in microns ( m). This diameter is required to calculate the units of kpsi and GPa.

  • Page 11: Shutting Down

    IV. Shutting Down A. Store the Unit To keep the recoat mold clean and to prevent possible curing of the recoat material in the inject port, we recommend "storing" the mold as follows: 1. Clean both front and back recoat mold plates thoroughly with a soft cotton swab wetted with acetone. 2.
  • Page 12 1400 Campus Drive West Morganville, NJ 07751 USA Tel: (732) 972-2880 Fax: (732) 972-6229 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 13 1400 Campus Drive West Morganville, NJ 07751 USA Tel: (732) 972-2880 Fax: (732) 972-6229 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 14 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
