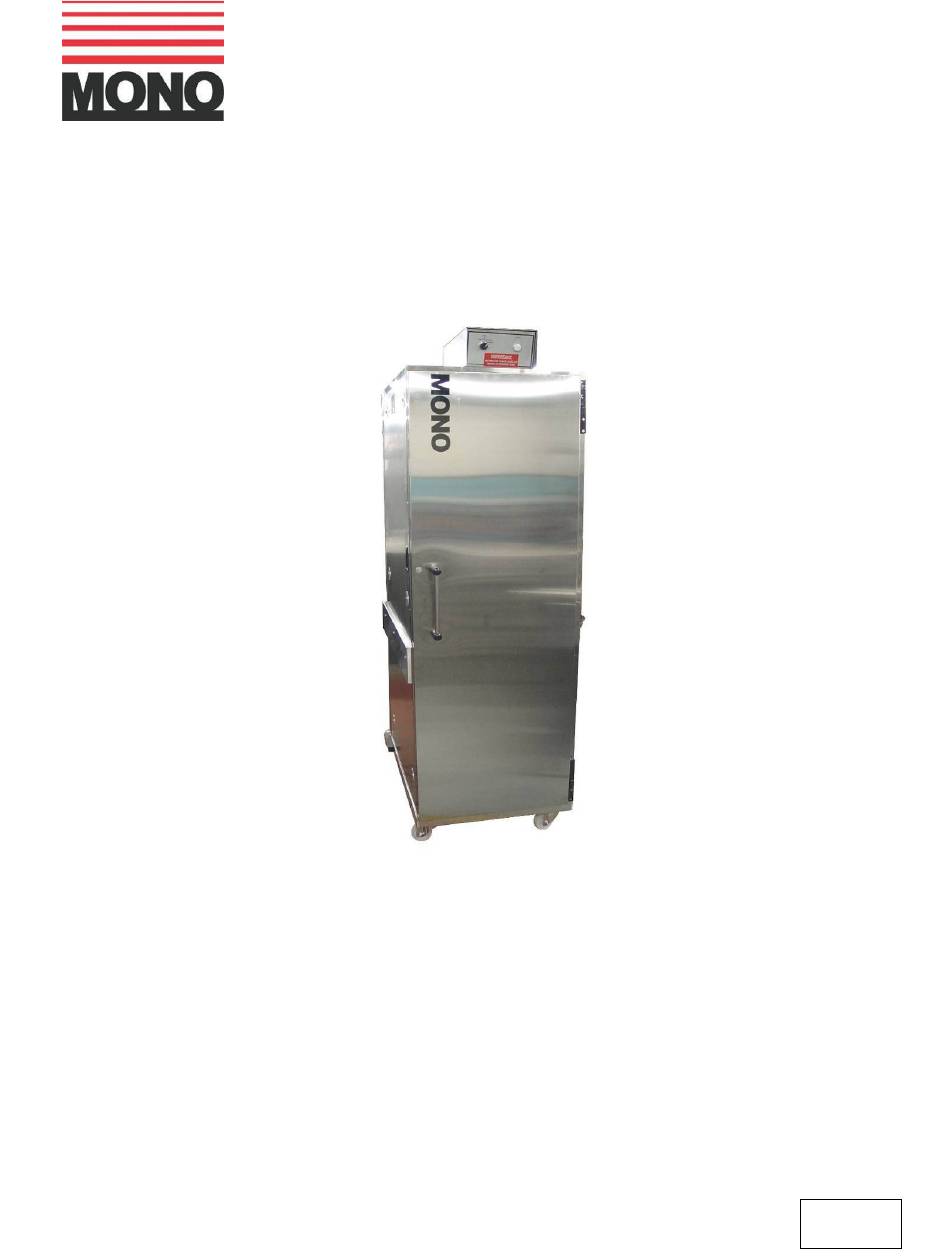

- Page 1 Enter Serial No. here.____________________________ In the event of an enquiry please quote this serial number. www.monoequip.com OPERATION AND MAINTENANCE MANUAL MOBILE PROVER CABINET FILE 20 FG132 – PROVER RevA18 10-01-19...
- Page 2 Indicates a hazardous situation which, if not avoided, WARNING will result in electric shock. Indicates a hazardous situation which, if not avoided, CAUTION will result in minor or moderate injury. The supply to this machine must be protected by a 30mA RCD FG132 – PROVER RevA18 10-01-19...
- Page 3 FG132 – PROVER RevA18 09-01-18...
-
Page 4: Table Of Contents
Section - 6.0 Isolation Section - 7.0 Cleaning Instructions Daily Weekly Section - 8.0 Operating Conditions Section - 9.0 Operating Instructions Section - 10.0 Trouble shooting Section - 11.0 Spares Information Section - 12.0 Electrical Information FG132 – PROVER RevA18 09-01-18... - Page 5 The stainless steel runners give the cabinet a capacity of up to 17, 30” x 18” trays. 2.0 OVERALL DIMENSIONS Height: 1955mm (77”). Width: 660mm (26”). Depth: 1000mm (39 1/2”). FG132 – PROVER RevA18 09-01-18...
-
Page 6: Installation
Although the utmost care is taken during assembly and pre-delivery inspection, there is always a possibility of residue settling in the prover. 6.0 ISOLATION To isolate the prover in an emergency, switch off power at the main wall socket. FG132 – PROVER RevA18 10-01-19... -
Page 7: Cleaning Instructions
Take out tray runners (if flip-up runners are fitted) and wash in sterilising solution and replace. Clean floor of prover. Regularly check the castors are free running and wash with soapy water to release the wheels if needed FG132 – PROVER RevA18 10-01-19... -
Page 8: Operating Conditions
This will enable the prover to be loaded and unloaded easily and the steaming reservoir to be safely and easily replenished with water. 3 For best results ensure cleaning and operating instructions are followed meticulously. FG132 – PROVER RevA18 10-01-19... -
Page 9: Operating Instructions
Turn control switch to desired position and wait for the indicator light to go out. (A temperature probe, located on a bracket inside the rack area, senses the internal temperature and switches off the elements. This shows that the cabinet has reached working temperature.) FG132 – PROVER RevA18 10-01-19... - Page 10 NOTE The controls are set at the factory for 40 degrees / 85% humidity. If different settings are required, a trained engineer should be called to adjust the controls to the settings required. FG132 – PROVER RevA18 10-01-19...
-
Page 11: Troubleshooting
Humidity will also vary according to the amount of product in the prover. Please take account of these factors. If still not correct, contact Mono Service. MONO Queensway Swansea West Industrial Estate Swansea. SA5 4EB UK email:spares@monoequip.com Web site:www.monoequip.com Spares Tel. +44(0)1792564039 Fax. 01792 561016 FG132 – PROVER RevA18 10-01-19... -
Page 12: Spares Information
11.0 SPARES INFORMATION FG132 – PROVER RevA18 09-01-18... - Page 13 MAIN CONTACT BLOCK B801-14-002 EXTRA CONTACT BLOCK B801-14-004 10. HINGE KIT M132-KSX002 11. HANDLE KIT M132-KSX001 12. MAGNETIC CATCH KIT M132-KSX003 13. DRY ELEMENT - REAR COVER M132-10-01400 M132-10-03200 WET ELEMENT PLUG AND CABLE - REAR COVER FG132 – PROVER RevA18 09-01-18...
-
Page 14: Electrical Information
12.0 ELECTRICAL INFORMATION FG132 – PROVER RevA18 10-01-19... - Page 15 FG132 – PROVER RevA18 09-01-18...
- Page 16 FG132 – PROVER RevA18 09-01-18...
- Page 17 LAE Humidistat Controller Parameter Settings FG132 – PROVER RevA18 09-01-18...
- Page 18 CARE SHOULD BE TAKEN WHEN THE MACHINE COMES TO THE END OF ITS WORKING LIFE. ALL PARTS SHOULD BE DISPOSED OF IN THE APPROPRIATE PLACE, EITHER BY RECYCLING OR OTHER MEANS OF DISPOSAL THAT COMPLIES WITH LOCAL REGULATIONS. (IN UK, ENVIRONMENTAL PROTECTION ACT 1990 APPLIES) FG132 – PROVER RevA18 09-01-18...
