NG-1 v6 assembly guide (v.1.1)

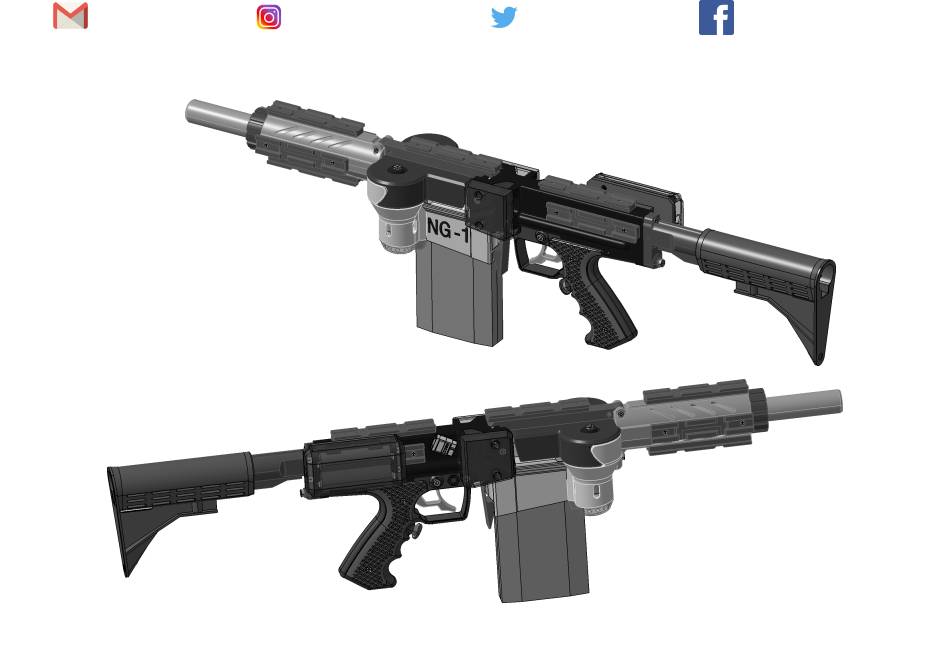

The NG-1 v6 is a semi automatic 'Nerf' type toy gun.

It is developed around 380 class brushed motors and

optimized entirely for 3D printing.

For questions, feel free to contact us.

doc. v1.2

Need help?

Do you have a question about the NG-1 v6 and is the answer not in the manual?

Questions and answers

Summary of Contents for my3dbase NG-1 v6

Page 1 NG-1 v6 assembly guide (v.1.1) The NG-1 v6 is a semi automatic 'Nerf' type toy gun. It is developed around 380 class brushed motors and optimized entirely for 3D printing. For questions, feel free to contact us.
Page 2 Bill of Material: nerf_v6 Quantity Part Number Definition cover_product bat_pack guide_assembly handle_assembly back_bone_assembly stock_assembly barrel_assembly mag_assembly mag_lock_assembly kabel_cover_assembly XT60 Connectors_female doc. v1.2 © my3dbase GmbH 2018 XT60 Connectors_male cables...
Page 3 (see plunger 3D printed detail F). top_rail 3D printed DIN7982_2.2x6.5 Off the shelf SCREW M4x6 Off the shelf NUT M4 Off the shelf plunger_spring Off the shelf plunger_spring_attac Off the shelf hment doc. v1.2 © my3dbase GmbH 2018...
Page 5 The front and bottom DIN7982_2.2x6.5 Off the shelf covers can now be screwed onto the engine mount. spinning_wheel_v2 3D printed Propellermitnehmer Off the shelf NUT M4 Off the shelf motor_mag_assembly 3D printed doc. v1.2 © my3dbase GmbH 2018...
Page 7 NUT M4 SCREW M4x6 Attach 'guide' to 'backbone' using three M4x6 screws. NUT M4 SCREW M4x6 NUT M4 NUT M4 SCREW M4x6 SCREW M4x6 doc. v1.2 © my3dbase GmbH 2018...
Page 9 Attach stock using two M4x20 screws and M4 nuts. Bill of Material: stock_assembly Quantity Part Number Definition Stock Exterior 3D printed Stock Shaft 3D printed SCREW M4x20 Off the shelf NUT M4 Off the shelf doc. v1.2 © my3dbase GmbH 2018...
Page 10 Bill of Material: barrel_assembly front rail. Quantity Part Number Definition barrel 3D printed front_rail 3D printed front_barrel 3D printed NUT M4 Off the shelf SCREW M4x20 Off the shelf top_rail 3D printed DIN7982_2.2x6.5 Off the shelf doc. v1.2 © my3dbase GmbH 2018...
Page 11 SCREW M4x20 Use M4x20 screw and M4 to secure barrel assembly with main back bone. SCREW M4x20 doc. v1.2 © my3dbase GmbH 2018...
Page 12 The mag lock is attached to the backbone with three countersunk screws. Bill of Material: mag_lock_assembly Quantity Part Number Definition mag_lock 3D printed DIN7982_2.2x6.5 Off the shelf doc. v1.2 © my3dbase GmbH 2018...
Page 13 M4x20 screw and M4 nut. dc2c-l1lc Off the shelf SCREW M4x20 Off the shelf NUT M4 Off the shelf DIN7982_2.2x6.5 Off the shelf grip 3D printed Symmetry of grip 3D printed doc. v1.2 © my3dbase GmbH 2018 SCREW M3x20 Off the shelf...
Page 14 Attach handle to guide using one M4x20 and one M3x20 screw. Make sure the trigger is in its forward position, as shown on the drawings. Detail D SCREW M3x20 SCREW M4x20 NUT M4 Detail E doc. v1.2 © my3dbase GmbH 2018...
Page 15 Bill of Material: cover_product Quantity Part Number Definition cover 3D printed bridge 3D printed top_rail 3D printed SCREW M3x20 Off the shelf NUT M3 Off the shelf DIN7982_2.2x6.5 Off the shelf hinge_pin Off the shelf doc. v1.2 © my3dbase GmbH 2018...
Page 16 NUT M3 SCREW M3x20 Attach cover assembly to main gun using a M3x20 screw and nut. doc. v1.2 © my3dbase GmbH 2018...
Page 17 DIN7982_2.2x6.5 kabel_cover Attach side covers using two countersunk screws per side. doc. v1.2 © my3dbase GmbH 2018...
Page 19 This item is not a toy, keep away from children. In no event, regardless of cause, shall my3dbase GmbH be liable for any indirect, special, incidental, punitive or consequential damages of any kind as a result of this product, whether arising under...
