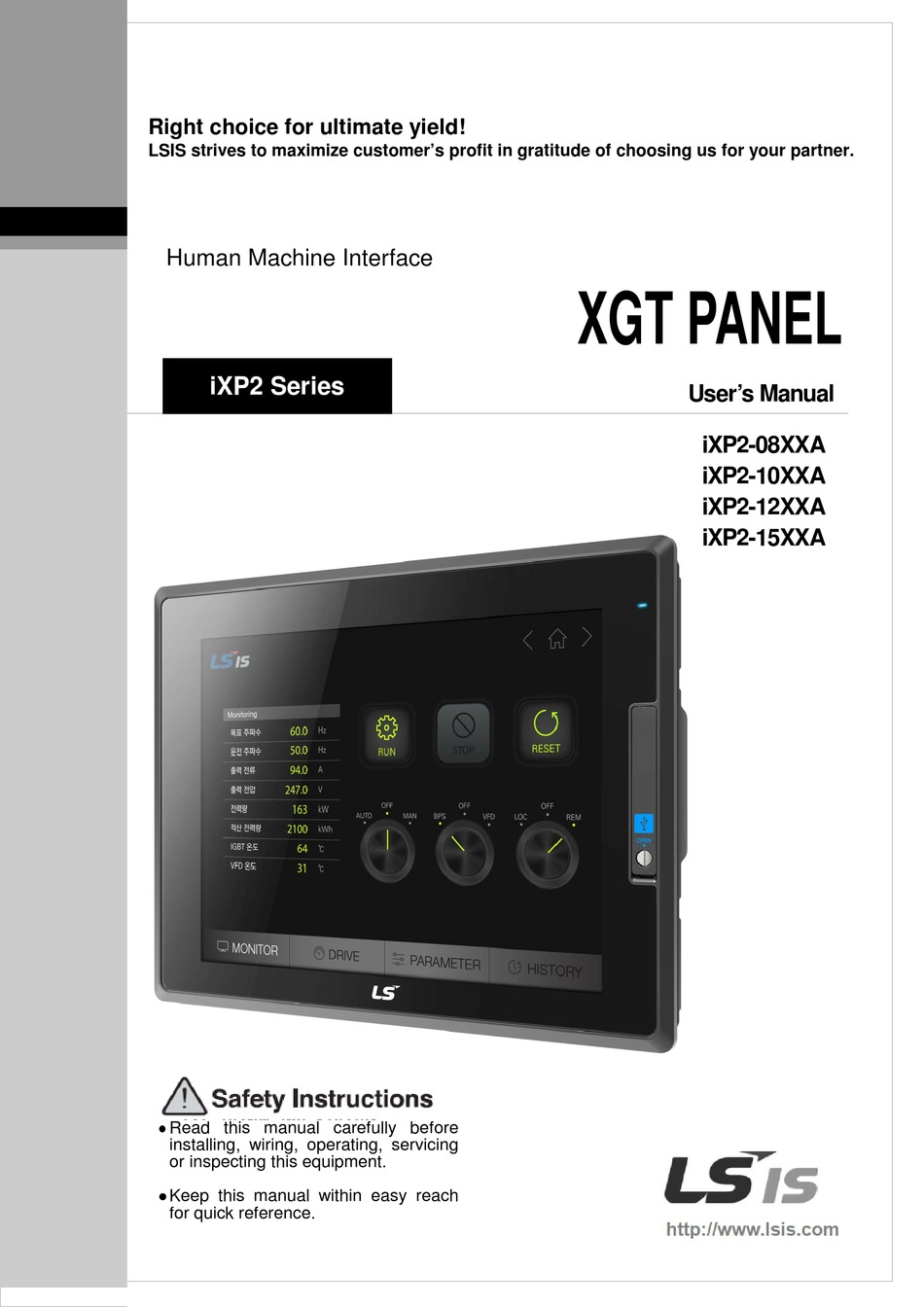

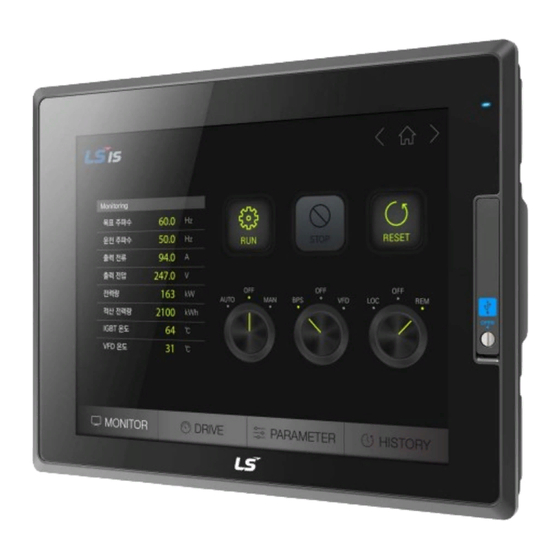

Page 1 Right choice for ultimate yield! LSIS strives to maximize customer’s profit in gratitude of choosing us for your partner. Human Machine Interface XGT PANEL iXP2 Series User’s Manual iXP2-08XXA iXP2-10XXA iXP2-12XXA iXP2-15XXA Read this manual carefully before  installing, wiring, operating, servicing or inspecting this equipment.
Page 2 Safety Precautions Before using the product… To use the product safety and effectively, please read this instruction manual thoroughly before use. ► Please keep to the safety precaution, for it to prevent accidents and potential danger from occurring. ► Safety precaution is classified into ‘Warming’ and ‘Caution’ and their meanings are as follows. Warning Violating the instruction may result in serious personal injury or death.
Page 3: Installation Precautions
Safety Precautions Design Precautions Warning ► Install a safety circuit external to the HMI to protect the whole control system in case of external power supply trouble. Serious trouble may occur to the entire system due to erroneous output/operation of the HMI. Design Precautions Caution ►...
Page 4 Safety Precautions Wiring Precautions Warning ► Be sure to turn off the HMI and external power before wiring. Otherwise, it may result in an electric shock or damage to the product. Caution ► Wire correctly by checking each of the product’s rated voltage and terminal layout. Otherwise, it may result in fire, electric shock or erroneous operation.
Page 5 Safety Precautions Startup and Maintenance Precautions Warning ► Do not touch the terminals while power is on. Otherwise, it may cause electric shock or erroneous operation ► Turn off the HMI and external power when cleaning or tightening the terminal. Otherwise, it may cause electric shock or erroneous operation.
Page 6 Revision History Revision History Version Date Contents Revised location V1.0 ‘18.01 First Edition ※ The number of User’s manual is indicated the right side of the back cover. ⓒ LSIS Co., Ltd2018 All Rights Reserved.
Page 7: Table Of Contents
Contents Chapter 1 General Introduction ..............1-1~1-6 1.1 How to use the Instruction Manual ......................1-1 1.2 Feature ..............................1-2 1.3 Terminology ............................1-5 1.4 Specification of product name ....................... 1-6 Chapter 2 System Configuration ............... 2-1~2-4 2.1 Part Names ............................2-1 2.2 System Configuration ..........................
Page 8 Contents 5.2.4 Flash Memory Diagnostic ......................5-22 5.2.5 USB Memory Diagnostic ......................5-23 5.2.6 Serial Diagnostic ........................5-24 5.2.7 SD Card Diagnostic ........................5-26 5.3 PLC Information ........................... 5-27 5.3.1 PLC Communication Setting ..................... 5-28 5.3.2 Connection Information ......................5-29 5.3.3 PLC Information ........................
Page 9 Contents Appendix 1 Troubleshooting.............. App1-1~App1-25 1. Type of Problems ..........................App 1-1 2. Problems when Starting ........................App 1-2 3. Problems after the Monitor on......................App 1-4 4. Display Problems of Figure and Object ....................App 1-6 5. Communication Problems ........................App 1-9 6. USB Removal of Memory Card......................App 1-10 7.
Page 10: Chapter 1 General Introduction
Chapter 1 General Introduction 1.1 How to use the Instruction Manual This instruction manual provides information such as specification, how to use, etc., of the product needed to operate iXP2 series of XGT Panel. The user manualPanel.el.provides information s Sequence...
Page 11: Feature
Chapter 1 General Introduction 1.2 Feature The XGT Panel has the following features. (1) Various types of external interfaces (a) Supporting various device of USB, Ethernet, it maximizes the customer’s usability. (b) PLC, Inverter, and other control devices. • RS-232C, RS-422/485 and Ethernet (10Base-T / 100Base-TX / 1000-Base-T) communication with the control device. (2) Based on Windows CE (a) Adopted Microsoft Company's WEC 7 •...
Page 12 Chapter 1 General Introduction (4) Providing a high-quality screen (a) It adopts high-performance liquid crystal display (LCD) to provide high picture quality and sharpness. • It adopts thin film transistor liquid crystal display (TFT LCD) which can display 24bit color. (b) Supports various graphic formats.
Page 13 Chapter 1 General Introduction (7) Providing various convenience functions (a) Various alarm functions are provided. • The history alarm can be divided into several alarm groups and alarm list, and the desired alarm can be displayed on the screen with the alarm explorer. •...
Page 14: Terminology
Chapter 1 General Introduction 1.3 Terminology It describes terms used in this manual. Term Definition Remarks A standard element that has a specified function which Ex) CPU module, configures the system. Module Power Module, Devices such as I/O board, which inserted onto the mother I/O module board or base unit..
Page 15 Chapter 1 General Introduction 1.4 Standard of product name It describes terms used in this product names. iXP2 - (A) (B)(C)(D) Division Sign Contents Remarks 21 cm (8.4”) 26 cm (10.2”) (A) LCD type 31 cm (12.1”) 38 cm (15.0”) WinCE 7.0 (Core) (B) O/S type WinCE 7.0 (Pro)
Page 16: Chapter 2 System Configuration
Chapter 2 System Configuration Chapter 2 System Configuration Characteristic of each iXP2 series and its system configuration are as follow; 2.1 Part Names 1. iXP2-08XX / 10XX / 12XX / 15XX Name Function 1) Display the power status of the device Power LED ※...
Page 17: System Configuration
Chapter 2 System Configuration iXP2-1200A Name Function PE connection PE connector Power Connector Power and PE connections Fixing Cables Cable fixing hole RS-422/485 connector RS-422/485 (COM3): PLC / Control device communication <Setting switch> RS-422/485 termination resistance On Battery cover, A Side. Reset switch, (Default) No.
Page 18 Chapter 2 System Configuration 13 14 15 Name Function Audio-Out Stereo audio output HDMI Clone mode display output 1) USB memory connection: Logging / Recipe / Alarm / Project data Backup and transfer USB host 2) User Interface Connection: Use mouse / Keyboard 3) Printer connection: Print function Ethernet: 10Base-T / 100Base-TX 1) Project data transmission...
Page 19 Chapter 2 System Configuration 2.2 System Configuration To use XGT Panel, you must create project data in XP-Builder and transfer it to XGT Panel. By default, you can connect to XGT Panel using USB. Basically, it can be connected with XGT Panel using RS-232C method. The maximum communication speed is 115,200 [bps].
Page 20: Chapter 3 Standard Specification
Chapter 3 Standard Specification Chapter 3 Standard Specification 3.1 General Standards General specifications of XGT Panel are as follows. Related Item standard Standards Ambient operating 0 ° C ~ + 50 ° C temperature Storage temperature -20 ° C ~ + 60 ° C 10∼85%RH, non-condensing.
Page 21 Chapter 3 Standard Specification Note (1) IEC(International Electro technical Commission) - International private group facilitating international cooperation of electric/electronic standardization, issuing international standards and operating the compliance evaluation systems. (2) Pollution degree - As an index representing the pollution degree of an environment to determine the insulation of a device, pollution degree 2 generally means the status generating non-conductive contamination.
Page 22: Function Standards
Chapter 3 Standard Specification 3.2 Function Standards The functional specifications of XGT Panel are as follows. iXP2-08XXA Item iXP2-10XXA iXP2-12XXA iXP2-15XXA Display type TFT color LCD 8.4 " Screen size 10.4 " 12.1 " 15 " Display resolution 800 x 600 1024 x 768 Color indication 24-bit color (16.7M colors)
Page 23 Chapter 3 Standard Specification Note (1) Caution in power connection - With AC power applied to DC power device, it may cause product damage or fire. Please pay a special attention to connection. (2) PE Connection - For the device PE, please use PE terminal. (3) Battery discharge-prevention DIP switch - In order to prevent the battery discharge, turn off the DIP switch No.4.
Page 24: Chapter 4 Installation And Wiring
Chapter 4. Installation and Wiring Chapter 4 Installation and Wiring 4.1 Installation 4.1.1 Installation environment This machine has high reliability regardless environment. But for reliability and stability, be careful the followings (1) Environment condition (a) Install at the panel which can protect this machine from water and dust. XGT Panel is designed by IP66 Standard in front parts and IP20 Standard in rear parts.
Page 25 Chapter 4. Installation and Wiring Note (1) Waterproof and dustproof standard (a) IP66 Standards 1) The protection standards of XGT Panel have been designed to meet the IP66 test conditions, in accordance with the degrees of protection provided by enclosures of IEC60529. As this machine installed at the panel, it is not guaranteed with all installation environment even though its protection standards for the front parts are satisfied.
Page 26: Notice In Handling
Chapter 4. Installation and Wiring 4.1.2 Notice in handling This section describes the precautions for handling the XGT Panel from opening to installation. • Do not drop or subject it to strong impacts. • Do not open the product case or take any action. In such cases, we are not responsible for the product. •...
Page 27 Chapter 4. Installation and Wiring Panel installation • When mounting the XGT Panel on the panel, please install 100mm or more in each direction. Unit: [mm] Note (1) In order to be less affected by electromagnetic waves (radiation noise) or heat generated by other control devices, Required.
Page 28 Chapter 4. Installation and Wiring (4) Fixing • Fix the XGT Panel using the brackets on the panels as shown below. (The bracket is included in the product.) Fixed Bracket Panel Note (1) During installation, XGT Panel should be closely contacted to the panel not to have any gap. In the environment requiring water-proof/dust-proof effect, install and fix a bracket on a slope.
Page 29: Wiring
Chapter 4. Installation and Wiring 4.2 Wiring Describes the wiring matters when installing the XGT Panel. 4.2.1 Power Wiring XGT Panel is divided into DC (DC) and AC (AC) products. power Product Name iXP2-0800D iXP2-1000D DC 24V iXP2-1200D iXP2-1500D iXP2-0800A iXP2-1000A AC100-240V iXP2-1200A...
Page 30 Chapter 4. Installation and Wiring Use the following specifications for the power cable. Type Cable specification (Unit: ㎟) Wire Type Thermal Resistance Screw Torque Power and protection 1.5(AWG16) ~ 2.5(AWG12) Copper 60℃ 0.51N•m ground Note (1) For installations where there is voltage drop, it is recommended to use stranded wire with a cross sectional area greater than 2 ㎟.
Page 31 Chapter 4. Installation and Wiring For XGT Panel power supply, I / O devices and power devices, separate the power supply system as shown below. Main Noise power Power Filter Others Note Do not bring the power line of the XGT Panel close to the main circuit (high voltage, high current) line or I / O signal line.
Page 32: Ground Wiring
Chapter 4. Installation and Wiring When there is concern about noise penetration, use an insulation shield transformer or a noise filter. Be sure to twist the wiring of the input power supply as short as possible and do not let the wiring of the shielding transformer or noise filter pass through the duct.
Page 33: Chapter 5 Xgt Panel Menu Explanation
Chapter 5 XGT Panel Menu Explanation Chapter 5 XGT Panel Menu Explanation This chapter describes how to set the environment such as XGT Panel time setting, Ethernet connection setting, backlight setting. If you press the [Settings] button on the XGT Panel main screen, you can set the environment of XGT Panel. WinCE O/S V1.0 XP-Runtime V2.10 B[010] [XGT Panel Basic] After booting the XGT Panel after turning on the power, the XP-Runtime main screen is displayed.
Page 34 Chapter 5 XGT Panel Menu Explanation Goto MainMenu 구분 의미 세부 항목 비고 Settings PLC setting menu SHOW INFO Refer to PLC Information connected with Program Monitor 5.3 PLC Information XGT Paenl N:1 Settings XGT Panel Update Refer to Update XGT Panel For updating XGT Panel 5.4 Update XGT Panel Project Download...
Page 35: Settings
Chapter 5 XGT Panel Menu Explanation 5.1 Settings WinCE O/S V1.0 XP-Runtime V2.10 B[010] 5.1.1 Backlight Setting Press the [Backlight Settings] button on the [System Configuration] screen to go to the setup screen as follows. [XGT Panel Setting]...
Page 36 Chapter 5 XGT Panel Menu Explanation [Backlight setting] Menu Explanation Brightness Backlight Brightness can be adjusted. Do not turn off backlight Backlight power is always on. Turn off backlight after idle time If you do not touch for a certain period of time, the backlight automatically turns off. Turn off after The backlight turns off after the set time (in minutes).
Page 37: Touch Setting
Chapter 5 XGT Panel Menu Explanation 5.1.2 Touch Setting You can adjust the sensitivity of the touch according to the type of gloves according to the work environment during touch operation. If you press [Touch Setting] on the System Configuration screen as shown below, the setting window will be activated and you can set the sensitivity according to the type of glove.
Page 38: Datetime Setting
Chapter 5 XGT Panel Menu Explanation 5.1.3 DateTime Setting You can set the date and time of XGT Panel by pressing [DateTime Setting] button on [System Configuration] screen as follows. [XGT Panel Setting] 2017 Today: 4/23/2017 [Date / Time Setting] Note Date / time view and setting are also available in the device information view of the communication setting dialog of XP-Builder.
Page 39: Environment Setting
Chapter 5 XGT Panel Menu Explanation 5.1.4 Environment Setting If you press the [Environment Setting] button on the [System Configuration] screen to go to the setup screen as follows. [XGT Panel Setting]...
Page 40 Chapter 5 XGT Panel Menu Explanation (1) Screen Menu Explanation Goto screen After rebooting XGT Panel or downloading edit data, after boot up You will switch. If you disable this setting, Button to move to the screen. Quick start When I start the screen, I do not cache the image in advance, It does not appear.
Page 41 Chapter 5 XGT Panel Menu Explanation (2) General Menu Explanation Hide mouse cursor Mouse cursor does not appear after scrolling. Buzzer On / Off You can set whether buzzer is used or not. Buzzer test You can test the buzzer. Low Memory Mode XGT Panel starts monitoring the images used on the screen to speed up the screen operation.
Page 42 Chapter 5 XGT Panel Menu Explanation (3) BK Image Menu Explanation Set background image If you select an image, the standby screen and desktop are selected after the XGT Panel is powered on. If [Use boot image] option is selected, images with resolutions other than XGT Panel, It can not be used unless it is a 24bit BMP image.
Page 43 Chapter 5 XGT Panel Menu Explanation Menu Explanation Printer Settings Displays additional printer print settings dialogs. If there is no printer information You should download from XP-Builder with the following message. From XP-Runtime, go to Start menu and prepare for downloading. After using the printer, you can use the menu.
Page 44 Chapter 5 XGT Panel Menu Explanation Printer Settings Menu Explanation Port Connection method: Displays the connection method. Printer type Printer type: Displays the printer type. Print direction Orientation: Set whether it is horizontal or vertical. Print color Print color: Set whether it is color or black and white. High quality print Print quality: Set whether to print advanced.
Page 45 Chapter 5 XGT Panel Menu Explanation (5) HDMI Menu Explanation Not used HDMI function is disabled. Clone mode The same screen is displayed on the monitor connected by HDMI. Extended mode Expands the screen to a monitor connected via HDMI. (To be implemented) 5-13...
Page 46: Ethernet Setting
Chapter 5 XGT Panel Menu Explanation 5.1.5 Ethernet Setting If you press the [Ethernet Setting] button on the [System Configuration] screen as below, you can set the IP to use Ethernet. You can change the IP by pressing the [Set] button for each item of IP address, Subnet Mask and Gateway. If you click [OK] button, changed IP information will be saved.
Page 47: Buzzer Setting
Chapter 5 XGT Panel Menu Explanation 5.1.6 Buzzer Setting You can adjust the volume and tone of Buzzer of XGT Panel. [XGT Panel Setting] [Buzzer setting] [Explanation of the dialog box] Menu Explanation Buzzer On You can turn on or off the buzzer sound generated when the selection is made. Buzzer volume You can adjust the volume of the buzzer.
Page 48: Sound Setting
Chapter 5 XGT Panel Menu Explanation 5.1.7 Sound Setting You can adjust the volume of XGT Panel. [XGT Panel Setting] [Sound setting] 5-16...
Page 49: Xp-Remote Setting
Chapter 5 XGT Panel Menu Explanation 5.1.8 XP-Remote Setting You can change the settings for XP-Remote that can remotely control the XGT Panel. [XGT Panel Setting] [XP-Remote setting] [Explanation of the dialog box] Menu Explanation Allow XP-Remote to connect Allow connection of remote XP-Remote. Max.
Page 50: Diagnostics
Chapter 5 XGT Panel Menu Explanation 5.2 Diagnostics This chapter explains the functions that can be used to diagnose communication terminal, screen and touch function of XGT Panel. If you click the [Diagnosis] button on the main screen of XGT Panel, a menu for diagnosing each function of XGT Panel is displayed. WinCE O/S V1.0 XP-Runtime V2.10 B[010] [XGT Panel Basic] [XGT Panel Diagnostics]...
Page 51: Screen Diagnostic
Chapter 5 XGT Panel Menu Explanation 5.2.1 Screen Diagnostic When you press the [Screen] button, the screens with different colors are displayed in succession with the buzzer sound. After all the screens for diagnosis are displayed, the graph will appear and the [Close] button will appear in the upper left corner. When this [Close] button is pressed, Returns to the Diagnostics screen.
Page 52: Touch Diagnostic
Chapter 5 XGT Panel Menu Explanation 5.2.2 Touch Diagnostic When you press the [Touch] button, the diagnostic screen appears. If you touch the screen, you can see that it is displayed like the picture below. Press the [OK] button to exit the screen. [XGT Panel Diagnostics] [Touch Diagnostic] 5-20...
Page 53: Backup Memory Diagnostic
Chapter 5 XGT Panel Menu Explanation 5.2.3 Backup Memory Diagnostic If you press the [Backup Memory] button, you can see the diagnostic results in the confirmation window. [XGT Panel Diagnostics] [Backup Memory Diagnostic] Note (1) If 'NVRAM Data Access ~~ Fail' occurs, take A/S action. (2) If 'BATTERY STATUS ~~ BAD' occurs, you have to replace the battery through A/S.
Page 54: Flash Memory Diagnostic
Chapter 5 XGT Panel Menu Explanation 5.2.4 Flash Memory Diagnostic When you press the [Flash Memory] button, the diagnostic results appear in the confirmation window. [XGT Panel Diagnostics] [Flash Memory Diagnostic] Note 1. If "Read Disk Information Error!" Occurs, please contact us. 2.
Page 55: Usb Memory Diagnostic
Chapter 5 XGT Panel Menu Explanation 5.2.5 USB Memory Diagnostic When you press the [USB Memory] button, the diagnostic result appears in the confirmation window. [XGT Panel Diagnostic] [USB Memory Diagnostic] Note If USB memory is installed and 'Read Disk Information Error!' Occurs, remove it, insert it again and test do it.
Page 56: Serial Diagnostic
Chapter 5 XGT Panel Menu Explanation 5.2.6 Serial Diagnostic Diagnostic function for serial communication port such as RS-232C, RS-422. Press the [Serial] button to diagnose the serial ports installed on the XGT Panel. (However, for diagnosis, loop back terminal must be connected to each port.) [XGT Panel Diagnostic] [Serial port selection screen] [Serial Diagnostic]...
Page 57 Chapter 5 XGT Panel Menu Explanation Please make RS-232C port terminal as below. (Connect pins 2 and 3.) Connect the RS-422/485 port terminals as shown below. (In case of RS-485 communication, connect pin 1, pin 3, pin 2 and pin 4) name function TX +...
Page 58: Sd Card Diagnostic
Chapter 5 XGT Panel Menu Explanation 5.2.7 SD Card Diagnostic Displays information of SD card memory inserted in XGT Panel. Press the [SD Card] button to diagnose the SD memory mounted on the XGT Panel. [XGT Panel Diagnostic] [SD Card Diagnostic] Note If 'Read Disk Information Error!' Occurs when an SD card is installed, remove it, insert it again, and test it.
Page 59: Plc Information
Chapter 5 XGT Panel Menu Explanation 5.3 PLC Information The PLC information view function is to view the connected XGT Panel information and CPU information and history of the target PLC. WinCE O/S V1.0 XP-Runtime V2.10 B[010] [XGT Panel Basic Screen] Note PLC connection status can be viewed only when project data is transferred to XGT Panel.
Page 60: Plc Communication Setting
Chapter 5 XGT Panel Menu Explanation 5.3.1 PLC Communication Setting [Settings] is a function to change communication parameters of PLC communicating with XGT Panel, and you can change PLC communication setting items by clicking [Settings] button [PLC information] [PLC Communication Setting] Note PLC communication setting screen may be different for each driver.
Page 61: Connection Information
Chapter 5 XGT Panel Menu Explanation 5.3.2 Connection Information You can check the connection number, PLC manufacturer, target PLC type, connection method, IP address, and timeout time set up for connection with PLC in XP-Builder. [PLC information] [Explanation of the dialog box] Item Explanation Connection No.
Page 62: Plc Information
Chapter 5 XGT Panel Menu Explanation 5.3.3 PLC Information You can check the CPU type, operation mode, status, version and scan time of our own PLC model and provide information only when connected with PLC. Note PLC types that can view PLC information are as follows. - MASTER-K CPU, FEnet, Cnet - GLOFA-GM CPU, FEnet, Cnet - XGK / XGB / XGI / XGR CPU, FEnet, Cnet...
Page 63: Plc Operation Mode Conversion History
Chapter 5 XGT Panel Menu Explanation 5.3.5 PLC Operation Mode Conversion History You can check the PLC run / stop operation mode history of your PLC model. Note The following PLC types are available to view the PLC operation mode switching history. - MASTER-K CPU does not have operation mode switching history.
Page 64: Plc System History Information
Chapter 5 XGT Panel Menu Explanation 5.3.7 PLC System History Information PLC system history can be checked. Note The PLC types that can view the system history are as follows. - The MASTER-K CPU has no system history. - Only available with the GLOFA-GM CPU (GM4C). Other CPUs have no system history. - XGK / XGB / XGI / XGR CPU, FEnet, Cnet 5-32...
Page 65: N:1 Setting
Chapter 5 XGT Panel Menu Explanation 5.3.8 N: 1 Setting XGT Panel supports N: 1 service which enables communication between several XGT Panels and one PLC. You can set details using the [N: 1 Settings] menu. [PLC information] [N: 1 setting] [Explanation of the dialog box] Menu Explanation...
Page 66: Program Monitor
XGT Panel can monitor ladder of PLC XGK of LS Industrial Systems. [PLC information view screen] Note Program monitor modules must be installed via XP-Manager. LSIS: XGK / XGB CPU, Cnet, and Enet driver. You must specify the use of the program monitor in the project properties of XP-Builder. 5-34...
Page 67: Xgt Panel Update
Chapter 5 XGT Panel Menu Explanation 5.4 XGT Panel Update The functions described in this chapter are for updating the XGT Panel software. By default, XGT Panel is also optimized when downloading project file from XP-Builder. Use this function only if you need to update only the XGT Panel in particular. The software of the XGT Panel will need to be updated with the new version as new functions and enhancements are added.
Page 68: Storage Function
Chapter 5 XGT Panel Menu Explanation 5.5 Storage Function 5.5.1 Overview Download the project edited by the user in XP-Builder from PC or upload the project backed up in the device to PC Uploading and updating the device are usually done by connecting USB cable or Ethernet cable to XGT Panel series. You can do it through.
Page 69: Downloading A Project Using A Storage Device
Chapter 5 XGT Panel Menu Explanation 5.5.2 Downloading a project using a storage device 1. When you touch [Download Project] in the storage function menu, the following dialog box is displayed. 2. Project storage path of USB memory, SD card is displayed as below. - \ USB Storage \ XP_Project \ - \ SD Storage \ XP_Project \ If you want to download a project using a storage device, it must be stored in the directory in the above path.
Page 70: Uploading A Project Using A Storage Device
Chapter 5 XGT Panel Menu Explanation 5.5.3 Uploading a project using a storage device 1. If you touch [Upload Project] in the storage function menu, the following dialog box is displayed. 2. The upload path of USB memory and SD card is displayed as below. - \ USB Storage \ XP_Backup \ - \ SD Storage \ XP_Backup \ 3.
Page 71: Updating The Device Using A Storage Device
Chapter 5 XGT Panel Menu Explanation 5.5.4 Updating the device using a storage device 1. If you touch [Update XGT Panel] in the storage function menu, the following dialog box will be displayed. 2. The path of USB memory, SD card is displayed as follows. - \ USB Storage \ XP_Software \ - \ SD Storage \ XP_Software \ If you want to update the device using an external storage device, the XGT Panel Software file is in the directory in the...
Page 73: Chapter 6 Backup Files By Using Storage Devices
Chapter 6 Backup files by using Storage Devices Chapter 6 Backup files by using Storage Devices This chapter describes the management functions for external storage devices that store backup data of logging, recipe, and screen images. (1) XGT Panel can back up logging, recipe, screen image data to USB storage device according to the settings set in XP-Builder. (2) If there is no capacity to be backed up on the specified storage device, the existing data is deleted according to the settings set by XP-Builder, and the backup process or backup is stopped.
Page 74 Chapter 6 Backup files by using Storage Devices 1. Path structure in case of logging backup (1) Directory named ‘Logging’ is created under the root directory of USB equipment (2) The directory whose name is logging number is created under Logging directory. (3) The directory whose name is year, month is created under Logging number directory.
Page 75 Chapter 6 Backup files by using Storage Devices 2. Path structure in case of recipe backup (1) Directory named ‘Recipe’ is created under USB storage equipment root directory. (2) Year, Month directory is created under Recipe directory (3) The lower directory structure is same as that of logging backup path structure. (4) Name of recipe backup file includes the created hour, minute, second information.
Page 76 Chapter 6 Backup files by using Storage Devices (2) Recorded live image will be stored below MovieStill directory. (3) Blue screen image file has the name made of year/month/date/hour/minute/second information when it was created. (a) Backup file will be created in JPG type. (b) File name starts with ‘STL’...
Page 77: Operation Setting When There Is No Space For Backup
Chapter 6 Backup files by using Storage Devices 6.2 Operation Setting when there is no space for Backup You can designate in the XP-Builder whether to cancel the backup or delete the oldest backup file and execute backup when there is no space in the storage equipment. [Project Property Setting ->...
Page 78: Monitoring Connection Status Of External Storage Equipment
Chapter 6 Backup files by using Storage Devices 6.3 Monitoring Connection Status of External Storage Equipment XGT Panels monitors connection status about external storage equipment designated when setting backup path in XP-Builder. The following figure is backup path specified in XP-Builder. In order to use this monitoring function, you have to set about system alarm window, and then the project should be downloaded.
Page 79 Chapter 6 Backup files by using Storage Devices In case USB storage equipment is removed during operation after setting the path for saving Logging backup file as USB storage equipment and downloading the project into device, the designated system alarm (HS951.0) is set. In case storage equipment is equipped again, alarm is reset.
Page 80: Chapter 7 Maintenance
Chapter 7 Maintenance Chapter 7 Maintenance To keep the XGT Panel best, examine the XGT Panel. 7.1 Maintenance Because an error may be developed by environment, the periodic maintenance is needed. You should check the following categories once or twice every 6 months. Maintenance category Criterion Action...
Page 81: Periodical Maintenance
Chapter 7 Maintenance 7.3 Periodical Maintenance Check the followings once or twice every six months and take measure. Maintenance Maintenance category Criterion Action method Surrounding 0 ~ 50 °C Temperature Measure through Modify it to meet Surrounding Temperature the general standard. Environment 10 ~ 85%RH Humidity...
Page 82 Chapter 7 Maintenance Remark (1) Battery exchange time is expressed by alarm. System alarm is expressed when system alarm category is set at the XP-Builder as follows. (2) Replace Battery With Hitachi Maxell, Part No. CR2032 Only. Use of another battery may present a risk of fire or explosion.
Page 83: Chapter 8 Emc Standard Certification
Chapter 8 EMC Standard Certification Chapter 8 EMC Standard Certification 8.1 Requirement for EMC Standard Certification EMC command is regulated on “It doesn’t produce the Strong electromagnetic waves: Emission” and “It is not affected by electromagnetic wave from external: Immunity”. The following is describing the contents to meet the EMC command when configuring the system by using the XGT Panel.
Page 84: Kc Standard Certification
Chapter 8 EMC Standard Certification Directive: Electromagnetic Compatibility Directive 89/336/EEC amended by the Directive 93/68/EEC 8.1.2 KC Standard Certification The XGT Panel acquire the electromagnetic fitness registration (KC specification) certified by wave laboratory under information-communication part. A grade device This device acquires KC for industrial use. If device is not purchased properly, exchange it to device for home use.
Page 85: Appendix 1 Troubleshooting
Appendix 1. Troubleshooting Appendix 1 Troubleshooting 1. Type of Problems It classifies problems from XGT Panel including an indicated figure, indication of the object, and problems appeared when downloading. Refer to the following chart. Description Classification of problem Malfunction when starting. Problem when starting ☞Please refer to the 2.
Page 86: Problems When Starting
Appendix 1. Troubleshooting 2. Problems when Starting  Why does black screen show up when turning on the device? Phenomenon: When turning on the device, black screen shows up and the booting is impossible. < Cause > (1) Because the device is not set as a booting mode. (2) Black screen may appear because of malfunction of backlight.
Page 87 Appendix 1. Troubleshooting <Solution> (1) If the power initialization option(“Reset USB Power”) of the equipment is selected, cancel the selection and then permit the power again. The “Reset USB Power” option is an additional function to improve the initialization of the storage device with slow recognition speed or low recognition ratio. Depending on the characteristics of the storage device, however, the power initialization can be an obstacle to the initialization work.
Page 88: Problems After The Monitor On
Appendix 1. Troubleshooting 3. Problems after the Monitor on  When touching the screen it reacts in a different area or it may not react at all? Phenomenon: When touching the screen it reacts in a different area or it may not react at all. <...
Page 89 Appendix 1. Troubleshooting  After continuously adding projects to the screen, and adding/editing objects, the operation speed has been slowed down. Phenomenon: After adding projects to the screen and also adding/editing objects, it feels like the operation speed of XGT Panel gets slowed down. <Causes>...
Page 90: Display Problems Of Figure And Object
Appendix 1. Troubleshooting 4. Display Problem of Figure and Object  The shape of object is not shown or the number or character value which has to be shown is not shown. Phenomenon: The shape of object is not shown or the number or character value which has to be shown is not shown.
Page 91 Appendix 1. Troubleshooting Object type Phenomenon But if communication is set with other object in the same part screen, it can be shown by that object. Animation Animation is not shown. Graph is not shown. When designating the background image, image is shown as Bar Graph it is.
Page 92 Appendix 1. Troubleshooting  After switching the screen, the previous screen remains for a few minute. Phenomenon: After switching the screen, when there is no background or image in the part or number indication device, the previous screen remains for a few minute because of change of part. <...
Page 93: Communication Problems
Appendix 1. Troubleshooting 5. Communication Problems  It seems that communication does not work. Phenomenon: On the screen where the object is not many, communication works but when you move the screen where the object is many, timeout occurs. < Cause > (1) In the device setting, the communication time-out is set to be too short.
Page 94: Usb Removal Of Memory Card
Appendix 1. Troubleshooting 6. USB Removal of Memory Card  When removing the USB memory equipment, device is stopped for some times. Phenomenon: This happens when doing data backup including logging, recipe. < Cause > (1) This happens because memory card is removed when doing data backup. <Solution>...
Page 95: External Memory Recognition
Appendix 1. Troubleshooting 7. External memory recognition  USB, SD Card not recognized. Phenomenon: The USB or SD card is inserted but the unit does not recognize it. <Cause> (1) It appears when the USB memory or SD card is partitioned. <Solution>...
Page 96: Error Message During Execution Of Programs
Appendix 1. Troubleshooting 9. Error Message during Execution of Programs In case that problems occur during execution of XGT Panel including the start of device, diagnosis of device and environment setting, project download, monitoring of control device, and error messages occur as type of box. At this time the message indicates the code made by 4 digit number.
Page 97 Appendix 1. Troubleshooting Occurren Error code Object Error message Reason and measure Type Address location Viewing Now, there is no downloaded project so No project in XGT device 0x03 0x01 you can’t see connection information. Panel Panel. information Download the project from XP-Builder. Because of update error or Flash disk Failed to Start engine.
Page 98 Appendix 1. Troubleshooting Occurren Error code Object Error message Reason and measure Type Address location System 0x21 None alarm Scheduler 0x22 None related Recipe 0x23 None related Logging 0x24 None related Data list 0x25 None Abnormal send- Communication status is abnormal. payload.
Page 99 Appendix 1. Troubleshooting Occurren Error code Object Error message Reason and measure Type Address location In case of not reading file where project property is included, download is Failed to get Project 0x06 stopped. If this problem is repeated, Builder Contact the near Customer Service Center.
Page 100 Appendix 1. Troubleshooting Occurren Error code Object Error message Reason and measure Type Address location In case that it fail to delete the image Failed to delete Image file of previous project because of error 0x0D File. Please reboot of XGT Panel, download is stopped. If Panel XGT Panel.
Page 101 Appendix 1. Troubleshooting Occurren Error code Object Error message Reason and measure Type Address location When downloading, the alarm history in Failed to initialize the NV-RAM is initialized in case of RECIPE area in NV selecting the previous project’s monitor 0x16 RAM.
Page 102 Appendix 1. Troubleshooting Occurren Error code Object Error message Reason and measure Type Address location Failed to XGP Panel It can’t find software to reboot XGT startup program. 0x1D Panel. Panel Please update XGT Update the XGT Panel. Panel Software. The project data was not downloaded Project data is not normally because of communication...
Page 103 Appendix 1. Troubleshooting Occurren Error code Object Error message Reason and measure Type Address location There is version information file but when it can’t read file normally because Cannot read XGT of the device error, downloading is 0x57 Panel software Panel stopped because it doesn’t know version.
Page 104 Appendix 1. Troubleshooting Occurren Error code Object Error message Reason and measure Type Address location The project data file is not saved correctly. Save the project data file at Download file size is the USB again. When this symptom is 0x5E Panel invalid.
Page 105 Appendix 1. Troubleshooting Occurren Error code Object Error message Reason and measure Type Address location Downloaded font file is moved to the original storage location. But when it Cannot move new font 0x66 fails, the downloading is stopped. If this Panel files.
Page 106 Appendix 1. Troubleshooting Occurren Error code Object Error message Reason and measure Type Address location In the present XGT Panel the new updated XGT Panel software’s name can not be changed. After rebooting the XGT Panel, update again. When rebooting, if you can’t start engine, delete Failed to rename 0x05...
Page 107 Appendix 1. Troubleshooting Occurren Error code Object Error message Reason and measure Type Address location Because the each module version Failed to Create information can’t be read because of Panel/ 0x21 Initialized Module XGT Panel’s error, it failed to initialize. Version File.
Page 108 Appendix 1. Troubleshooting Occurren Error code Object Error message Reason and measure Type Address location To reboot the engine is not available because of wrong file which is developed by downloading wrong module or communication error. Failed to Start Engine. Touch 0x28 Please update engine...
Page 109 Appendix 1. Troubleshooting Occurren Error code Object Error message Reason and measure Type Address location XGT can’t be set as update mode because of XGT Panel error. After downloading new XGT Panel module through homepage, etc., copy UpdateNew.exe file among new module to the Failed to Initialize \\FlashDisk\LSISProduct\ directory of...
Page 111: Appendix 2 Dimensions
Appendix2. Dimensions Appendix 2 Dimensions (Unit: mm) 1. iXP2-08XX App 2-1...
Page 112: Ixp2-10Xx
Appendix 2. Dimensions 2. iXP2-10XX App 2-2...
Page 113: Ixp2-12Xx
Appendix2. Dimensions 3. iXP2-12XX App 2-3...
Page 114: Ixp2-15Xx
Appendix 2. Dimensions 4. iXP2-15XX App 2-4...
Page 115: Appendix 3 Warranty And Environmental Policy
Appendix 3. Warranty and Environmental Policy Appendix 3 Warranty and Environmental Policy 1. Warranty contents One. Warranty The warranty period for your product is 18 months from the date of manufacture. 2. Scope of warranty Partial replacements or repairs are available for any faults that occur during the above warranty period. However, please note that if it falls under the following, it will be excluded from the guarantee range.
Page 116 Tel : 86-510-8534-6666 Fax : 86-510-8534-4078 2000 Millbrook Drive, Lincolnshire, Chicago, IL 60069, United States of America Tel : 847-941-8240 Fax : 847-941-8259 ※ LSIS constantly endeavors to improve its product so that information in this manual is subject to change without notice. 2018. 01...
