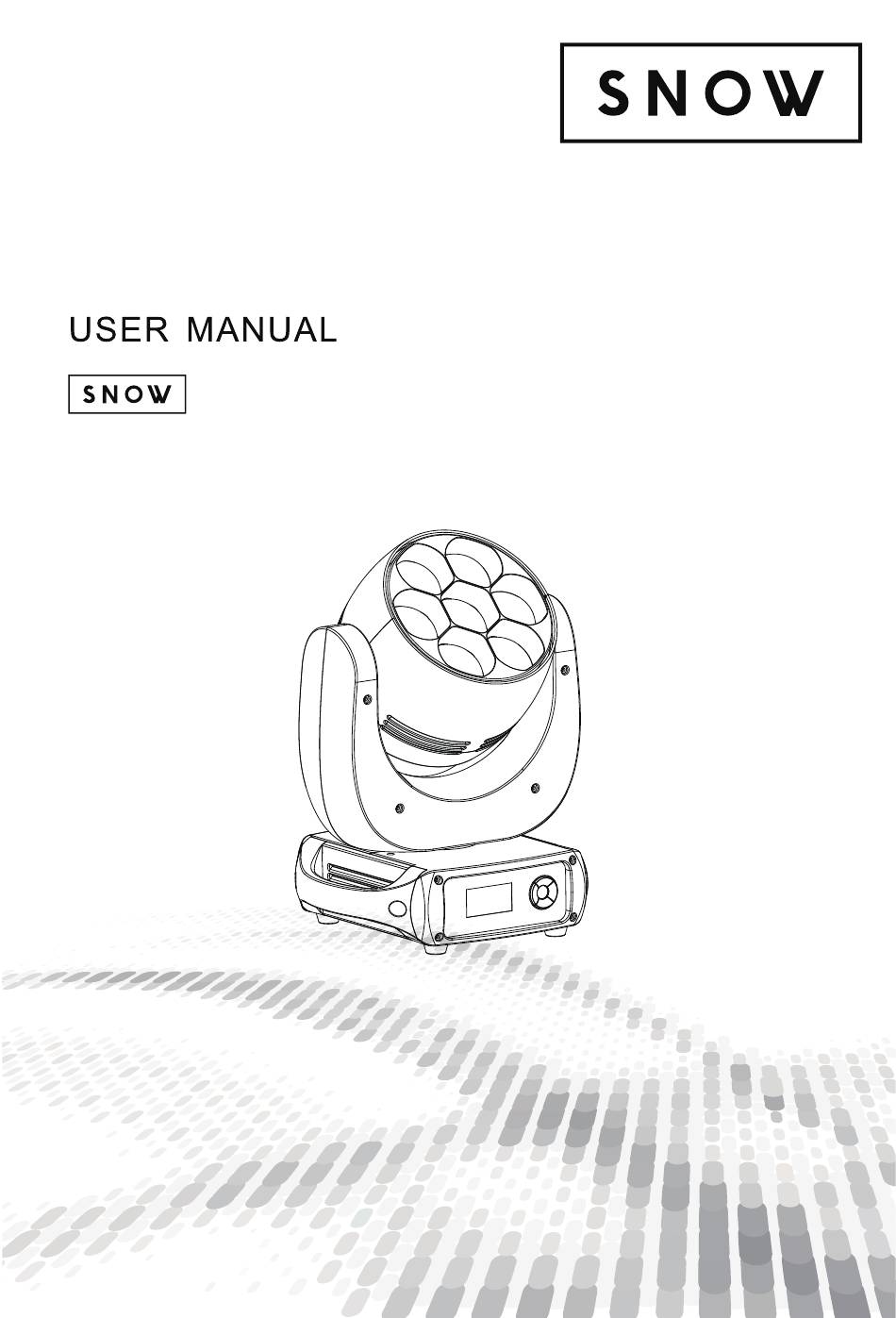

  • Page 1 Snow Frost Q7 Wash Snow Frost Q7 Wash...

  • Page 2: Product Specifications

    1 PRODUCT SPECIFICATIONS 1.1 PRODUCT SPECIFICATIONS Electrical Voltage:100V-240V~，50/60Hz ◆ Max Power:300W ◆ Size:302x251x375mm ◆ Weight:9.3kg ◆ PRODUCT FEATURES...

  • Page 3: Safety Warning

    1.3 SAFETY WARNING IMPORTANT： ●This product must be installed by a qualified professional. ●All maintenance must be carried out by a qualified electrician. ●A minimum distance of 0.5m must be maintained between the equipment and a combustible surface. ●The product must always be operated in a well ventilated area. ●DO NOT stare directly into the LED light source.

  • Page 4: Fuse Replacement

    FUSE REPLACEMENT Remove the safety cap by a screwdriver. ● ● F etch the old fuse from safety cap. ● I nstall a new fuse. ● I nstall the safety cap. FUSE SAFTY CAP POWER CONNECTIONS ● 220~240V: 6 units may be connected in series ●...
  • Page 5 MENU MAP MENU ADDRESS 001-512 PERSON HSIC PERSON1 PERSON2 PIXEL PERFORM FANS SLOW NORMAL FAST AUTO PAN/TILT NORMAL PAN INVERT INVERT TITL INVERT NORMAL INVERT PT SPEED FAST SLOW PT RANGE P.START 0-255 P.END 0-255 T.START 0-255 T.END 0-255 BLACKOUT DIMMER DIM4 DIM3...
  • Page 6 RECOVERY ***** WDMXHIDE SENSORHIDE XY OFFSET NETWORK Net SWITCH IP MODE DEFAUL IP CUSTOM IP XX.XX.XX.XX CUSTOM IP EDIT UNIVERS WDMX WDMX POWER WDMX RESET 0-255 EDIT STEP(01-50) TITL 0-255 0-255 GREEN 0-255 BLUE 0-255 WHTIE 0-255 DIMMER 0-255 STROBE 0-25 ZOOM 0-255...

  • Page 7: Dmx512 Settings

    DMX512 SETTINGS MENU ADDRESS 001-512 ● Enter the【DMX】mode to set the DMX ADDRESS. PERSONALITY MENU PERSON HSIC PERSON1 PERSON2 PIXEL HSIC , ● Enter the【PERSON】mode to select DMX mode:【 】 PERSON1 , PERSON2 , CMY , 【 】 【 】 【 】...
  • Page 8 DISPLAY LOCK UPLOAD LOAD PARA LOAD EDIT SETTING SETTINGS LOCK SERVECE LOCK Recovery ***** WDMXHIDE SENSORHIDE XY OFFSET NETWORK Net SWITCH DEFAUL IP IP MODE CUSTOM IP XX.XX.XX.XX CUSTOM IP EDIT UNIVERS WDMX WDMX POWER WDMX RESET ● 【FANS】menu, select【Slow/Norm/Fast/Auto】as required fan speed. ●...
  • Page 9 ● 【DMXERROR】menu, select 【SAVE】to maintain last command in case of DMX error or 【BLACK】for blackout ● 【DMXRESET】menu, select 【DMX】to allow remote reset using DMX controller or 【DISPLAY】for reset only available at on-fixture display ● 【DISPLAY ON】menu, select 【LONG/SHORT/ DISPLAY LOCK 】for length of time for display backlight ●【UPLOAD】upload data setting, choose 【LOAD PARA】to upload data, choose...

  • Page 10: Manual Menu

    ● Enter the【 EDIT 】mode to edit the custom programs by adjusting the value of【PAN】 ,【TILT】 ,【RED】,【GREEN】,【BLUE】, 【WHITE】,【DIMMER】,【STROBE】,【ZOOM】,【 TIME】 【 USE】 Enter and select to run the steps user need. ● 【YES】 Note: if user want to circulate the created steps, please set the last step s ‘...
  • Page 11 3.10 SERVICE MENU SERVICE 2700K 0-255 DIMMER 3200K ±99 X FINE 4200K ±99 Y FINE 5600K 6500K 8000K ±99 CALIB.P/T TILT ±99 Press ENTER to enter the CCT color temperature adjustment,then press ● 【 】 【 】 DOWN/UPkey to select the value of color temperature under the full power 2700K 3200K , 4200K 5600K , 6500K , 8000K ,you can press...

  • Page 12: Using A Dmx512 Controller

    4 USING A DMX512 CONTROLLER CHANNEL ASSIGNMENT ● Note: This product have four DMX512 channel configuration: 【HSIC】,【PERSON1】,【PERSON2】,【CMY】,【PIXEL】. CHANNEL VALUE FUNCTION PAN FINE TITL TITL FINE PT SPEED INTENSIYT HUE FINE SATURATION NO FUNCTION 2700K 3200K 4200K 5600K 6500K 8000K STROBE NO FUNCTION STROBE FROM （SLOD TO FAST ，0-25Hz）...
  • Page 13 CHANNEL VALUE FUNCTION CONTROL NO FUNCTION PAN/TILT BLACK ACTIVATED PAN/TILT BLACK DEACTIVATED FAN SLOW FAN NORMAL FAN FAST FAN AUTO AUTO1 AUTO2 CUSTOM TEST RESET NO FUNCTION DIM0 DIM1 DIM2 DIM3 DIM4 NO FUNCTION...
  • Page 14 CHANNEL VALUE FUNCTION TITL GREEN BLUE WHITE DIMMER MARCOS NO FUNCTION RED 100% / GREEN UP / BLUE 0% RED DOWN / GREEN 100% / BLUE 0% RED 0% / GREEN 100% / BLUE UP RED 0% / GREEN DOWN / BLUE 100% RED UP / GREEN 0% / BLUE 100% RED 100% /GREEN 0%/BLUE DOWN RED 100%/GREEN UP/BLUE UP...
  • Page 15 CHANNEL VALUE FUNCTION 1234 1567 234567 ALL LED AT FULL OUTPUT 1→2→3→4→5→6→7 clockwise 7→6→5→4→3→2→1 anticlockwise 2,3→4,5→6, 7 1,2,3→1, 4,5→1, 6,7 1→2,3, 4,5, 6, 7 2,3,4,5,6,7→1 RED-2700K ORANGE-2700K YELLOW-2700K GREEN-2700K CYAN-2700K BLUE-2700K MAGENTA-2700K RED-2700K RED-5600K ORANGE-5600K YELLOW-5600K GREEN-5600K CYAN-5600K BLUE-5600K MAGENTA-5600K RED-5600K...
  • Page 16 CHANNEL VALUE FUNCTION AUTO SPEED ( SLOW TO FAST) STROBE NO FUNCTION STROBE FROM （SLOD TO FAST ，0-25Hz） NO FUNCTION LIGHTNING STROBE NO FUNCTION RANDOM SROBE ZOOM CONTROL NO FUNCTION PAN/TILT BLACK ACTIVATED PAN/TILT BLACK DEACTIVATED FAN SLOW FAN NORMAL FAN FAST FAN AUTO AUTO1...
  • Page 17 CHANNEL VALUE FUNCTION PAN FINE TITL TITL FINE PT SPEED RED FINE GREEN GREEN FINE BLUE BLUE FINE WHTIE WHTIE FINE DIMMER DIMMER FINE MARCOS NO FUNCTION RED 100% / GREEN UP / BLUE 0% RED DOWN / GREEN 100% / BLUE 0% RED 0% / GREEN 100% / BLUE UP RED 0% / GREEN DOWN / BLUE 100% RED UP / GREEN 0% / BLUE 100%...
  • Page 18 1234 1567 234567 ALL LED AT FULL OUTPUT 1→2→3→4→5→6→7 7→6→5→4→3→2→1 2,3→4,5→6,7 1,2,3→1,4,5→1,6,7 1→2,3,4,5, 6,7 2,3,4,5,6,7→1 RED-2700K ORANGE-2700K YELLOW-2700K GREEN-2700K CYAN-2700K BLUE-2700K MAGENTA-2700K RED-2700K RED-5600K ORANGE-5600K YELLOW-5600K GREEN-5600K CYAN-5600K BLUE-5600K MAGENTA-5600K RED-5600K...
  • Page 19 CHANNEL VALUE FUNCTION AUTO SPEED ( SLOW TO FAST) STROBE NO FUNCTION STROBE FROM （SLOD TO FAST ，0-25Hz） NO FUNCTION LIGHTNING STROBE NO FUNCTION RANDOM SROBE ZOOM CONTROL NO FUNCTION PAN/TILT BLACK ACTIVATED PAN/TILT BLACK DEACTIVATED FAN SLOW FAN NORMAL FAN FAST FAN AUTO AUTO1...
  • Page 20 CHANNEL VALUE FUNCTION PAN FINE TITL TITL FINE PT SPEED CYAN MAGENT YELLOW DIMMER MARCOS NO FUNCTION CYAN 100% / MAGENTA UP / YELLOW 0% CYAN DOWN / MAGENTA 100% / YELLOW 0% CYAN 0% / MAGENTA 100% / YELLOW UP CYAN 0% / MAGENTA DOWN / YELLOW 100% CYAN UP / MAGENTA 0% / YELLOW 100% CYAN 100% /MAGENTA 0%/YELLOW DOWN...
  • Page 21 CHANNEL VALUE FUNCTION 1234 1567 234567 ALL LED AT FULL OUTPUT 1→2→3→4→5→6→7 7→6→5→4→3→2→1 2,3→4, 5→6,7 1,2,3→1, 4, 5→1, 6, 7 1→2, 3, 4, 5,6, 7 2,3,4,5,6,7→1 RED-2700K ORANGE-2700K YELLOW-2700K GREEN-2700K CYAN-2700K BLUE-2700K MAGENTA-2700K RED-2700K RED-5600K ORANGE-5600K YELLOW-5600K GREEN-5600K CYAN-5600K BLUE-5600K MAGENTA-5600K RED-5600K...
  • Page 22 CHANNEL VALUE FUNCTION AUTO SPEED ( SLOW TO FAST) STROBE NO FUNCTION STROBE FROM （SLOD TO FAST ，0-25Hz） NO FUNCTION LIGHTNING STROBE NO FUNCTION RANDOM SROBE ZOOM CONTROL NO FUNCTION PAN/TILT BLACK ACTIVATED PAN/TILT BLACK DEACTIVATED FAN SLOW FAN NORMAL FAN FAST FAN AUTO AUTO1...
  • Page 23 CHANNEL VALUE FUNCTION PAN FINE TILT TILT FINE PT SPEED DIMMER STROBE NO FUNCTION STROBE FROM （SLOD TO FAST ，0-25Hz） NO FUNCTION LIGHTNING STROBE NO FUNCTION RANDOM SROBE ZOOM CONTROL NO FUNCTION PAN/TILT BLACK ACTIVATED PAN/TILT BLACK DEACTIVATED FAN SLOW FAN NORMAL FAN FAST FAN AUTO...
  • Page 24 CHANNEL VALUE FUNCTION RED 1 GREEN1 BLUE1 WHITE1 RED2 GREEN2 BLUE2 WHITE 2 RED3 GREEN3 BLUE3 WHITE3 RED4 GREEN4 BLUE4 WHITE4 RED 5 GREEN5 BLUE5 WHITE 5 RED 6 GREEN6 BLUE6 WHITE 6 RED 7 GREEN7 BLUE7 WHITE7...
