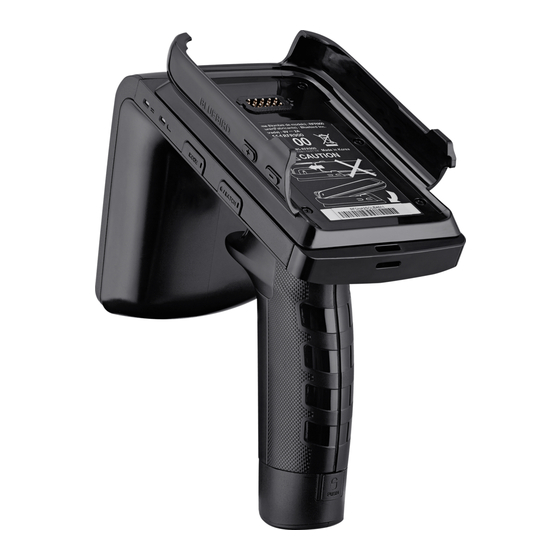

Bluebird RFR900 User Manual
  1. Manuals
  2. Brands
  3. Bluebird Manuals
  4. Other
  5. RFR900
  6. User manual

Bluebird RFR900 User Manual

Hide thumbs Also See for RFR900:
Table of Contents

Advertisement

Quick Links

RFR900/
RFR900 with
Barcode Scanner
USER
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RFR900 and is the answer not in the manual?

Questions and answers

Related Manuals for Bluebird RFR900

Summary of Contents for Bluebird RFR900

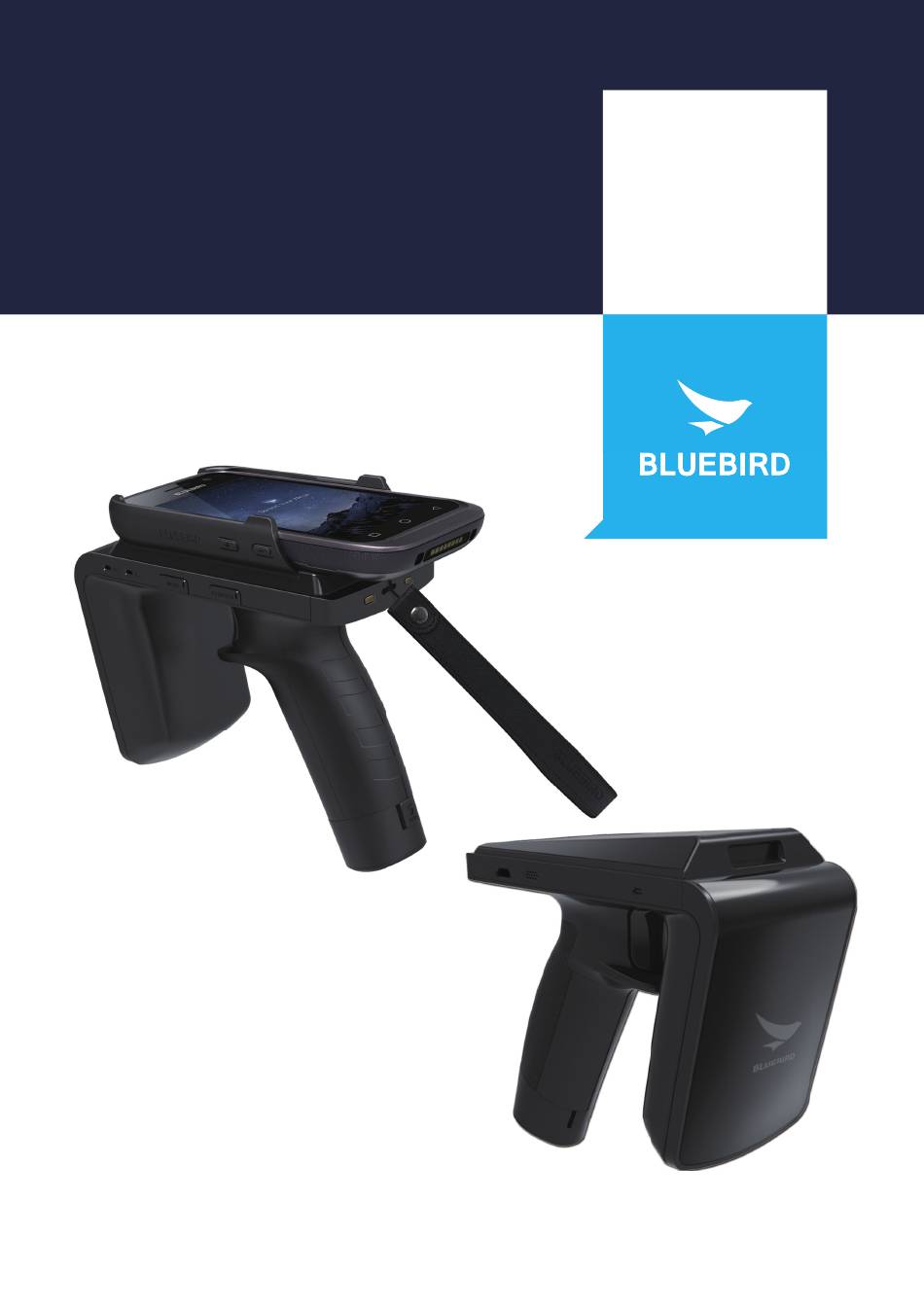

  • Page 1 RFR900/ RFR900 with USER Barcode Scanner Manual...
  • Page 2 BLUEBIRD is an emerging global brand, striving to lead the market in performance and mobility. Their products represent reliability, innovation, and innovative technology. Bluebird is a registered trademark from the global brand of Bluebird Inc. and is copyright protected. Bluebird and stylized Bluebird Logo are registered trademarks and symbols of Bluebird Inc.

  • Page 3: Table Of Contents

    5 Using the Device 5.1 Reading Tags ............................. 17 5.2 Scanning Barcodes using the RFR900 ....................17 5.3 Scanning Barcodes using the RFR900 with Barcode Scanner ............18 5.4 Using Batch mode ..........................20 Appendix A Device Specification Appendix B Accessories...

  • Page 4: About This Manual

    1 About This Manual The RFR900/RFR900 with Barcode Scanner provides high quality feature for Radio Frequency Identification (RFID) and barcode scanning. This user manual is designed to help users effectively operate the device ® paired with a Bluetooth wireless technology enabled host device (such as a mobile computer and/or smartphone).

  • Page 5: Safety Information

    2 Safety Information 2.1 Symbols This manual uses the following symbols to indicate hazards and additional information. Symbol Name Description Warning Indicates situations that could cause injury to yourself or others. Indicates situations that could cause damage to your device or other Caution equipment.

  • Page 6: Environment

    2 Safety Information 2.3 Environment Do not use the device while driving or operating heavy machinery. Doing so may result in death or serious injury. Do not use the device in locations with combustible goods. Doing so may result in an explosion. Do not use the device in dusty or hot locations.

  • Page 7: Overview

    3 Overview 3.1 Package Contents RFR900 The package includes: RFR900 device Battery Wrist strap...
  • Page 8 3 Overview RFR900 with Barcode Scanner The package includes: RFR900 device (with Barcode Scanner) Battery Wrist strap The illustrations may differ from your actual items. To purchase additional accessories, contact your sales representative. You can download the User Manual from www.mypidion.com. The paper version may be available in...

  • Page 9: Your Device

    3 Overview 3.2 Your Device 3.2.1 Side View (Left) RFR900 RFR900 with Barcode Scanner No. Name Description Indicates the status of code reading and transmission. The transmit and read Transmit/read LED LED blinks green when data is being successfully transferred to the host device, or blinks red if any error occurs.

  • Page 10: Side View (Right)

    3 Overview 3.2.2 Side View (Right) RFR900 RFR900 with Barcode Scanner No. Name Description Micro USB port Allows a micro USB cable to connect to the device and charge it. Speaker Emits sounds. RFID antenna Receives RFID data. Trigger Scans bar codes or reads tags.

  • Page 11: Leds

    Reading and transmission failed beep Blinks once every second Green Barcode mode is active RFR900: Off RFR900: - RFID/ barcode RFR900 with Barcode RFR900 with Barcode RFID mode is active switch Scanner: Scanner: Green Emits a ascending Blinks once every second...

  • Page 12: Getting Started

    4 Getting Started Follow the steps below to start using your RFR900/RFR900 with Barcode Scanner with a mobile device. Charge the battery. (see page 9.) Turn on the device. (see page 12.) Connect to a mobile device directly or via Bluetooth. (see page 15.) Install an essential app (For details, see the corresponding app for Windows or Android.)

  • Page 13: Removing The Battery

    Press the battery release buttons on the lower part of the handle and pull the battery out. RFR900 RFR900 with Barcode Scanner Before removing the battery, turn off the power. Failure to do so may cause damage to the device.
  • Page 14 Plug the power adapter into a power outlet. RFR900 RFR900 with Barcode Scanner When the battery level is extremely low, the device may not turn on. Charge the device and try to turn it on again. You can use the device while charging, but it may take longer to fully charge the device.

  • Page 15: Turning The Device On And Off

    The Power LED will be blue. RFR900 RFR900 with Barcode Scanner To turn off the device, press and hold the Power button for a few seconds. To enter Sleep mode, press the Power button. If you do not use the device for 3 or more minutes, the device will enter Sleep mode automatically.

  • Page 16: Resetting The Device

    If your device is not working properly or freezes due to unknown errors, you can manually restart the device. Press the battery release buttons on the lower part of the handle and pull the battery out. RFR900 RFR900 with Barcode Scanner Reinsert the battery into the handle. RFR900 RFR900 with Barcode Scanner Press the Power button to turn on the device.

  • Page 17: Updating The Firmware

    First, check that your mobile device is compatible with the RFR900. Do not slide the mobile device into the cradle. Insert the upper part of the mobile device into the RFR900 with the screen facing up. RFR900 Press the mobile device into the mount until you hear a click.

  • Page 18: Connecting Via Bluetooth

    On the mobile device, tap Settings > Bluetooth. Turn on the Bluetooth feature. On your RFR900, press and hold the Mode button for approximately 3 seconds to enter Bluetooth pairing mode. Do not forcefully press and hold the Mode button. This can damage your device.
  • Page 19 On the mobile device, tap Settings > Bluetooth. Turn on the Bluetooth feature. On your RFR900, press and hold the Mode button for approximately 3 seconds to enter Bluetooth pairing mode. Do not forcefully press and hold the Mode button. This can damage your device.

  • Page 20: Using The Device

    5 Using the Device 5.1 Reading Tags When you turn on RFR900, it is in RFID mode by default. Press the RFID/Barcode switch button. The RFID/Barcode LED is off when RFID mode is active. On the connected device, launch the app and start the connection.

  • Page 21: Scanning Barcodes Using The Rfr900 With Barcode Scanner

    When the device is turned off then back on, the device switches to RFID mode automatically. 5.3 Scanning Barcodes using the RFR900 with Barcode Scanner To scan barcodes using the RFR900 with Barcode Scanner, you need to connect it to the EF400 device.
  • Page 22 On the main screen, tap BARCODE (SB) to start the barcode scan. Tap SET BARCODE MODE to convert from RFID to Barcode mode. The Barcode mode screen will appear. You can also press the Mode button on the left of the RFR900 with Barcode Scanner.

  • Page 23: Using Batch Mode

    To scan a barcode tag, tap SB BARCODE START. The scanned data will be displayed on the top of the screen. To scan barcodes using your RFR900 with Barcode Scanner, press the trigger. The device will emit a red laser.

  • Page 24: Appendix A Device Specification

    Appendix A Device Specification Physical Characteristics RFR900: 146.2(H) x 70 (W) x 148.7(L) mm Dimensions (H x W x L) RFR900 with Barcode Scanner: 146.2(H) x 70(W) x 134.8(L) mm RFR900: 328 g Weight RFR900 with Barcode Scanner: 310 g Standard battery Rechargeable Li-ion, 3.64 V, 3,050 mAh...

  • Page 25: Appendix B Accessories

    Appendix B Accessories Battery Standard battery: Rechargeable Li-ion, 3.64 V, 3,050 mAh Carrying Accessories Wrist strap If you want to purchase a handstrap, please ask a sales representative. Other Accessories USB cable User manual Quick guide...

  • Page 26: Appendix C Troubleshooting

    You can contact your local sales representative or you can send the device via a delivery service to Bluebird’s Korean headquarters. When sending the package, make sure you pay for the shipping fee in advance. When the repair is finished, Bluebird will cover the shipping cost.

  • Page 27: Appendix D Safety Regulatory

    Appendix D Safety Regulatory FCC compliance information This device complies with Part 15 of the FCC’s Rules. Operation is subject to the following two Conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesirable operation.
  • Page 28 Do not listen to sound at high volume for long periods. It may cause hearing damage. Also, only use compatible receiver, headphones, or earpieces with your device. Hereby, Bluebird Inc. declares that this RFR900/RFR900 with Barcode Scanner is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC.

  • Page 29: Appendix E Warranty And Support

    Bluebird will repair or replace the defective product according to its warranty policy. If the defective product within the range of warranty is not repairable or replaceable, Bluebird shall refund the purchasing price within a designated period from the date of receiving a notice of defect.
  • Page 30 We receive the products for our after-sales service through mail, delivery services and hand delivery only in principle. If you bought the product from a party other than Bluebird or an authorized Bluebird reseller, you need to register the product before using our after-sales service.
  • Page 31 Appendix E Warranty and Support Charged services In the following cases, it will be charged when requesting for after-sales service. – Service request due to inappropriate use of the device by the customer – Loss of PIN number – Use of programs that might affect the program (over-clock, forceful changes in the input of the system, personal developments) Faults caused by the customer.
  • Page 32 #1103, Gplus Kolon Digital Tower 11F, (GMT Time: +9 Hours) Digital-ro 26-gil 123, Guro-gu, Seoul, The center is closed on Saturdays, Republic of Korea(08390) Sundays, and Korean national holidays. Bluebird constantly strives to bring utmost satisfaction to all our customers.
