STEPCRAFT 420 Assembly Manual

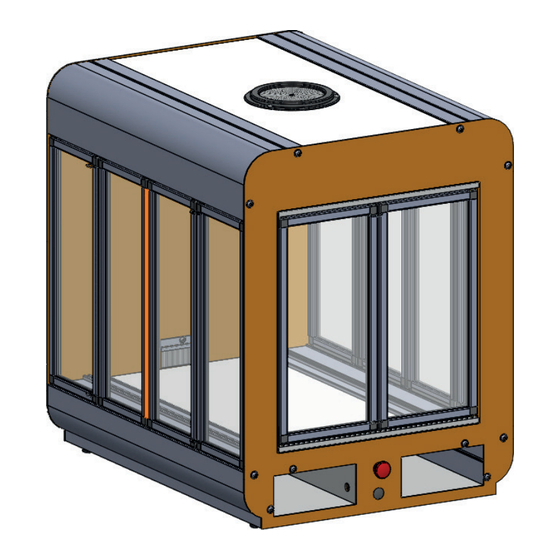

Enclosure for desktop cnc /3d systems
Hide thumbs Also See for 420:

Advertisement

Quick Links

Download this manual
EasyBuild-
Assembly
Manual
Enclosure for
Desktop CNC /3D Systems
STEPCRAFT 300/ 420
Original assembly manual
date of 01.07.2017

Advertisement

loading
Need help?

Need help?

Do you have a question about the 420 and is the answer not in the manual?

Questions and answers

Related Manuals for STEPCRAFT 420

Summary of Contents for STEPCRAFT 420

  • Page 1 EasyBuild- Assembly Manual Enclosure for Desktop CNC /3D Systems STEPCRAFT 300/ 420 Original assembly manual date of 01.07.2017...
  • Page 2 QR code STEPCRAFT has taken extreme care to ensure the correctness of the information contained in this manual. We accept no liability for damage in materials or injury to persons caused by assembling the enclosure. You are responsible for the safe operation of your Stepcraft Desktop CNC /3D System and its accessories.
  • Page 3 300: 0,8 m 420: 0,9 m 300: 350 x 112 mm 300: 311 x 127 mm 420: 420 x 142 mm 420: 381 x 172 mm black 300: 1,9 m 420: 2 m machine base plate...
  • Page 4 6/4 mm cable supply cable 300: 0,75 m 2,60 m 420: 0,88 m hole plug hole plug 15 pin Sub-D grounding cable wood screw 36 mm cable set incl. serrated 8 mm...
  • Page 5 - Crosstip screwdriver - Allen wrench 5,0 mm - Superglue Differences in the assembly of size 300 and 420: The illustrations in this assembly manual are exemplary and are based on the enclosure for size 420. The assembly group A as well as the work steps 1.1 and 1.2 do not apply with...

  • Page 6: Base Frame

    Base frame Assembly group A and work steps 1.1 and 1.2 only apply for size 420!  ! Please produce 2x ! ...
  • Page 7   ...
  • Page 8   ...
  • Page 9 Preparatory steps for all doors: Before attaching the plastic corners it is especially important that the leading edges of all pro les are deburred with the supplied needle le in order to avoid blocking due to plastic chips.
  • Page 10 300: 105 mm 420: 135 mm  For an easier assembly of the plastic corners, please turn the pro le and use the rubber mallet to x it to Please pay attention the corner! to the correct length! 105/ 135 mm !
  • Page 11 300: 341 mm 420: 411 mm  Please pay attention to the correct length! 341/ 411 mm ! 300: 343 mm 420: 413 mm  Please pay attention to the correct length! 343/ 413 mm !  ! Please produce 2x !
  • Page 12 300: 343 mm 420: 413 mm  Please pay attention to the correct length! 343/ 413 mm ! 300: 343 mm 420: 413 mm  Please pay attention to the correct length! 343/ 413 mm !  ! Please produce 2x !
  • Page 13 300: 343 mm 420: 413 mm  Please pay attention to the correct length! 343/ 413 mm ! 300: 343 mm 420: 413 mm  Please pay attention to the correct length! 343/ 413 mm !  ! Please produce 2x !
  • Page 14 300: 343 mm 420: 413 mm  Please pay attention to the correct length! 343/ 413 mm ! 300: 341 mm 420: 411 mm  Please pay attention to the correct length! 341/ 411 mm !  ! Please produce 2x !

  • Page 15: Side Doors

    Side doors (produce 2x) 300: 345 mm 420: 415 mm  300: 343 mm 420: 413 mm ...
  • Page 16   300: 345 mm 420: 415 mm ...
  • Page 17   300: 345 mm 420: 415 mm ...
  • Page 18  2.10  2.11 300: 345 mm 420: 415 mm ...
  • Page 19 2.12  2.13 2.14 ! Please produce 2x !

  • Page 20: Upper Frame

    Upper frame...
  • Page 21 ...
  • Page 22 Please repeat work steps 3.1 to 3.5 mirror-inverted for the right side of the enclosure!  Please pay attention to the orientation of the top plate! ...
  • Page 23 300: 120 mm 420: 165 mm  For an easier assembly of the plastic corners, please turn the pro le and use the rubber mallet to x it to Please pay attention the corner! to the correct length! 120/ 165 mm !
  • Page 24 300: 304 mm 420: 374 mm  Please pay attention to the correct length! 304/ 374 mm ! 300: 302 mm 420: 372 mm  Please pay attention to the correct length! 302/ 372 mm ! ...
  • Page 25 300: 304 mm 420: 374 mm  Please pay attention to the correct length! 304/ 374 mm ! 300: 304 mm 420: 374 mm  Please pay attention to the correct length! 304/ 374 mm ! ...

  • Page 26: Front Door

    Front door 300: 306 mm 300: 304 mm 420: 376 mm 420: 374 mm  ...
  • Page 27  300: 306 mm 420: 376 mm  ...
  • Page 28  ...
  • Page 29 Guide the cable end rstly th- rough the cable conduit and 300: 875 mm 420: 1115 mm afterwards carefully through the pro le.
  • Page 30 Enclosure front For size 300: Proceed with work step 5.1! For size 420: Proceed with work step 5.2! ...
  • Page 31 Please degrease the surface rst!  Please degrease surface rst!  300: 613 mm 420: not applicable Size 300: Please shorten the cable conduit and pull it carefully over the emergency switch cable. Size 300: Size 420:...

  • Page 32: Final Assembly

    Final assembly 300: 548 mm 420: 668 mm Guide the cable end rstly through the cable conduit and afterwards through the pro le.
  • Page 33 Size 300: interior view: Size 420:...
  • Page 34 Insertion tool/ Switch-Box Emergency stop  LED power (opt.) Desktop CNC /3D System LED switch (opt.) 12V power (opt.)
  • Page 35 With the socket head screws M5 x 30 mm the Stepcraft Desktop CNC /3D System, control devices or the Switch-Box and drawers can be xed in their nal position in the enclosure.
  • Page 36 STEPCRAFT GmbH & Co. KG An der Beile 2 58708 Menden Germany Phone: +49 (2373) 179 11 60 Fax: +49 (2373) 179 11 59 info@stepcraft-systems.com © STEPCRAFT 2017...

This manual is also suitable for:

300
