Summary of Contents for Hummingbird Lasers Fiery-Throated Series

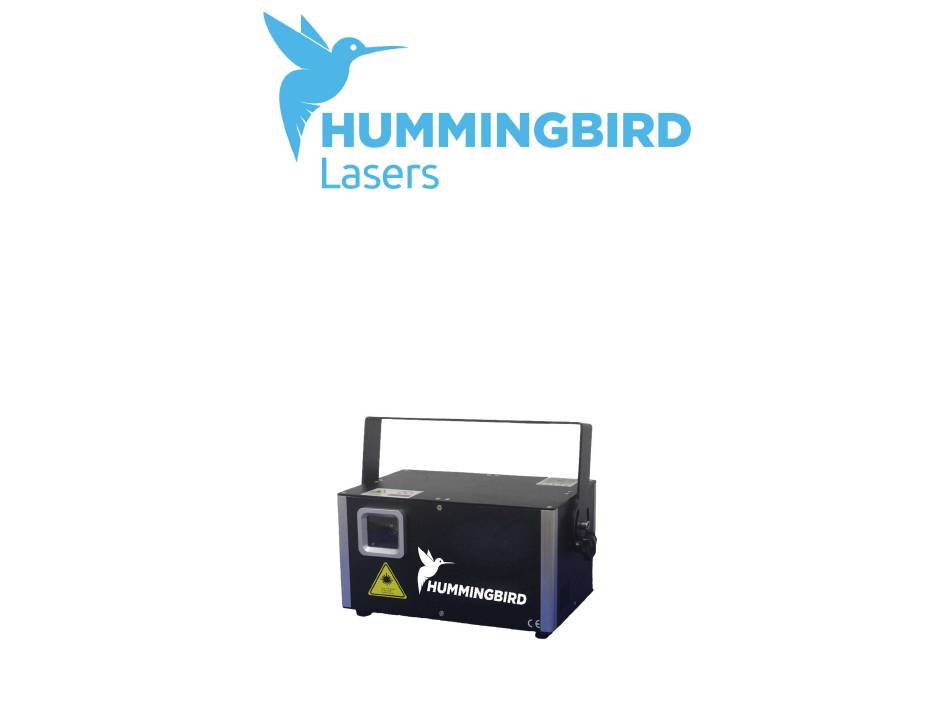

- Page 1 Manual – Fiery-Throated Series Please spend a few minutes to read this manual fully before operating this laser!
-
Page 2: Legal Notice
Due to continual product developments and technical improvements, Hummingbird Lasers reserves the right to make modifications to its products. This manual and its content have been made with due care but Hummingbird Lasers cannot however, take any responsibility for any errors, omissions or any resulting damages forthwith. - Page 3 Manual: Fiery-Throated Series 1. Product and package contents 2. Preliminary warning notices 3. Initial operations, safety instructions 4. Working on the device 5. Service notes 6. Warnings and other notices on the device 7. Device connections 8. Operation 9. DMX Settings 10.
-
Page 4: Preliminary Warning Notices
Manual: Fiery-Throated Series 1. Product and package contents Please check if all listed parts are included and undamaged. Included in delivery: 1 x laser projector 1 x power cable 2 x keys (for key switch) 1 x mounting bracket with screws... -
Page 5: Initial Operations, Safety Instructions
Manual: Fiery-Throated Series 3. Initial operations, safety instructions 6. The power supply should be easily accessible. 1. Make sure to use correct voltage; see information 7. When installing the laser, mount it with on device & in this manual. a minimum distance of 15 cm from walls 2. - Page 6 Manual: Fiery-Throated Series 4. Working on the device 11. Never use dimmer, RC or other electronically 1. This product has no user serviceable parts inside and switched sockets. Whenever should only be maintained and serviced by a qualified possible, do not use the laser projector engineer.
- Page 7 Manual: Fiery-Throated Series 5. Service notes necessary install the projector at a place with different temperature. o Moisture and heat can reduce lifetime of the laser system dramatically and expires o Keep the device dry. Protect it from moisture, rain and damp.
- Page 8 7. Device connections Front side...
- Page 9 Manual: Fiery-Throated Series Rear side...
-
Page 10: Operation
Manual: Fiery-Throated Series 8. Operation 1. Connect the power cable to Power Connection. (AC: 90-220V) 2. Make sure the Key Switch is turned to the ‘‘on’’ position by using the key provided. 3. Press the Power Switch ‘‘on/off’’ switch on. The Power Switch shines red now. - Page 11 Manual: Fiery-Throated Series Function Description of Main Display Screen Mode: File 45 K Aurora1.ild Join Playist 1/20 Picture 2 1. Present Play Mode 2. Opening Folder（A:\ shows that it under the SD card root directory） 3. Icons of The folders’ types...
- Page 12 Manual: Fiery-Throated Series 1. Seven combined play modes of this machine: -The mode of SD card file browsing -The mode of SD card play list 45 K Mode: File -The mode of Built-in effect Mode Select -The mode of DMX control...
- Page 13 Manual: Fiery-Throated Series Mode: File 45 K 1.At the main screen of “ SD card browsing mode “ and “ SD card play list mode” , press “ up” and “ down” to choose the file. ILD\ I L D Anim1.ild...
- Page 14 Manual: Fiery-Throated Series Mode: File 5.Play and Stop ILD\ This function only under the play list mode will be effective. After 默 认 列 表 .ist choosing one file of the playing list, press “ enter “ ,it will open.
- Page 15 Manual: Fiery-Throated Series This Machine has some effects for user’ s option (Default is two), 45 K Mode: File operation as below: Line 1.At the main Screen which Under Auto mode, Press “ enter” 2.Press “ down” , choose “ effect select”...
- Page 16 Manual: Fiery-Throated Series Setting the Rotating N o t e : m u s t u n d e r h a r d w a r e C o n f i g u r a t i o n R o t a t i n g i s t h e r o t a t i n g o f s t e p p i n g m o t o r ( t h e m a c h i n e h a s r o t a t i n g g r a t i n g s w i l l b e e f f e c t i v e ) , a t t h e m a i n s c r e e n , p r e s s “...
-
Page 17: Factory Settings
Manual: Fiery-Throated Series Factory Settings Mode:DMX N o t e : T h i s f u n c t i o n i s j u s t f o r t h e l a s e r p r o d u c e r Anim1.ild... - Page 18 Manual: Fiery-Throated Series 9. DMX Settings Function *Control Mode Function Selection Switch 1-40 41-80 81-100 121-160 161-200 101-120 201-240 241-255 Value Show .ild Show .ild Show .ist Preset Preset Effects+ Close Show .ist (SD)+Voice DMX Programming DMX Programming+ Voice (SD)
- Page 19 Manual: Fiery-Throated Series...
- Page 20 Manual: Fiery-Throated Series 11. How to make ILD files by I-show and save it in SD card I .Items needed 1. A desktop or notebook Computer or with Microsoft System (Windows7,Vista,XP), but with I-show (V2.3) installed, no need control box.
- Page 21 Manual: Fiery-Throated Series 2. After select it, you will see this page. We make a Text “Welcome” For a Example. After Text it , please Click “OK” and “Save As”, Renamed it “D”.
- Page 22 Manual: Fiery-Throated Series 3. Close Ishow Software Please and You will find ddr.File “D” From Here (Where you install Ishow Software on Computer) 4. Open Ishow Software and press “Converter”...
- Page 23 Manual: Fiery-Throated Series 5. Will show the operating windows, Do as follows:...
-
Page 24: Analog Modulation
Manual: Fiery-Throated Series Now, the ild.files completed, Please find this ild.file and copy it into SD Card. Then, select it from LCD display. Please Attend: Need to Copy to “Ild.” And “ild2” From SD Card at same time. 12. Technical Data... - Page 25 Manual: Fiery-Throated Series Control Mode Auto, Sound Active, DMX512, ILDA, Master/Slave, SD Card Integrated Effects 200 Patterns (waves, tunnels, layers, lines, shapes, ect;) SD Card 449 Animations, and Effects Power Consumption 1,200mW to 1,500mW models -- - 50W / 2,000mW to 3,500mW models -- - 120W...
