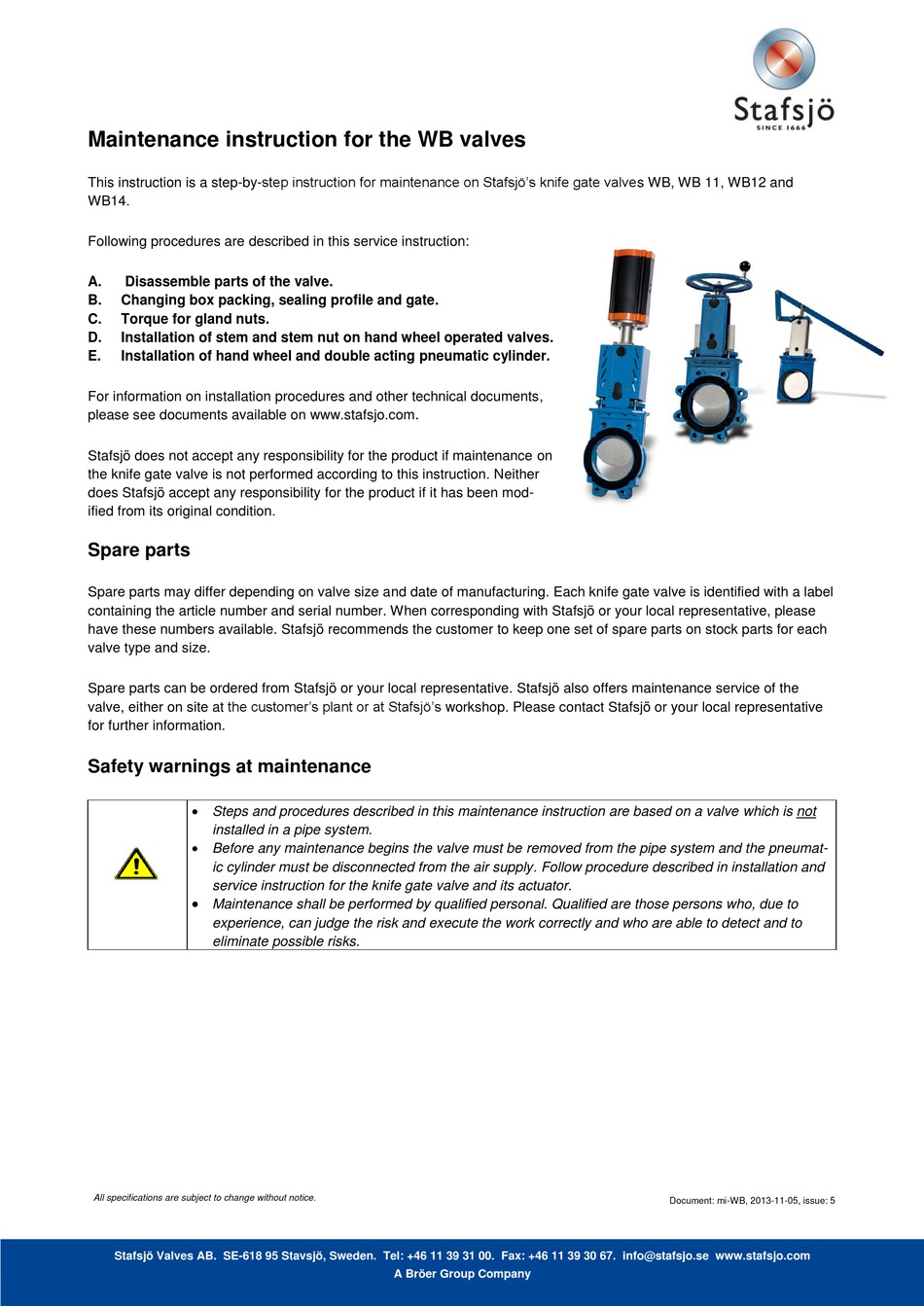

Maintenance instruction for the WB valves
This instruction is a step-by-step instruction for maintenance on Stafsjö's knife gate valves WB, WB 11, WB12 and
WB14.
Following procedures are described in this service instruction:
A.
Disassemble parts of the valve.
B.
Changing box packing, sealing profile and gate.
C.
Torque for gland nuts.
D.
Installation of stem and stem nut on hand wheel operated valves.
E.
Installation of hand wheel and double acting pneumatic cylinder.
For information on installation procedures and other technical documents,
please see documents available on www.stafsjo.com
Stafsjö does not accept any responsibility for the product if maintenance on
the knife gate valve is not performed according to this instruction. Neither
does Stafsjö accept any responsibility for the product if it has been mod-
ified from its original condition.

Spare parts

Spare parts may differ depending on valve size and date of manufacturing. Each knife gate valve is identified with a label
containing the article number and serial number. When corresponding with Stafsjö or your local representative, please
have these numbers available. Stafsjö recommends the customer to keep one set of spare parts on stock parts for each
valve type and size.
Spare parts can be ordered from Stafsjö or your local representative. Stafsjö also offers maintenance service of the
valve, either on site at the customer's plant or at Stafsjö's workshop. Please contact Stafsjö or your local representative
for further information.

Safety warnings at maintenance

 Steps and procedures described in this maintenance instruction are based on a valve which is not
installed in a pipe system.
 Before any maintenance begins the valve must be removed from the pipe system and the pneumat-
ic cylinder must be disconnected from the air supply. Follow procedure described in installation and
service instruction for the knife gate valve and its actuator.
Maintenance shall be performed by qualified personal. Qualified are those persons who, due to
experience, can judge the risk and execute the work correctly and who are able to detect and to
eliminate possible risks.
All specifications are subject to change without notice.
Stafsjö Valves AB. SE-618 95 Stavsjö, Sweden. Tel: +46 11 39 31 00. Fax: +46 11 39 30 67. info@stafsjo.se www.stafsjo.com
.
A Bröer Group Company
Document: mi-WB, 2013-11-05, issue: 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WB Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Stafsjo WB Series

  • Page 1 All specifications are subject to change without notice. Document: mi-WB, 2013-11-05, issue: 5 Stafsjö Valves AB. SE-618 95 Stavsjö, Sweden. Tel: +46 11 39 31 00. Fax: +46 11 39 30 67. info@stafsjo.se www.stafsjo.com A Bröer Group Company...
  • Page 2 Maintenance instruction Figure 1: Main components Gate Gate Nut and washer Stud bolt Nut and washer Stud bolt Gland Gland Sealing profile Sealing profile Box packing Box packing Pin, short Pin, short Valve body Valve body Pin, long Pin, long Sealing profile Sealing profile Sealing profile...
  • Page 3 Maintenance instruction Figure 2: part list WB 11, WB14, WB 11k and WB 12 equipped with one piece molded sealing profile (U-shaped) EC pneumatic actuator AC pneumatic actuator WB equipped with sealing profile and separate pins Part Part Hand Wheel Pinn bolt Washer Washer...
  • Page 4 Maintenance instruction A. Disassemble parts of the valve To simplify the disassembling of the knife gate, place the valve upright in a screw vice. Large valves shall be placed on a horizontal work bench. See figure 1 and 2 for identification of the parts in the WB knife gate valve. 1.
  • Page 5 Maintenance instruction Sealing profile (13) Before assembling make sure you have: For WB equipped with sealing profile and separate pins Bump Short pin (13b) • Sealing profile (13) which consists of a rubber profile, one long pin (13a) and two short pins (13b). Put the long pin into the sealing and make sure it is centred.
  • Page 6 Maintenance instruction If the valve shall be equipped with a box bottom scraper, add these first in the box bottom and then add three layers of braids on each side of the gate (totally 6 pcs. of braids). To make sure the valve keeps tight during operation, make sure the braid ends reaches each stuffing box corner.
  • Page 7 Maintenance instruction Tighten the bolts (7g), nuts (7f) and washers (7e) on the yoke. Attach the hand wheel (1) and lock it with washer (1d) and nut (e) Pneumatic cylinder AC Mount the pneumatic cylinder on the beams (7) and attach it by slightly tighten the bolts (7g), nuts (7f) and washers (7e).
