Summary of Contents for DemoPad DM-CENTRO8

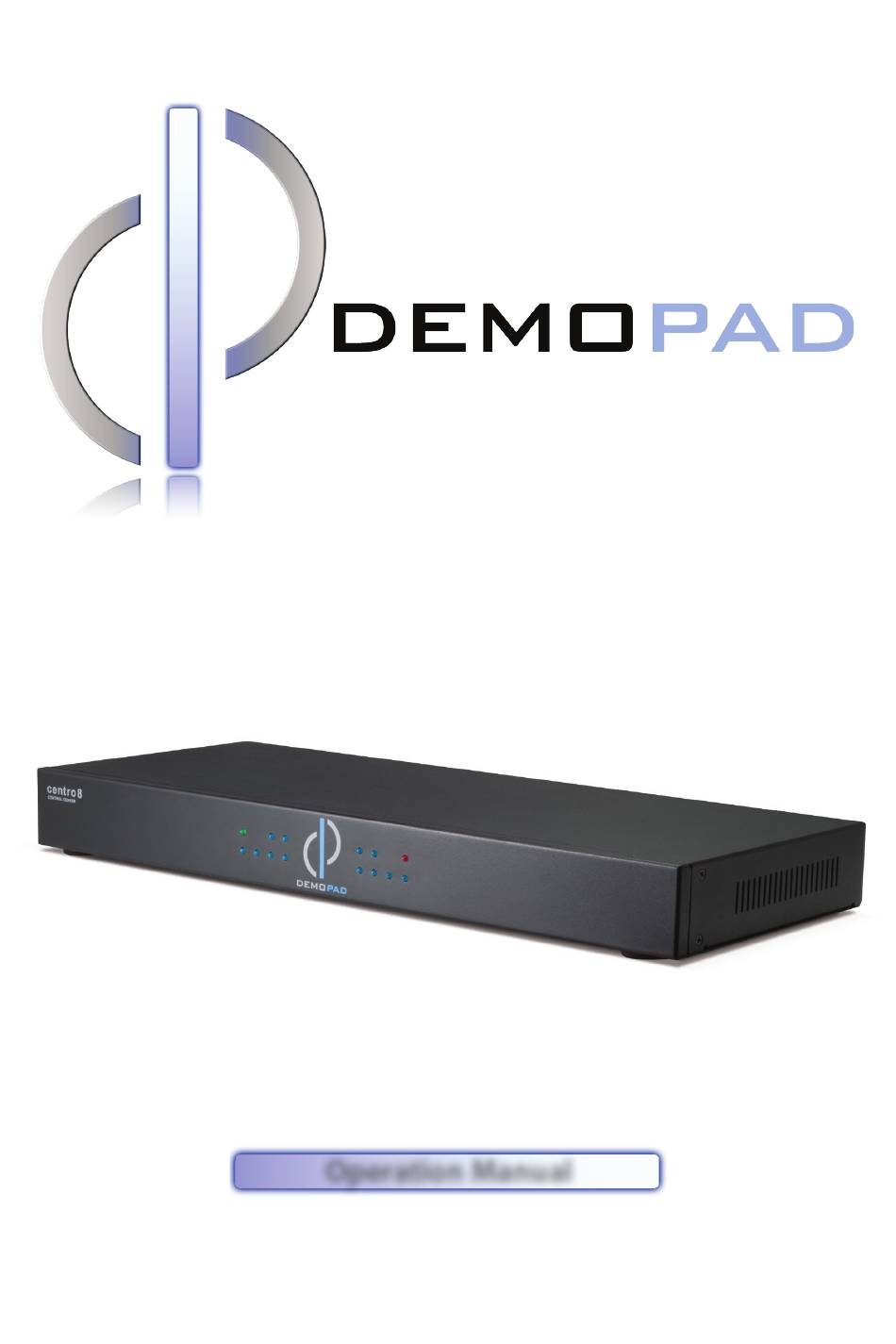

- Page 1 DM-CENTRO8 Demopad Centro 8 Controller Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. DemoPad Software Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. DemoPad Software Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Package Contents ........6 3. Features ..........7 4. Physical Connections ......8 4.1 Rear Panel ............. 8 4.2 Configuration and Setup ......8 5. Specifications .........9... -
Page 6: Introduction
Utilising advanced embedded software, and programmable using DemoPad Designer Software, the CENTRO 8 processor is the heart of your control system providing complete control over automated and manual control functions. DemoPad is the fastest and most cost effective solution... -
Page 7: Features
Have another input to your HDMI distribution system to show web pages or a photo frame slideshow, which can be timer-driven. Built-in Web Server Store the DemoPad project on the CENTRO 8 and allow communication of any device with a web browser Advanced Macros... -
Page 8: Physical Connections
Connect the Ethernet (3), HDMI (6) & Power (2) to the unit, and power the unit up using the power switch (1). When the unit has powered up, you should see the DemoPad logo on screen, along with the unit's DHCP assigned IP address. -
Page 9: Specifications
5. SPECIFICATIONS Power Supply : 12 V DC Weight (g) : 1963 Dimensions(mm): 430(W) x 180(D) x 50(H) Operating Temperature : 0 ˚C ~ 40 ˚C / 32 ˚F ~ 104 ˚F Storage Temperature: −20 ˚C ~ 60 ˚C / −4 ˚F ~ 140 ˚F Relative Humidity: 20 ~ 90% RH (non-condensing) Power Consumption:...
