Atlas DPA-AMIX Owner's Manual

4 input analog mixer accessory card for the dpa series amplifiers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

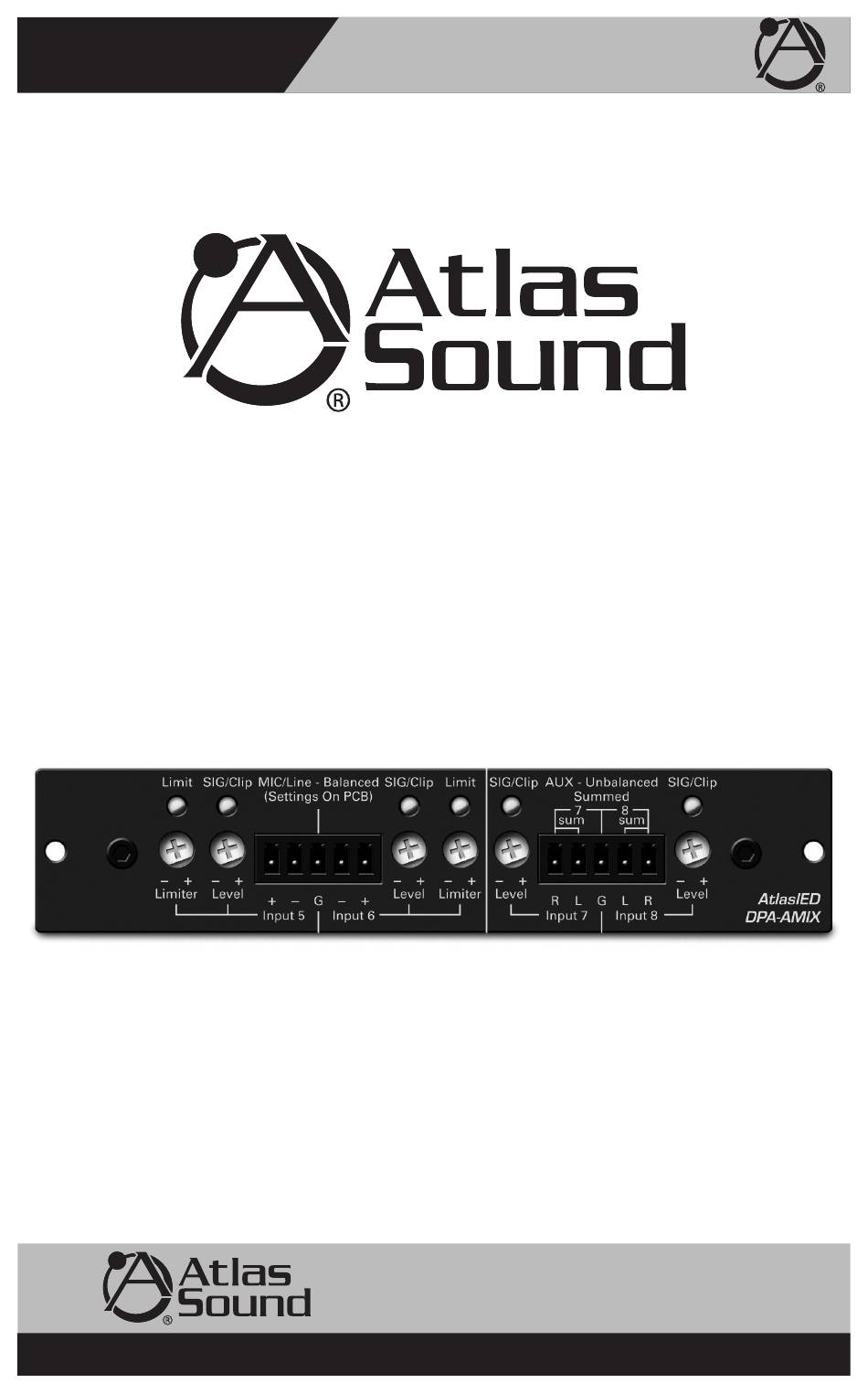

DPA-AMIX
Owner's Manual
4 Input Analog Mixer Accessory Card
DPA-AMIX
4 Input Analog Mixer Accessory Card
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
– 1 –
AtlasSound.com
Specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPA-AMIX and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlas DPA-AMIX

  • Page 1 DPA-AMIX Owner’s Manual 4 Input Analog Mixer Accessory Card DPA-AMIX 4 Input Analog Mixer Accessory Card 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasSound.com Specifications are subject to change without notice.

  • Page 2: Table Of Contents

    DPA-AMIX Owner’s Manual 4 Input Analog Mixer Accessory Card Table of Contents Important Safety Instructions ........................3 Introduction ..............................5 Key Features ..............................5 Applications ..............................6 Front Panel Description ..........................7 DIP Switch Settings .............................8 Accessory Card Installation ........................9 DPA Setup ..............................10 Specifications ..............................11...

  • Page 3: Important Safety Instructions

    DPA-AMIX Owner’s Manual 4 Input Analog Mixer Accessory Card The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 4 • Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and contact Atlas Sound. Do not to attempt to continue operation with the product as this may cause fire or electric shock: •...

  • Page 5: Introduction

    4 Input Analog Mixer Accessory Card Introduction The DPA-AMIX accessory card is designed to work in conjunction with DPA Series amplifiers that include a rear panel accessor card slot. The unit features 4 inputs, two mic/line inputs and two auxiliary line inputs. The mic/line inputs are user selectable and include Phantom power, 120Hz Hi Pass filter and a variable limiter on both inputs.

  • Page 6: Applications

    4 Input Analog Mixer Accessory Card Applications The DPA Series amplifiers DSP features combined with the DPA-AMIX converts the DPA amplifiers into 8 x 4 zone matrix mixer amplifier. The amplifier DSP function allows for signal routing along with priority muting via VOX sensing or contact closures making the DPA Series amplifier the go to solution for a variety of applications.

  • Page 7: Front Panel Description

    DPA-AMIX Owner’s Manual 4 Input Analog Mixer Accessory Card Front Panel Description 1. Input 5 & 6 Mic / Line Input - To select between microphone and balanced line input refer to the Input Switch setting section. For connecting an unbalanced signal to the line input, the (-) pin needs to be connected to the Ground (G) pin.

  • Page 8: Dip Switch Settings

    Left output (+) of the source to the (L) input terminal of Input 8 and the ground connection of the source output to the Input (G) terminal. Note: Input 7 (L) and Input 8 (R) terminals are not used, NO CONNECTION. 7. Panel Mount Holes - There are two holes for screws to secure the DPA-AMIX to the amplifier chassis. Only use M3 x 8MM screws. DIP Switch Settings Before installing the card into the amp determine how Inputs 5 and 6 will function. Configure the Dip...

  • Page 9: Accessory Card Installation

    4 Input Analog Mixer Accessory Card Accessory Card Installation Contact Atlas Sound for a list of accessory cards. Note: Accessory card installation must be done by a qualified technician. 1. Remove the DPA amplifier from the AC mains source. Note: In standby mode there are DC voltages present.

  • Page 10: Dpa Setup

    DPA-AMIX Owner’s Manual 4 Input Analog Mixer Accessory Card DPA Setup after DPA-AMIX Installation 1. Please read the DPA manual for access to the DPA Series amplifiers control GUI interface. After you have access to the GUI proceed to step #2. 2. In the Setup page go to the Amplifier Configuration Tab. On this page select the box “Enable Accessory Inputs” 3. Go to the I/O Router page and route Inputs 5-8 to an output.

  • Page 11: Specifications

    DPA-AMIX Owner’s Manual 4 Input Analog Mixer Accessory Card Specifications Type 4 Input Analog Mixer Card for the DPA Series Amplifiers Inputs 5 & 6 Type Balanced Mic or Line Selectable Connection Removable 3 Position Captive Screw 3.5mm Spacing Impedance 1.2KΩ...

  • Page 12: Warranty

    Musician Series stands and related accessories. Additionally, fuses and lamps carry no warranty. Atlas Sound will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions.
