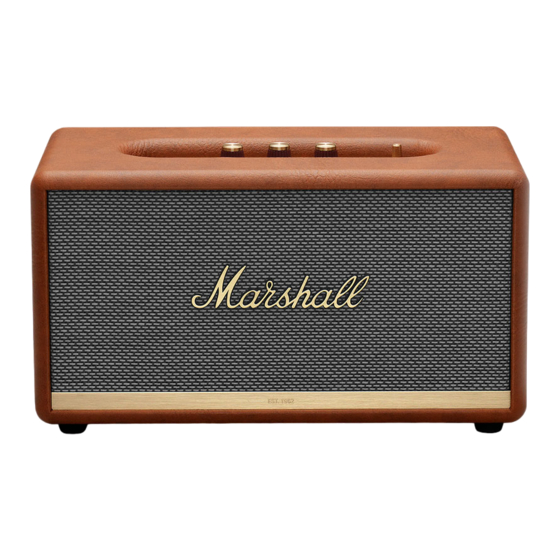

Marschall STANMORE II User Manual

With the google assistant built-in
Hide thumbs
Table of Contents

Advertisement

Quick Links

STANMORE II VOICE WITH THE GOOGLE ASSISTANT BUILT-IN

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STANMORE II and is the answer not in the manual?

Questions and answers

James Bleke
February 27, 2025

How to turn off intro music

0

Subscribe to Our Youtube Channel

Summary of Contents for Marschall STANMORE II

  • Page 1: User Manual

    STANMORE II VOICE WITH THE GOOGLE ASSISTANT BUILT-IN USER MANUAL...

  • Page 2: Legal & Trademark Notice

    LEGAL & TRADEMARK NOTICE • Design of device and packaging are intellectual properties of Zound Industries International AB and Marshall Amplification Plc. © All Rights Reserved. Zound Industries International AB is hereinafter referred to as “Zound Industries” or “manufacturer”. • MARSHALL, Marshall Amps, their respective logos, “Marshall”...

  • Page 3: Table Of Contents

    007. SETTING UP THE STANMORE II VOICE 008. 009. USING THE THE GOOGLE ASSISTANT BUILT-IN 010. SELECTING AUDIO SOURCE 011. USING STANMORE II VOICE WITH CHROMECAST BUILT-IN 012. CONNECTING VIA BLUETOOTH (PAIRING) ® 013. CONNECTING VIA AUX INPUT 014. CONNECTING VIA RCA INPUT 015.

  • Page 4: Box Contents

    BOX CONTENTS 001. MARSHALL STANMORE II VOICE WITH THE GOOGLE ASSISTANT BUILT-IN 002. QUICK START GUIDE 003. IMPORTANT SAFETY INSTRUCTIONS 004. MAINS LEAD 001. 002. 003. 004. 004.

  • Page 5: General Description

    GENERAL DESCRIPTION 001. AUX INPUT FOR 3.5 mm JACK 002. SOURCE INDICATORS 003. SOURCE BUTTON 004. VOLUME KNOB 005. BASS KNOB 006. TREBLE KNOB 007. MICROPHONES 008. PLAY/PAUSE BUTTON 009. MICROPHONE BUTTON 001. 003. 007. 005. 002. 004. 009. 006. 008.
  • Page 6 GENERAL DESCRIPTION CONTINUED 009. BASS PORT 010. BACKPLATE 011. USB SERVICE PORT 012. RCA INPUT (LEFT AND RIGHT) 013. MAINS INPUT 014. MAINS LEAD 012. 011. 009. 010. NOTE: DATE CODE AND SERIAL NUMBER STICKER LOCATED HERE. 014. 013. 006.

  • Page 7: Plugging In The Stanmore Ii Voice

    PLUGGING IN THE STANMORE II VOICE IMPORTANT: ALWAYS ENSURE THAT THE MAINS LEAD, MAINS PLUG AND SPEAKER ARE COMPATIBLE WITH YOUR MAINS SUPPLY AND WALL SOCKET. 001. CONNECT THE MAINS LEAD INTO THE MAINS INPUT ON THE SPEAKER. 002. CONNECT THE MAINS PLUG TO THE WALL SOCKET.

  • Page 8: Setting Up The Stanmore Ii Voice

    SETTING UP THE STANMORE II VOICE CONFIGURE THE SPEAKER FOR Wi-Fi WITH THE GOOGLE HOME APP. THE ® APP IS AVAILABLE FROM THE APP STORE AND GOOGLE PLAY. 001. DOWNLOAD THE GOOGLE HOME APP AND FOLLOW THE IN-APP INSTRUCTIONS TO SET UP YOUR SPEAKER.

  • Page 9: Using The The Google Assistant Built-In

    USING THE THE GOOGLE ASSISTANT BUILT-IN THE STANMORE II VOICE HAS THE GOOGLE ASSISTANT BUILT-IN. YOU CAN PLAY MUSIC, FIND ANSWERS ON GOOGLE SEARCH, MANAGE EVERYDAY TASKS, AND EASILY CONTROL SMART DEVICES AROUND YOUR HOUSE, SIMPLY BY USING YOUR VOICE.

  • Page 10: Selecting Audio Source

    SELECTING AUDIO SOURCE THERE ARE MANY WAYS TO CONNECT TO YOUR STANMORE II VOICE, EITHER WIRELESSLY OR BY CABLE. • - Wi-Fi STREAMING VIA CHROMECAST • - WIRELESS Bluetooth CONNECTION ® • AUX - 3.5 mm STEREO JACK • RCA - DOUBLE RCA (LEFT AND RIGHT) JACKS 001.

  • Page 11: Using Stanmore Ii Voice With Chromecast Built-In

    USING STANMORE II VOICE WITH Chromecast built-in Chromecast built-in IS A PLATFORM THAT LETS YOU STREAM YOUR FAVOURITE MUSIC FROM YOUR SMARTPHONE, TABLET OR COMPUTER RIGHT TO YOUR SPEAKER. IT IS AVAILABLE IN MOST MUSIC APPS ON THE MARKET. 001. CONNECT YOUR DEVICE TO THE SAME Wi-Fi NETWORK AS YOUR SPEAKER.

  • Page 12: Connecting Via Bluetooth

    THE Bluetooth INDICATOR ON THE SPEAKER STOPS BLINKING AND REMAINS LIT WHEN THE UNITS ARE CONNECTED. THE STANMORE II VOICE STORES UP TO EIGHT Bluetooth DEVICES AND TRIES TO CONNECT TO THE LAST CONNECTED DEVICE FIRST. FOR EXAMPLE, IF THE SPEAKER HAS BEEN CONNECTED TO THE DEVICES: –...

  • Page 13: Connecting Via Aux Input

    002. CONNECT THE OTHER END OF THE LEAD TO THE AUDIO OUTPUT ON YOUR AUDIO SOURCE. 003. SELECT AUX AS THE INPUT. PUSHING THE  SOURCE  BUTTON TOGGLES THE INPUT SOURCES. 001. 002. 003. NOTE: AUDIO LEADS ARE NOT INCLUDED IN THE STANMORE II VOICE. 013.

  • Page 14: Connecting Via Rca Input

    CONNECTING VIA RCA INPUT 001. CONNECT A LEAD WITH RCA JACKS TO THE INPUTS LABELLED  RCA  THE BACK OF THE SPEAKER. 002. CONNECT THE OTHER END OF THE LEAD TO THE OUTPUT ON YOUR AUDIO SOURCE. 003. SELECT RCA AS THE INPUT. PUSHING THE  SOURCE ...

  • Page 15: Adjusting The Volume/Bass/Treble

    ADJUSTING THE VOLUME/BASS/TREBLE THE STANMORE II VOICE INCLUDES THREE KNOBS FOR ADJUSTING THE AUDIO. 001. VOLUME KNOB 002. BASS KNOB 003. TREBLE KNOB 001. 002. 003. 001. 002. 003. 015.

  • Page 16: Play/Pause Control

    PLAY/PAUSE CONTROL THE STANMORE II VOICE HAS A PLAY/PAUSE BUTTON TO CONTROL THE MUSIC WHEN PLAYING VIA Wi-Fi OR Bluetooth. 001. SINGLE-CLICK TO EITHER PLAY OR PAUSE. 002. DOUBLE-CLICK TO SKIP FORWARD. 003. TRIPLE-CLICK TO SKIP BACK. 001. 002. 003.

  • Page 17: Muting/Unmuting The Microphone

    MUTING/UNMUTING THE MICROPHONE THE MICROPHONES IN THE STANMORE II VOICE CAN BE TEMPORARILY TURNED OFF. 001. PUSH THE MICROHONE BUTTON MUTE THE MICROPHONES. THE LED INDICATORS ON THE FRONT TURNS ORANGE TO INDICATE THAT THE MICROPHONE IS MUTED. 002. TO UNMUTE, PUSH THE MICROPHONE BUTTON AGAIN.

  • Page 18: Technical Information

    TECHNICAL INFORMATION ACOUSTIC SPECIFICATION • STEREO LOUDSPEAKER WITH BASS REFLEX SYSTEM • DIGITAL CLASS D AMPLIFIERS: 2 x 15 W + 1 x 50 W • TWEETERS: 2 x ¾" dome tweeters • WOOFER: 1 x 5¼" woofer • BASS AND TREBLE TONE CONTROLS •...

  • Page 19: Troubleshooting

    The speaker is not connected Connect the mains lead to the DOES NOT TURN to mains electricity supply. Stanmore II and a working wall socket. Pull and hold the power lever towards the front of the speaker until the indicators light up.
  • Page 20 There is a strong electric field Items such as microwave surrounding the Stanmore II. ovens, wireless network adapters, fluorescent lights and gas cookers use the same frequency range as the Bluetooth device.
  • Page 21 Too much bass/treble on the Lower the bass/treble on the speaker. speaker. ERRATIC Interference from another Move the Stanmore II to PERFORMANCE electronic device. another spot. Turn off or move the interfering electronic device. NOTES: A Wi-Fi DEVICE COULD CAUSE AUDIO-RELATED OR TECHNICAL FAULTS, DEPENDING ON USE, IN THE FOLLOWING CASES: •...
  • Page 22 WWW.MARSHALLHEADPHONES.COM 022.
