Summary of Contents for Swisson XSH

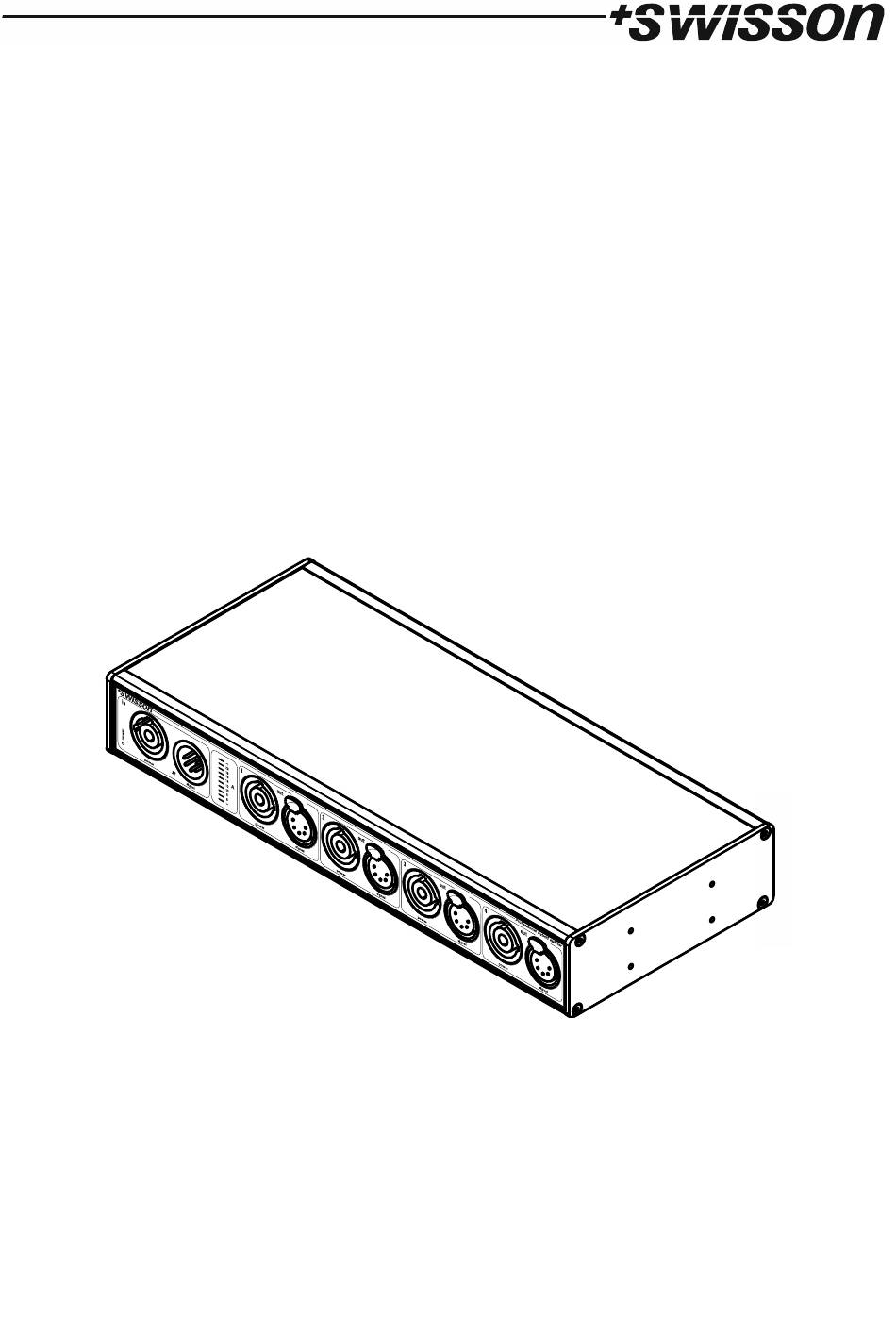

- Page 1 Hybrid Splitter / Booster User Manual...
- Page 2 UM-XSH-D0-LEN-V01-02.DOCX 28. Mär. 2019...
-
Page 3: Table Of Contents
Index Index ....................................3 Introduction ..................................4 Unpacking ..................................4 Safety Information ................................5 Device Overview ................................6 Current Measurement ..............................8 RDM Protocol (Remote Device Management) ......................... 8 19-inch Rack Mounting Option ............................9 Technical Data ................................. 10 Ordering Information ..............................11... -
Page 4: Introduction
The XSH-xxR works within DMX / RDM environments as well as in pure DMX environments. Therefore, the XSH-xxR is a good solution for those who expect to use RDM in the future. The XSH-xxD on the other hand only works with DMX, while it ignores any RDM data. -
Page 5: Safety Information
Rack mounting kit (2 brackets and 8 screws) with XSH-xRx versions only. Safety Information Consider the following notes absolutely when you set up, connect and use the XSH. This product is not for household use. Read this manual before operating the device, follow the safety precautions and observe all warnings in this manual. -
Page 6: Device Overview
Mains Connection on page 7 for more details. 1. Power input. 2. Power LED. The Power LED shows if the device powered and if power supply unit of the XSH is working. 3. DMX input. 4. Signal LED. A green LED shows if a signal is available at the input port. A red LED shows if received signal is faulty. - Page 7 (earthed) mains plug that is suitable for the local power outlets, following the power plug manufacturer’s instructions. Consult a qualified electrician, if you have any doubts about proper installation. A blue Neutrik powerCON NAC3FCA cable mount connector must be used to supply power at the XSH hybrid splitter power input socket.
-
Page 8: Current Measurement
Power out Power out The bar graph LEDs show the total amps drawn by and through the XSH. The lighting down arrow led shows that the load is less than six amps if all other LEDs are turned off. The lighting up arrow shows that the load exceeds 20A. This is an overload condition! Never run an installation in this condition. -
Page 9: 19-Inch Rack Mounting Option
Fasten the L-brackets using the included, thread-forming Torx 10 M3 x 8 screws as shown above. Note: XSH-xBx models are shipped without L-brackets and screws. XSH-xRx models are shipped with L-brackets and screws. The rack mounting kit (L-brackets and screws) can also be ordered separately. -
Page 10: Technical Data
Technical Data 155mm 44.4mm 302mm 133.5mm 133.5mm Depth ................... 133.5 mm (5.3 in) Width ................... 302 mm (11.9 in) Height ................... 44.4 mm (1.7 in) Weight ..................1.4 kg (3 lb) Ambient temperature ..............-30°C…55°C (-22°F…131°F) AC power ..................100 - 240 V nominal, 50/60 Hz Power supply unit ................ -
Page 11: Ordering Information
Ordering Information DMX512 Versions 10 13 10 XSH-3BD-1P4 Hybrid Splitter box, 3-pin XLR, DMX 10 13 11 XSH-5BD-1P4 Hybrid Splitter box, 5-pin XLR, DMX 10 13 20 XSH-3RD-1P4 Hybrid Splitter with rack mounting kit, 3-Pin XLR, DMX 10 13 21...
