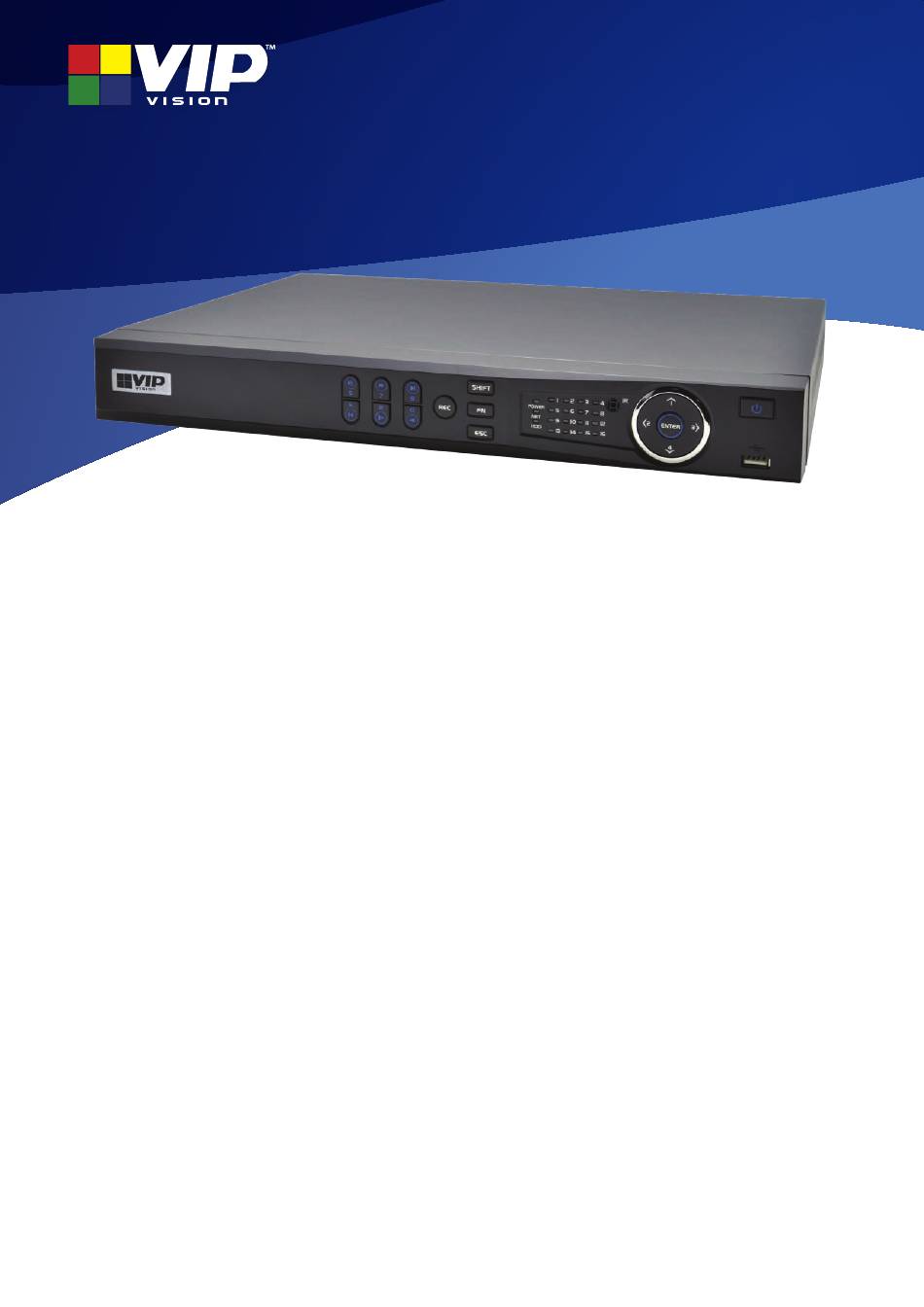

VIP Vision™ Network Video Recorder

Quick Start Guide

Thank you for purchasing a VIP Vision Network Video Recorder
This Quick Start Guide covers basic setup, installation and use of your surveillance system.
For the full user manual, instructional videos, tips on using your surveillance system &
warranty information, please visit:
www.vip-vision.com
Version: VIPNVR-Q119.1
