Summary of Contents for ASTEL LIGHTING LXU01

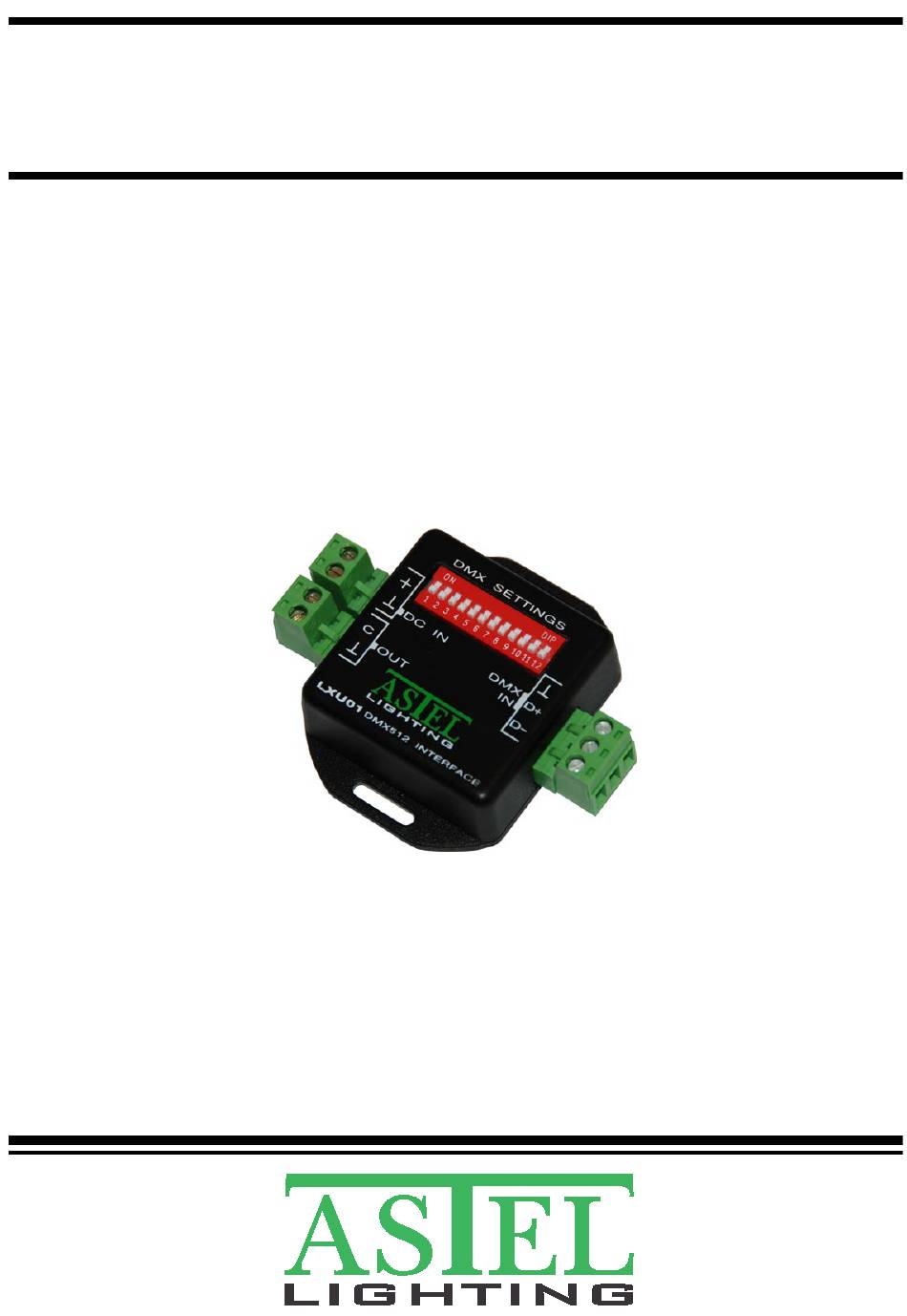

- Page 1 LXU01 DMX512 INTERFACE Operating Instructions...
-
Page 2: Table Of Contents
CONTENTS Preface ............................... 3 Features ............................. 3 Precautions ............................3 Controls and Connectors ........................4 DMX512 Interface LXU01 ......................4 Installation ............................5 Set-up ..............................6 Appearance ............................8 Technical Specifications ........................8 Warranty ............................. 9 Declaration of Conformity ......................... 10... -
Page 3: Preface
PREFACE PRECAUTIONS The LXU01 is DMX512 to ASTEL protocol • The DMX512 Interface LXU01 has to be converter with 1 output to control a groups of installed and used in accordance with the RGB multi-color lights of METEOR series with instructions of this manual only. -
Page 4: Controls And Connectors
CONTROLS AND CONNECTORS DMX512 Interface LXU01 (1) DC IN Terminal-block connector to connect 12-24Vdc power supply. (2) OUT Control output to connect the +Control (P) and GND Control (-) wires of multi-color RGB lights Meteor series or PWM dimmer LDU13. -
Page 5: Installation
INSTALLATION The DMX512 Interface LXU01 kit consists of the following components: • DMX512 Interface LXU01 • 3 x terminal-block connectors • Operating Instructions with Declaration of Conformity and Warranty conditions The LXU01 has to be installed on a suitable location. -
Page 6: Set-Up
SET-UP The DMX512 Interface LXU01 set-up is enabled by adjusting the DIP-switch. DIP-switch VALUE 1-2-3-4-5-6-7-8-9 DIP-switch VALUE OFF-OFF-OFF-OFF-OFF-OFF-OFF-OFF-OFF 1-2-3-4 ON -OFF-OFF-OFF-OFF-OFF-OFF-OFF-OFF OFF-OFF-OFF-OFF ON –OFF-OFF-OFF ON –ON -OFF-OFF-ON -OFF-ON –ON -OFF OFF-ON –ON –ON OFF-ON –ON –ON –ON –ON –ON –ON -ON ON –ON –ON –ON... - Page 7 Speed mode Defines the ASTEL protocol communication baud rate. Value FUNCTION LOW speed – 1200 bps MID speed – 2400 bps HIGH speed – 4800 bps Number of addressable lights This defines how the OUT is acting. There are two basic modes: -non addressable –...
-
Page 8: Appearance
Programming the light address The set up procedure: 1. Connect the light to the DMX512 interface LXU01 2. Connect the light to the power supply 3. Switch-on the light – the light must light! 4. Switch-off the light – the light must NOT light! 5. -
Page 9: Warranty
WARRANTY 1. The equipment manufactured by ASTEL d.o.o. is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period. -
Page 10: Declaration Of Conformity
Manufacturer's Address: Dutovlje 138 6221 Dutovlje Slovenija declares that the products Item, Product Name and Model Number: 1. DMX512 Interface LXU01 conform to the following Product Specifications: EMC: EN 55103-1:2009+A1:2012 Safety: EN 62368-1:2014 Supplementary Information: The products herewith comply with the requirements of the following Directives and carry the CE-... - Page 12 ASTEL d.o.o., Dutovlje 138, 6221 Dutovlje, Slovenia Tel: +386 5 7310771, +386 5 7310772 Fax:+386 5 7310789 info@astel-lighting.com E-mail: www.astel-lighting.com Web:...
